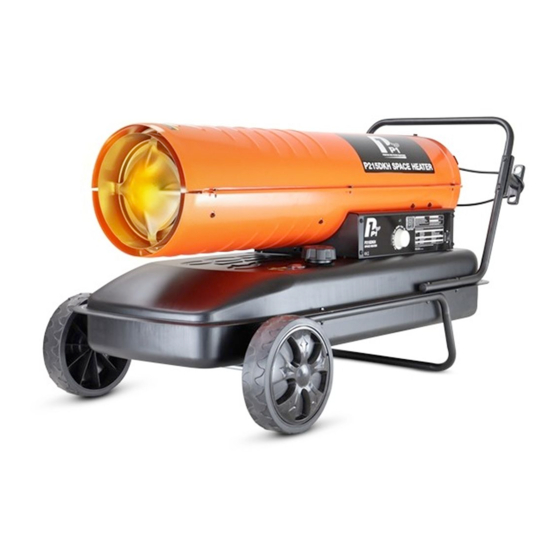

P70DKH, P125DKH, P215DKH

Diesel (Kerosene) Forced Air Heater

User Manual

FOR YOUR SAFETY

You must read and understand

this manual before use.

Keep this manual for future

reference.

Table of Contents

Need help?

Do you have a question about the P70DKH and is the answer not in the manual?

Questions and answers

Summary of Contents for P1 P70DKH

Page 1 P70DKH, P125DKH, P215DKH Diesel (Kerosene) Forced Air Heater User Manual FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
Page 3: Table Of Contents
Contents Contents Introduction............4 Safety Information........5-17 Features.............18-19 Unboxing............20 Assembly............21-23 Operation............24-25 Starting Procedure...........26 Stopping Procedure.........27 Storage............28-29 Maintenance..........30-35 Wiring Diagrams..........36 Troubleshooting..........37 Technical Data..........38-39 Recycling & Disposal........40 Useful Information..........41 Contact Us............42 Declaration Of Conformity.......43...
Page 4: Introduction
USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by P1 Power Equipment and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
Page 5: Safety Information
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment.
Page 6 Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury.
Page 7 Safety Information • Always keep hands and feet away from all moving parts during operation. Moving parts can cut or crush body parts. • Always keep hands and feet away from all pinch points. • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.
Page 8 Safety Information Inspect Your Machine (Continued) • Avoid accidental starting. Be sure the machine is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with its switch on invites accidents. •...
Page 9 WARNING! Risk on indoor air pollution! • Use this heater only in well ventilated areas. Provide at least a three square foot (2800sq cm) opening of outside air for every 29kW/hr or heater rating. Minimum clearance from combustibles: P70DKH P125DKH P215DKH 125cm 125cm...
Page 10 Safety Information Electrical Safety WARNING! It is the responsibility of the owner to check this electrical product before use to ensure it is safe. You must inspect power cables, plugs, sockets, etc for signs of wear or damage. You must ensure this risk of electric shock is minimised by the installation of appropriate safety devices.
Page 11 Safety Information Carbon Monoxide DANGER! Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY use outside and far away from windows, doors and vents.
Page 12 Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. General Safety General Safety • Do not smoke each time fuel is handled. •...
Page 13 Safety Information Fueling / De-Fueling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
Page 14 Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form. Should you come in to contact with electrolyte you should;...
Page 15 Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.
Page 16 Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
Page 17 Safety Information General Safety IMPORTANT! Read and understand all of the directions in this manual before assembling, starting, or servicing the heater. Improper use of this heater can cause serious injury. Keep manual for future reference. DANGER! NOT FOR USE IN NON-ADEQUATELY VENTILATED ENCLOSED AREAS. WARNING! Fire, burn, inhalation and explosion hazard.
Page 18: Features
Features Space Heater Features (P70DKH) Hot Air Outlet Upper Shell Handle Lower Shell Fan Guard Pressure Gauge Side Cover Lamp Fuel Gauge Thermostat Knob Fuel Cap Power Cord Power/Reset Switch Fuel Tank 19 18...
Page 19 Features Space Heater Features (P125DKH & P215DKH) Hot Air Outlet Upper Shell Digital Temperature Display Rear Handle Fan Guard Lower Shell Fuel Gauge Pressure Gauge Lamp Fuel Tank Side Drain Plug Cover Thermostat Knob Power Cord Power/Reset Switch Wheel Support Frame...
Page 20: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact P1 Power Equipment immediately. You must keep the packaging material in case the machine needs to be returned or repaired.
Page 21: Assembly
• Cotter Pins & Washers • Cotter Pins & Washers Frame Component Handle Wheels Hardware Cotter Pins Screws and Washers Wheel Caps Nuts (P70DKH) Rear Handle Axle Wheel Support Frame NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE.
Page 22 There is also a service record so you can keep track of your machine service dates. P70DKH ASSEMBLY HANDLE ASSEMBLY Tools required : Medium Philips screwdriver.
Page 23 Assembly P125DKH & P215DKH ASSEMBLY FRAME AND WHEEL ASSEMBLY Tools required : Medium Philips screwdriver, 5/16’ open end or adjustable wrench and needle nose pliers. 1. Slide axle through holes in wheel support frame. 2. Slide wheels onto each axle, being sure that the valve stem (if pneumatic) is to the outside. 3.
Page 24: Operation
Operation Diesel (1-K Kerosene) For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used, 1-K kerosene has been refined to virtually eliminate contaminants, such as sulfur. Which can cause a rotten egg odour during the operation of the heater. However, #1 or #2 fuel oil - Diesel may also be used if 1-K kerosene is not available.
Page 25 Operation Electrical System Protection The heater’s electrical system is protected by a circuit breaker that protects the system components from damage. If the heater fails, check the fuse first, and replace if necessary. Flame Sensor The heater uses a photocell to see the flame in the combustion chamber. Should the flame extin- guish, the sensor will stop electrical current and the heater will shut off.
Page 26: Starting Procedure
Also check the power source to be sure that the proper voltage is being provided to the heater. Lamp Room Temp. Display (Except P70DKH) Power Switch Thermostat Control Knob NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE.
Page 27: Stopping Procedure
Stopping procedure To Stop The Heater: Simply turn the power switch to “OFF” position and unplug the power cord. To Restart The Heater: 1. Wait 10 seconds after shutting off the heater. 2. Turn the power switch to “ON” position. 3.
Page 28: Storage
Storage Checking Your Machine When checking your machine, we recommend you: • Check for worn or damaged parts • Make sure all nuts, screws and bolts are tight • Make sure all warning stickers are in place and not damaged If there are worn or damaged parts, never use the machine.
Page 29 Storage Long Term Storage Drain Fuel Tank 1. For P70DKH, drain fuel through the fuel cap opening using an approved siphon. 2. For P125DKH and P215DKH models, drain fuel through the drain plug at the bottom of the fuel tank.
Page 30: Maintenance
Maintenance Maintenance WARNING! Never service heater while it is plugged in or while hot! Use only original equipment replacement parts. The use of alternate or third party components can cause unsafe operating conditions, and will void your warranty. We suggest following a maintenance schedule as follows: Fuel / Fuel Tank Flush every 200 hours of operation or as needed.
Page 31 Maintenance Fan Blades Blades should be cleaned at least once per heating season, depending on condition. Remove all accumulated dust and dirt with a damp cloth, taking care not to bend any of the fan blades. be sure fan blades are dry before re-starting the heater. For fan removal, see below. Set Screw Motor Shaft Fan Blade...
Page 32 Maintenance Nozzles Nozzles Nozzles should be cleaned or replaced at least once per heating season. Contaminated fuel could make this necessary immediately. To clean dirt from the nozzle, blow compressed air through nozzle front, it may be necessary to soak nozzle in clean diesel (1-K kerosene) to help loosen any particles. Burner Head Screw Spark Plug...
Page 33 Use a cotton swab dipped in water or alcohol to clean the lens of the photocell. Note the proper photocell position as noted in the diagrams. Photocell Photocell Lens Photocell Wire Installing Photocell: Circuit Board 1. Incorrect 2. Correct P70DKH Only...
Page 34 Maintenance Fuel Filter Fuel Filter The fuel filter should be cleaned at least twice per heating season by rinsing it in clean diesel (1-K kerosene). Contaminated fuel could make this necessary immediately. NOTE: To remove the fuel filter, please draw out the rubber plug directly. Use of diesel may re- quire additional maintenance.
Page 35 Pump Pressure Adjustment While heater is operating, turn relief valve clockwise to increase. Counter-clockwise to decrease. Use flat blade screw driver to turn valve. Correct pump pressure as follows: Model Pump Pressure (Kpa/Psi) P70DKH 31.0/4.5 P125DKH 38.0/5.5 P215DKH 52.0/7.5 For best measurement of pressure, test with full tank of fuel. Optimum pressure occurs when the nose cone is cherry red and there are no extending flames from the heater.
Page 36: Wiring Diagrams
Wiring Diagrams P70DKH P125DKH & P215DKH...
Page 37: Troubleshooting
Troubleshooting Problem Possible Cause Solution Heater fires, but main 1. Incorrect pump pressure. 1. Adjust pump pressure. PCB shuts heater off 2. Dirty input output or lint filter. 2. Clean/replace air filter. after a short period of 3. Dirty fuel filter. 3.
Page 38: Technical Data
Technical Data Specifications Model P70DKH P125DKH P215DKH Heat Output (kW) Fuel Consumption (L/Hr) Fuel Tank Capacity (L) Fuel Diesel or Diesel or Diesel or Kerosene Kerosene Kerosene Max. Outlet Air Temperature 393°C 404°C 516°C Pump Pressure (Kpa) Power Supply (V/Hz/A)
Page 39 Technical Data Product Dimensions P70DKH P125DKH P215DKH Length : 77cm Length : 105cm Length : 120cm Width : 39.5cm Width : 54.2cm Width : 60cm Height : 29cm Height : 62cm Height : 62cm...
Page 40: Recycling & Disposal
Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.
Page 41: Useful Information
Useful Information Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the P1 Power Equipment website: www.p1pe.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance.
Page 42: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@genpower.co.uk Online Live Chat Go to www.p1pe.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Page 43: Declaration Of Conformity
Declaration Of Conformity...
Page 44 P1PE - Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire SA72 4RW...
