PETROL SWEEPER
HYSW1000
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYSW1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai power products HYSW1000

  • Page 1 PETROL SWEEPER HYSW1000 Instruction Manual...
  • Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.

  • Page 3: Table Of Contents

    Contents Safety Information.....4-19 Maintenance......41-46 Cleaning............41 Understand Your Machine.......4 Transportation..........41 Personal Safety..........5 Storage............42-43 Inspect Your Machine........6 Air Filter............44 Work Area............7 Rotary Brush Gear Drive........44 During Use............8-9 Spark Plug.............45 Engine Safety..........10 Changing / Draining Oil........46 Carbon Monoxide...........11 Fuel And Carburetor........46 Fuel Safety..........12-13 Batteries............14 Troubleshooting......47 Electrical Safety..........15...

  • Page 4: Safety Information

    Safety Information Safety No list of safety guidelines can be complete. Every environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor work results.

  • Page 5: Personal Safety

    Safety Information Personal Safety • WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator. • Keep children, pets, and other people not using the unit away from the work area (at least 15m).

  • Page 6: Inspect Your Machine

    Safety Information Inspect Your Machine • Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened. • You must check the general condition of the machine before use. •...

  • Page 7: Work Area

    Safety Information Work Area • Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the engine or machine (branches, stones, wire, toys, etc). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard.

  • Page 8: During Use

    Safety Information During Use • Always hold the unit with both hands when operating. Keep a firm grip on the handlebars. Be aware that the machine may unexpectedly bounce upward or jump forward if the machine should strike buried obstacles such as large rocks or roots. •...
  • Page 9 Safety Information • Never attempt to move the machine in any way other than intended for normal use while the engine is running. • Reduce the throttle during engine shutdown and close the fuel valve. • Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed or exposed.

  • Page 10: Engine Safety

    Safety Information Engine Safety • This machine is equipped with an internal combustion engine. Do not use on, or near, forest-covered or brush-covered land unless the exhaust system is equipped with a spark arrester meeting applicable local, state, or federal laws. •...

  • Page 11: Carbon Monoxide

    Safety Information Carbon Monoxide DANGER! Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY use outside and far away from windows, doors and vents.

  • Page 12: Fuel Safety

    Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. General Safety General Safety • Do not smoke each time fuel is handled. •...
  • Page 13 Safety Information Fueling / De-Fueling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.

  • Page 14: Batteries

    Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form. Should you come in to contact with electrolyte you should;...

  • Page 15: Electrical Safety

    Safety Information Electrical Safety (Where Applicable) DANGER! ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;...

  • Page 16: Vibrations

    Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.

  • Page 17: Personal Protective Equipment

    Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g.

  • Page 18: Intended Use

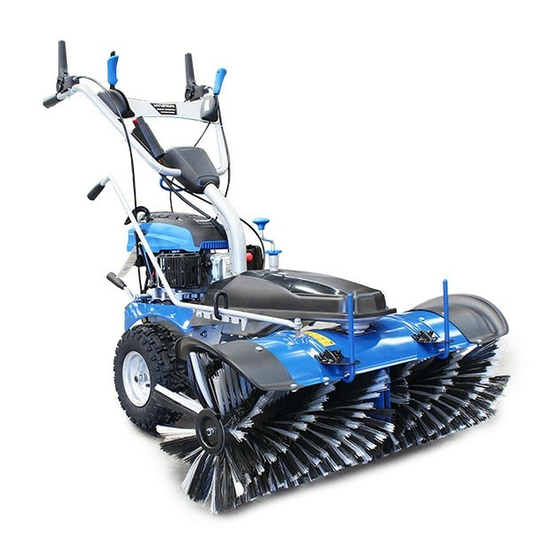

    Safety Information Intended Use The HYSW1000 is a petrol powered sweeper from HYUNDAI. The HYSW1000 has a working width of 1M and is powered by a 173cc engine. The sweeper is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly.

  • Page 19: Symbols On The Machine

    Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment.

  • Page 20: Features

    Features HYSW1000 Features www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...
  • Page 21 Features HYSW1000 Features Drive Clutch Lever Brush Speed Adjustment Lever Brush Working Clutch Lever Engine Speed Adjustment & Stop Lever Electric Push Button Start Handle Height Adjustment Lever Brush Direction Adjustment Lever Brush Height Adjustment Lever Forward / Reverse Shift Lever...

  • Page 22: Unboxing

    Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired.

  • Page 23: Assembly

    Assembly Assembly Safety CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. We always advise reading the manual in full before operation. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death.

  • Page 24: Attach The Handlebar

    Assembly Step 1 : Attach Handle Bar Attach the handle to the handle fixing plate on the sweeper using the nuts provided. Handle Handle Fixing Plate aftersales@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk 01646 687 880...

  • Page 25: Attach Brush Steering Lever

    Assembly Step 2 : Attach Brush Steering Lever Attach the brush steering lever to the front of the machine. Brush Steering Lever Spring Washer aftersales@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk 01646 687 880...

  • Page 26: Install Shift Lever

    Assembly Step 3 : Install Shift Lever Install the shift lever to the rear of the sweeper. NOTE: You should install the shift lever into position ‘1’ for new machines. After 100 hours or if as you become more comfortable with the machine speed, you can adjust the lever to position ‘2’...

  • Page 27: Attach Brush

    Assembly Step 4 : Attach Brush Slide the brush assembly over the drive shaft on either side of the sweeper and locate the drive pin into the cut out on the brush shaft. Place the washer and nut over the end of the drive shaft and tighten securely. www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...

  • Page 28: Preparation

    Preparation Adding Oil Oil Type : SAE 30 or 15w40 Engine Oil Oil Capacity : 600ml NOTE - The machine is delivered without oil in the engine. All machines are tested and inspected so there may be some residual oil left in the machine so please fill with caution. Place the sweeper on a flat surface.

  • Page 29: Adding Fuel

    Preparation Adding Fuel Make sure you read the fuel safety before handling fuel. Fuel Type : Fresh Straight Unleaded Petrol Fuel Capacity : 1L NOTE - The machine is delivered without petrol. All machines are tested and inspected so there may be some residual petrol left in the machine so please fill with caution.

  • Page 30: Charging The Battery

    Preparation Charging The Battery NOTE : Charging time is 5 hours. For electric start models, the battery must be charged before first use and after every 10 uses. Connect the charging plug to the battery using the charging port located at the back of the sweeper.

  • Page 31: Before Each Use

    Preparation Before Each Use YOU MUST read and understand the full safety instruction manual before starting the machine. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area.

  • Page 32: Operation

    Operation Handle Height Adjustment Adjust the handles to one of 3 different heights to find a comfortable operating height. Height Adjustment Handle Brush Height Adjustment To adjust the brush height, undo the locking ring by turning anti-clockwise. Turn the brush height adjuster up or down depending on the brush height you require. Once the desired height has been reached, retighten the locking ring to lock the brush height in to place.

  • Page 33: Brush Angle Adjustment

    Operation Brush Angle Adjustment To change the angle of the brush, push the brush direction adjustment lever down. See image 1. Turn the brush direction lever to one of the 5 pre-set angles. Lift the angle adjustment lever back up to lock the brush angle into place. Brush Activation To activate the brush, press down on the brush working clutch lever on the left handlebar.

  • Page 34: Brush Speed Adjustment

    Operation Brush Speed Adjustment Press down the button on the brush speed adjustment lever and move the lever forwards or backwards to increase or decrease the brush speed. Once the desired speed has been selected, release the button. Brush Speed Adjustment Lever www.hyundaipowerproducts.co.uk...

  • Page 35: Drive

    Operation Drive NOTE : ALWAYS release the drive clutch lever when selecting forward or reverse gears. Adjusting the lever while the sweeper is moving can damage the gearbox of the sweeper, which will not be covered by warranty. You should install the shift lever into position ‘1’ for new machines. After 100 hours or if as you become more comfortable with the machine speed, you can adjust the lever to position ‘2’...

  • Page 36: Starting / Stopping

    Starting Procedure Electric Start For cold start, press the primer bulb 5 to 6 times. You do not need to do this for warm start. See image 1. Push the engine speed adjustment lever to the ‘CHOKE or COLD START’ position. See image 2.

  • Page 37: Recoil Start

    Starting Procedure Recoil Start For cold start, press the primer bulb 5 to 6 times. You do not need to do this for warm start. See image 1. Push the engine speed adjustment lever to the ‘CHOKE or COLD START’ position. See image 2.

  • Page 38: Stopping

    Stopping Procedure CAUTION - The engine and exhaust will remain hot for a while after use. Ensure the engine and exhaust has cooled before carrying out any maintenance, refuelling or storage. Stopping Release the brush and drive clutch lever. Allow the engine to idle for 20 seconds. Move the engine speed adjustment lever to the ‘STOP’...

  • Page 39: Maintenance

    Maintenance Maintenance Safety IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to stop the engine, disconnect the spark plug cable, wait for the machine to cool and read the relevant instructions. You need to wear proper clothing and protective gloves whenever your hands are at risk.
  • Page 40 Maintenance Maintnenance Schedule Procedure Before First Month Every 3 Every 6 Every 12 Each Use Or 20 Hours Months Or Months Or Months Of 50 Hours 100 Hours 300 Hours Engine Oil Check Replace Replace Gear oil Check Replace Replace Air Filter Check Clean...

  • Page 41: Cleaning

    Maintenance Cleaning CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. NOTE Engine must be switched off and spark plug lead disconnected. • You must remove grass and mud from the machine to prevent it from drying. This will cause problems the next time the machine is used.

  • Page 42: Storage

    Maintenance Storage Where To Store Store in a cool, dry place away from sources of ignition and varying changes in temperature. Store on a flat and level surface with all wheels on the ground. DO NOT stack other items on top of the machine when in storage. Store the machine in a safe place, out of the reach of children or anyone who is not familiar with operation.
  • Page 43 Maintenance Long Term Storage If storing the machine for a period of 30 days or more, you must follow proper storage and winterisation guidelines to avoid any possible issues with the machine. Incorrect storage can lead to possible fueling or engine issues that will not be covered by the warranty. Allow the engine to fully cool down.

  • Page 44: Air Filter

    Maintenance Air Filter CAUTION - A dirty air filter will restrict the air flow to the carburettor, which will reduce engine efficiency. When using the machine in very dusty areas you must clean or replace the air filter more often. Never operate the machine without the air filter being fitted it can cause damage to the engine which is not covered by warranty.

  • Page 45: Spark Plug

    Maintenance Spark Plug For good performance, the spark plug must be properly gapped and free of deposits. You MUST allow the engine to cool down before carrying out any maintenance. Always replace with the same model spark plug as fitted. To check spark plug, remove spark plug cap and remove spark plug.

  • Page 46: Changing / Draining Oil

    Maintenance Changing / Draining Oil To reduce fire hazards, check there is no oil and/or fuel leaks on a regular basis. It is highly recommended to change the engine oil every 100 hours or 12 months. This will ensure the machine will function properly over time. There are different ways you can empty the oil: •...

  • Page 47: Troubleshooting

    Troubleshooting Possible Cause Problem Possible Solution Incorrect speed control lever Adjust speed control lever. adjustment. Fill fuel tank. Fuel tank is empty. Drain carburetor float bowl, refill with Engine does fresh unleaded petrol.. Stale petrol. not start Clean or replace air filter. Air filter element is dirty.

  • Page 48: Technical Data

    Technical Data Specifications Model HYSW1000 Engine Type HYUNDAI IC175VE 4-Stroke Engine Size 173cc Rated Power 3.6kW Max. Engine Speed 2800rpm Fuel Tank Capacity & Fuel Type 1L, Unleaded Petrol Oil Capacity & Oil Type 600ml, SAE 30 or 15W40 Start Method Electric &...

  • Page 49: Spare Parts

    Spare Parts Ordering Spare Parts Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardise the safety of the machine, may cause accidents or injuries for which the manufacturer is under no circumstance liable or responsible. Find the part you are looking for in the drawings.
  • Page 50 Spare Parts Drawing B Drawing C Drawing D aftersales@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk 01646 687 880...
  • Page 51 Spare Parts Drawing E Drawing F aftersales@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk 01646 687 880...
  • Page 52 Spare Parts Drawing G www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...
  • Page 53 Spare Parts Drawing H www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...
  • Page 54 Spare Parts Drawing A Drawing Number Spare Part Name Part Number HYSW1000-A1 Handle Cover 1102001 HYSW1000-A2 Clutch Handle 1102002 HYSW1000-A3 1102003 HYSW1000-A4 1290064 HYSW1000-A5 Cable Holder 1102005 HYSW1000-A6 Handle Base 1102006 HYSW1000-A7 Bolt 1137025 HYSW1000-A8 Fixing Plate 1102008 HYSW1000-A9 Screw...
  • Page 55 Spare Parts Drawing B Drawing Number Spare Part Name Part Number HYSW1000-B1 Button 1102024 HYSW1000-B2 Spring 1102025 HYSW1000-B3 Right Cover 1102026 HYSW1000-B4 Screw 1149040 HYSW1000-B5 Screw 1135032 HYSW1000-B6 Left Cover 1102029 HYSW1000-B7 Right Cover 1102030 HYSW1000-B8 Screw 1102031 HYSW1000-B9 Adjusted Speed Handle for...
  • Page 56 Spare Parts Drawing D Drawing Number Spare Part Name Part Number HYSW1000-D1 Screw 1102059 HYSW1000-D2 Lower Cover 1102060 HYSW1000-D3 Bolt 1102061 HYSW1000-D4 Position-limiting Base 1102062 HYSW1000-D5 Handle 1102063 HYSW1000-D6 Bolt 1143089 HYSW1000-D7 Plate 1102065 HYSW1000-D8 1290012 HYSW1000-D9 1290011 HYSW1000-D10 Upper Cover...
  • Page 57 Spare Parts Drawing E Drawing Number Spare Part Name Part Number HYSW1000-E1 Engine 1102070 HYSW1000-E2 Flat Key 1149047 HYSW1000-E3 Belt Wheel 1102072 HYSW1000-E4 Gear Plate 1102073 HYSW1000-E5 Bush 1102074 HYSW1000-E6 Screw 1102075 HYSW1000-E7 Bush 1102076 HYSW1000-E8 Cable Sleeve 1149067 HYSW1000-E9...
  • Page 58 Spare Parts Drawing F Drawing Number Spare Part Name Part Number HYSW1000-F1 Adjusted Height Handle 1102109 HYSW1000-F2 Adjusted Height Rod 1102110 HYSW1000-F3 1102111 HYSW1000-F4 1102112 HYSW1000-F5 Bolt 1102113 HYSW1000-F6 Knob 1102114 HYSW1000-F7 Belt Cover 1102115 HYSW1000-F8 Bolt 1290077 HYSW1000-F9 1102117...
  • Page 59 Spare Parts Drawing G Drawing Number Spare Part Name Part Number HYSW1000-G1 Handle Cover 1102149 HYSW1000-G2 Bolt 1143107 HYSW1000-G3 Handle 1102151 HYSW1000-G4 Shift Lever 1102152 HYSW1000-G5 Bolt 1102153 HYSW1000-G6 Plate 1102154 HYSW1000-G7 1102155 HYSW1000-G8 Cable Sleeve 1102156 HYSW1000-G9 Bolt 1102157...
  • Page 60 Spare Parts Drawing G (Continued) Drawing Number Spare Part Name Part Number HYSW1000-G41 Wire 1102189 HYSW1000-G42 Screw 1102190 HYSW1000-G43 1102191 HYSW1000-G44 lower cover 1102192 HYSW1000-G45 Battery 1149090 HYSW1000-G46 Wire 1102194 HYSW1000-G47 Wire 1102195 HYSW1000-G48 Bolt 1102196 HYSW1000-G49 Lock Ring 1102197...
  • Page 61 Spare Parts Drawing H Drawing Number Spare Part Name Part Number HYSW1000-H1 Handle Cover 1102204 HYSW1000-H2 Bolt 1102205 HYSW1000-H3 Handle 1102206 HYSW1000-H4 Steering Lever 1102207 HYSW1000-H5 Bolt 1102208 HYSW1000-H6 1102209 HYSW1000-H7 1102210 HYSW1000-H8 Right Cover 1102211 HYSW1000-H9 Brush Guard 1102212...

  • Page 62: Recycling And Disposal

    Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 63: Declaration Of Conformity

    Of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for the use outdoors. Equipment Category: Power Equipment Product Name/Model: HYSW1000 Type/Serial No: Petrol Brush Sweeper Net installed power: 3.6kw...

  • Page 64: Useful Information

    Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated.

  • Page 65: Our Product Range

    Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps...

  • Page 66: Product Information

    Product Information Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. The model number and serial number can be found on the grey specification sticker on your machine.

  • Page 67: Contact Us

    Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
  • Page 68 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
