Patchwork Technology BlackBox Marine Manual

Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

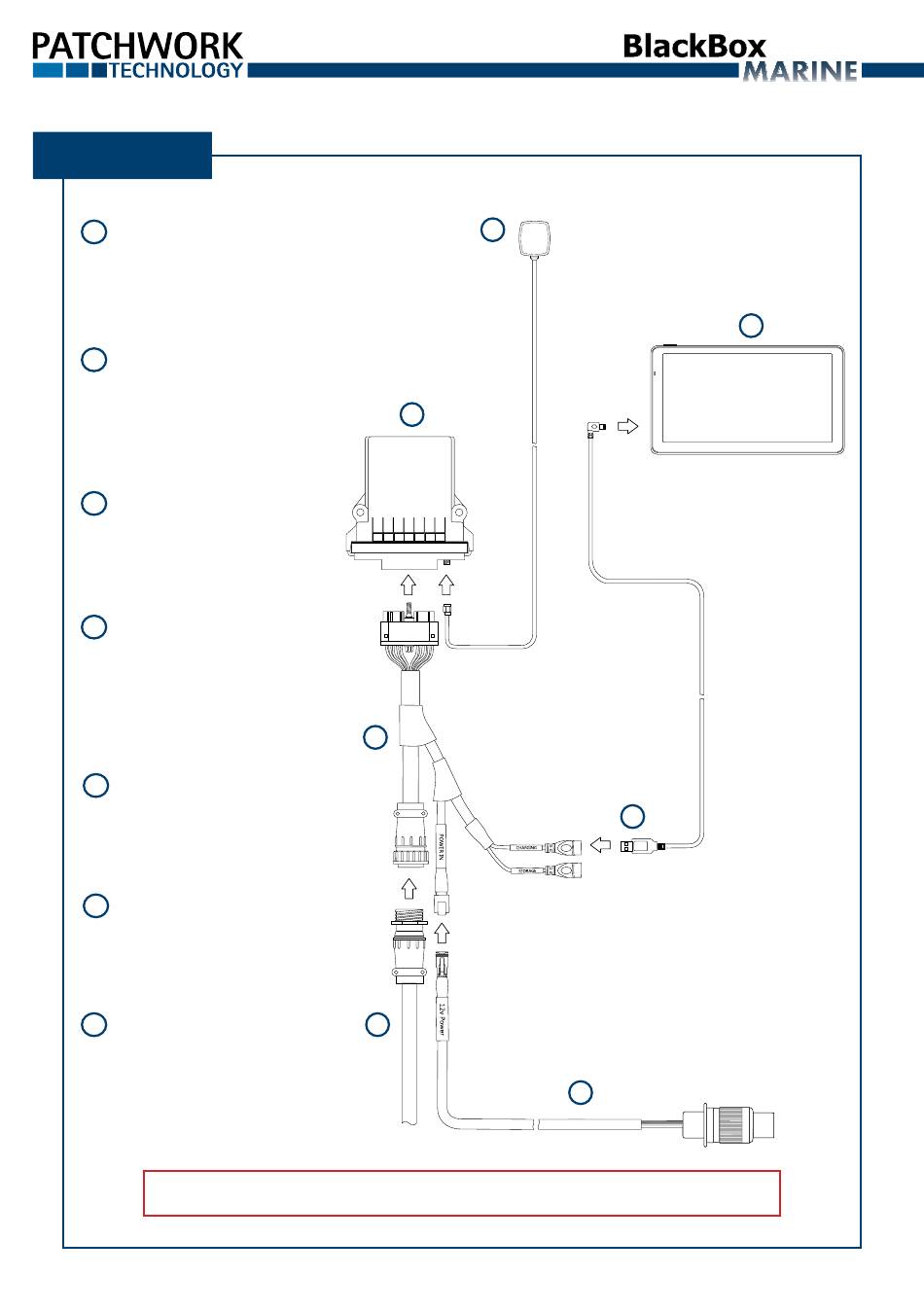

Installation
Antenna
1
Fit centrally on the roof.
Cable completely uncoiled.
2
Android Tablet*
Mount to the windscreen
using supplied suction
mount.*
Marine Unit
3
See 'Mounting Positions'
diagram on next page.
4
Interface Harness
Insert into connector and
fasten bolt with a ¼ inch
socket (Be sure not to over
tighten).
5
USB Charge cable
Connect to 'CHARGING'.
Always keep connected.
6
Supplied Cable for
Controller
Connect to 16 way socket.
7
Power cable
To power supply.
Do not connect until all
connections are made!
*Important! Remove from windscreen when not in use.
PWdoc0084 v1.1
Guidance & VRT Guide
3
4
6
1
5
7
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlackBox Marine and is the answer not in the manual?

Questions and answers

Related Manuals for Patchwork Technology BlackBox Marine

Summary of Contents for Patchwork Technology BlackBox Marine

  • Page 1 Guidance & VRT Guide Installation Antenna Fit centrally on the roof. Cable completely uncoiled. Android Tablet* Mount to the windscreen using supplied suction mount.* Marine Unit See ‘Mounting Positions’ diagram on next page. Interface Harness Insert into connector and fasten bolt with a ¼ inch socket (Be sure not to over tighten).

  • Page 2: Mounting Positions

    Mounting Positions General Setup Configure Tilt Setup > Position Setup > Tilt Setup Set the Antenna Height. Press Tilt and Enable. Set Orientation as per Position on level ground. ‘Mounting Positions’ diagram. Press Zero Tilt. Job Recording Setup > Recording Setup Press Recording and Enable.

  • Page 3: Work Mode Setup

    Work Mode Setup Setup > Work Mode Setup (Refer to Work Mode Setup Guide supplied with the cable) Select VRT and Select *NEW* Autoshutoff Select connected VRT Enter Width and select Controller. Master Switch Mode. Master Switch Mode Enter offsets as required. Switch –...
  • Page 4 Copying Application Plans to the Tablet Connect tablet Press ‘Turn on USB storage’. via USB to the PC. On the PC locate device in windows explorer and go to Internal Storage>BlackBox. If BBA format copy plans into the ‘bbafiles’ folder or Shape format into the ‘shapevrt’...

  • Page 5: Starting A Job

    Starting a Job Check before starting. Press Start Job. Press Farm and select Press VRT Job. Farm/Field/Plan name. Confirm Guidance Options. Enter default rate and OK. Tip! To start a job without a variable rate plan select ‘New Job’ in step 2. Job Screen Overview 1.
  • Page 6 Boundary Recording (Measuring Field Area) Important! Start a boundary recording at least 30 metres away from the corner of a field. Set the Offset Press. Drive around the field Press Start. back to the start point. Setting and Using a Guidance Line At the beginning of a run, move forward and press the screen.
  • Page 7 Using Variable Rate Plans Reset Zoom Ensure the Master Switch Status is ON. Zoom In Zoom Out Menu Work the field as normal and the system will automatically change the application rate. Using Spreader Control Drive around the headland Ensure the Master applying product.

  • Page 8: Pausing Jobs

    Pausing Jobs Press Pause Job. Press. Resuming Jobs Press Resume Job. Press Start Job. Highlight Job. Finishing a Job and Shutdown Press Shutdown > Yes and Press Finish Job. Press. disconnect from power.
