Summary of Contents for Bigfoot PLATINUM Series
- Page 1 PLATINUM PLATINUM PLATINUM PLATINUM SERIES SERIES SERIES SERIES INSTALLATION & OWNER’S MANUAL MOTOR HOME CENTRAL PUMP EDITION QUADRA MANUFACTURING BIGFOOT LEVELING SYSTEMS 305 US 131 South White Pigeon, MI 49099 800-752-9815 (PHONE) 269-483-9636 (FAX) BIGFOOTLEVELER.COM...

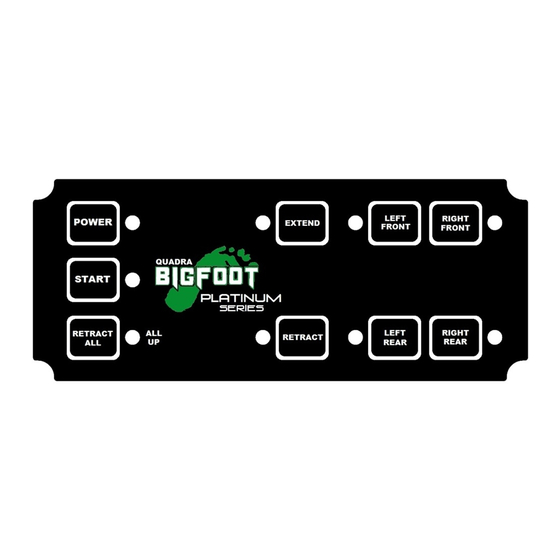

- Page 2 PLATINUM Series Control Panel Operation… Adjustment Buttons All Up Light Extend System: Press the Power Button (Red LED will come on constant). Press the Start Button (LED will come on until program is finished, pressing any button during operation will cancel program, Vehicle Ignition must be OFF).
- Page 3 Troubleshooting: All up light flashing: Enter “Retract Mode” by pressing Retract button then press & hold Adjustment buttons, may have to turn off/on again. If that didn’t work, could be lack of voltage (house battery) to run pump, or bad limit switch (if all jacks are up). Alarm: Vehicle ignition is on &...
- Page 4 Detailed 4pt Central Pump Installation Manual Set-up for OEM Installation with cylinder weld-on brackets previously attached (welded) to vehicle’s frame. Mounting the Cylinders Pre-assemble jack prior to hanging on previously mounted weld-on bracket. - Attach foot pad with ¾” thin jam nut using a 1 ”...
- Page 5 Mounting the Central Tank Assembly Tank Assembly will be pre-assembled & pre-wired direct from factory. - Mount the pump using a minimum of two 7/16” bolts, nuts & lock washers. - Plumbing is shown in Fig. 2 below, use 9/16” wrench and be careful not to under or over-tighten the hydraulic fittings.
- Page 6 Wiring the System Running the 14-pin wiring harness. - The harness has two ends with plugs; the “panel” end has a 14-pin connector & a 6- pin. This end will need to route to the control panel’s location (usually near front of vehicle near driver’s seat or in wall of cabinet near service door).
- Page 7 Final Extend Hose Installation & Bleeding the System During installation of the hydraulic lines, air is internally captured in the hose. Due to this, bleeding the air out of the system is necessary for the system to work properly. This process is done at the end of installation and requires two people and can be messy, so as a warning make sure you are wearing eye protection and have rags ready to use.
- Page 8 Warranty Guide Owner must activate warranty! Via Phone or Webiste OEM Platinum Central Pump 4pt Systems: 2 years parts and labor. Should the product be defective due to workmanship and/or material flaws, we will repair/replace the defective material. Core charges may be applied and refunded on certain components. Quadra is NOT responsible for: Freight on warranty parts.
