- Page 1 ECC230 AC – User Manual...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Precautions 2. Components of the machine 3. Setting up the machine 3.1 Filling the main tank for the first time 3.2 Refilling the main tank 3.3 Security Bubbler 4. Working with the machine 4.1 General use 4.3 Cleaning the air filter box 4.3 Working amperage 5. -
Page 3: Safety Precautions
1.Safety Precautions Read and follow these safety precautions to avoid hazards. Your ECC230 ACmachine do not store hydrogen, subsequently there is no fire hazard when used properly. However water electrolysis generates Hydrogen, a explosive gas, which means that you should never light a match or smoke near or in front of the end of the hose - the protection bubbler inside the machine could blow up! Be sure to wear goggles and rubber gloves and only use professional tools;... -
Page 4: Components Of The Machine

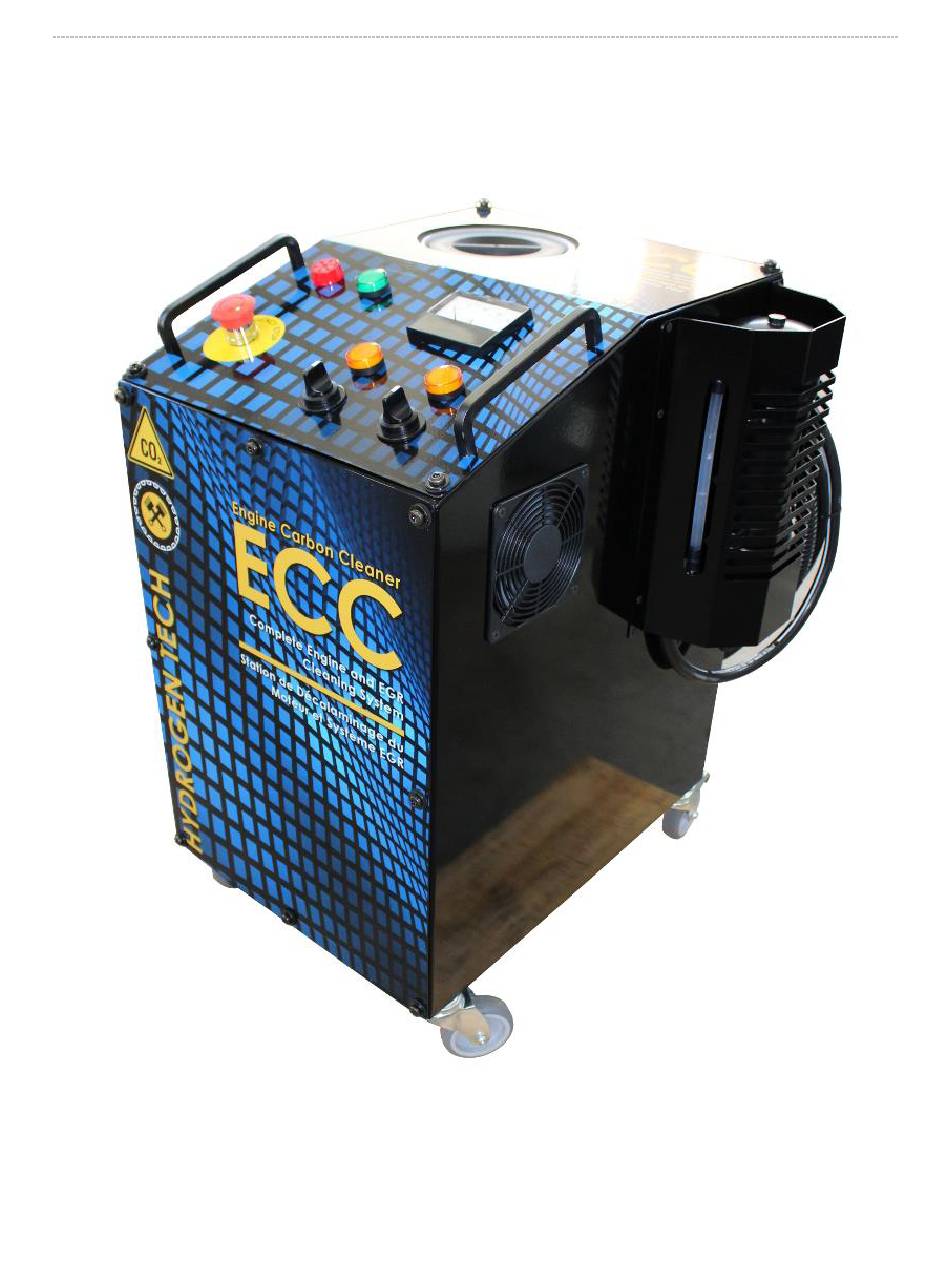

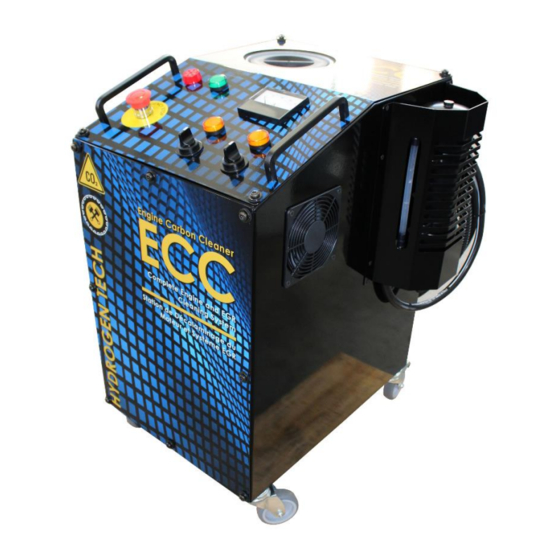

2. Components of the machine Water Tank Lid Water level lights Ammeter Emergency Switch Power Controls Security Bubbler Frontal Panel Ventilation Bubbler Cap Wheels Hydrogen Hose Power Cable AC Version - Electric Plug... -
Page 5: Setting Up The Machine
3.Setting up the machine 3.1 Filling the main tank for the first time Please follow these simple steps: 1. Use a plastic container to prepare the electrolyte solution first outside the machine. Be sure to wear goggles and rubber gloves for security reasons; 2. - Page 6 The bubbler is located laterally in the machine and serves two purposes: cleaning the Hydrogen gas and act as a safety barrier against a flame. If a flame reaches the bubbler and ignites the reduced hydrogen accumulated at the top of the bubbler but the water column will prevent the flame to reach the main tank where there is much more hydrogen accumulated.
-
Page 7: Working With The Machine
4.Working with the machine 4.1General use Please follow thesesimple steps for the general use of the Engine Carbon Cleaner: 1. Open the air filter box, remove filter element and clean the area inside in order to avoid dust particles from entering the engine;... - Page 8 The amperage and hydrogen production will depend on the electrolyte concentration (15 grs/liter of KOH). Please keep the machine working between 30A and 40A: a) If the amperage is higher than 40A please add more water to dilute the solution and reduce the amperage;...
-
Page 9: Diesel Cars And Dpf Filter Cleaning
5. Diesel Cars and DPF Filter Cleaning In modern diesel cars it´s always advisable to make the DPF filter diagnosis before the treatment,especially when the car drives only in towns and it is not possible to make the normal regeneration of the DPF. If the diesel car has already a problem with the diesel particulate filter (DPF), then it´s likely that the problem could get more severe with our treatment due to soot coming out of the engine and exhaust system. -
Page 10: Maintenance
5. Maintenance Regular Maintenance Depending on the weekly working hours, you should check the water level inside the water tank. If the level is too low, refill the tank with electrolyte solution to allow amperage to be at normal operational values. Winter Maintenance If temperatures drop below -4ºC then you should add 20-25% isopropyl alcohol to the water solution in order to avoid water from freezing, even with the more severe temperatures. -
Page 11: Technical Information
Technical Information Voltage: 230V AC Power: 1200 kW HHO Gas Output Max: 800 l/h Max. Pressure (kg/cm2): 0,2 Max. Water Consumption (L/h): 0,20 Water refilling: manual Water Tank Capacity: 20 liters Autonomy: 100 hours Dimensions - L x l x h (mm): 400 x 500 x 700 mm Weight: 35 kg Warranty: 24 months... -
Page 12: Ec Declaration Of Conformity
EC Declaration of Conformity...
