Release: version1.3
Date: 26-Aug-2019
CHENGDU HIZIMA TECHNOLOGY CO.,LTD
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST,
CHENGDU, SICHUAN, CHINA
People's Republic of China
Tel: (86) 28-87885966
Fax: (86) 28-87886166
Email: sales@hizima.com
D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.

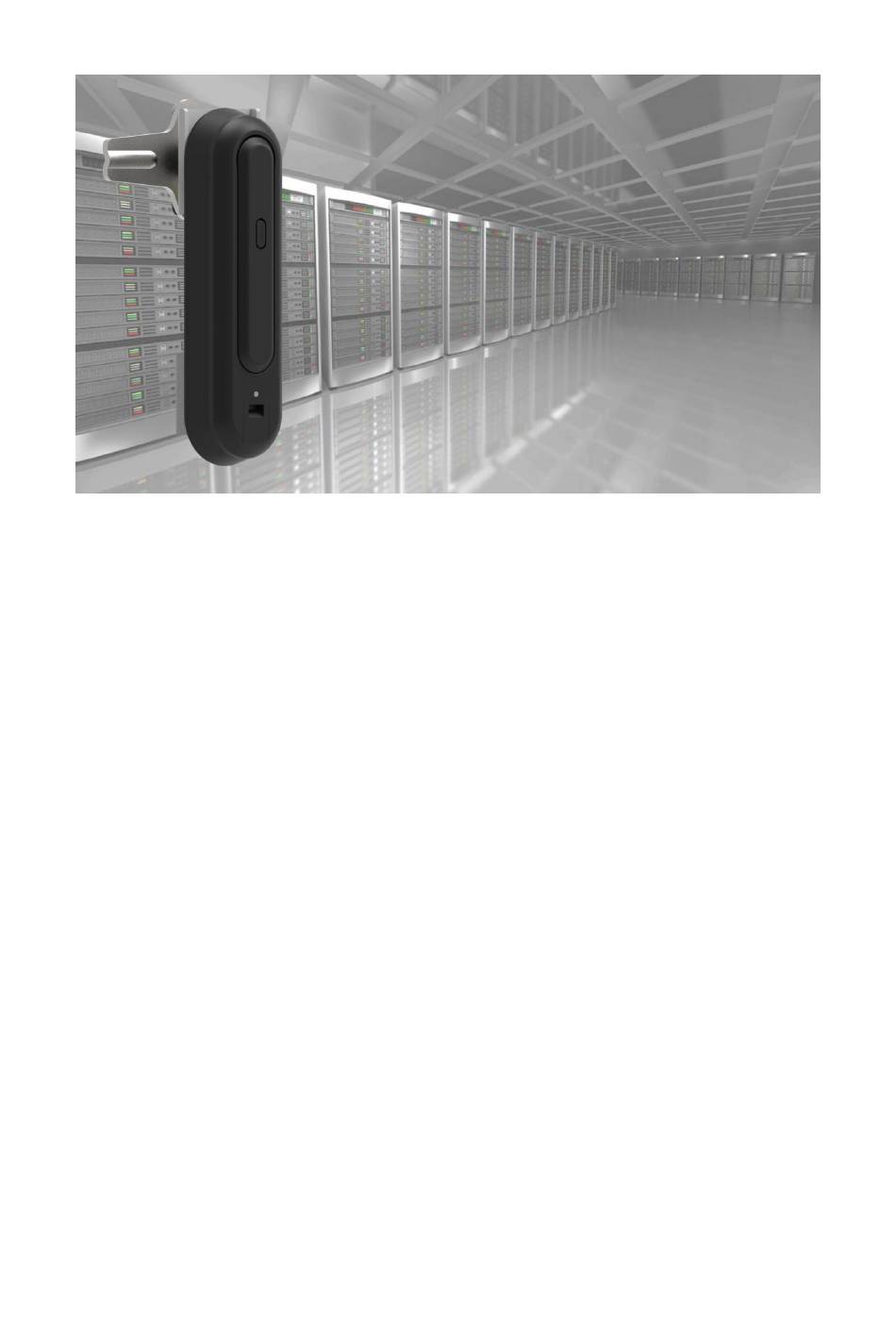

Smart Cabinet Lock
1 / 25
Smart Cabinet Lock version1.0
Advertisement
Table of Contents
Summary of Contents for Hizima ZMB-2BK
- Page 1 Smart Cabinet Lock version1.0 Smart Cabinet Lock Release: version1.3 Date: 26-Aug-2019 CHENGDU HIZIMA TECHNOLOGY CO.,LTD D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA People’s Republic of China Tel: (86) 28-87885966 Fax: (86) 28-87886166 Email: sales@hizima.com D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA.
- Page 2 The information in this document is subject to change without notice. In no event shall Hizima be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services;...
- Page 3 Smart Cabinet Lock version1.0 Document Description The words and graphs in the document are for description of HIZIMA products specification or features. Document Attributes Attribute Content Document topic Smart Cabinet Lock Data Sheet Document No. Last update Oct. 15th, 2018...
-
Page 4: Table Of Contents
Smart Cabinet Lock version1.0 Contact Product Overview ....................6 1.1. Brief introduction to Hizima dual channel smart cabinet lock......6 1.2. Key Features......................7 1.2.1. High Security....................7 1.2.2. Manageable....................7 1.2.3. High Generality.....................7 Workflow ......................8 1.3. Specification......................8 Composition......................8 3.1. - Page 5 Smart Cabinet Lock version1.0 Operation of unlock and lock ................21 5.1. Appearance diagram..................22 5.2. Unlock via smart key..................22 5.3. Unlocking via Bluetooth..................23 5.4. Restart........................23 Dos and don'ts....................... 23 Order information....................24 D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA. 5 / 25...
-
Page 6: Product Overview
The operation on App and Platform to obtain authorization is same as unlocking by key channel. ZMB-2BK is designed with guards against technical unlock. If the smart key lost, the lock cylinder don’t need to be changed, only need to disable the access authorization of the lost smart key from the central platform via APP. -
Page 7: Key Features
Smart Cabinet Lock version1.0 monitor the status of lock. If there is any anomaly, the acousto-optic indicators will alarm. Key Features 1.2. 1.2.1. High Security •Bidirectional encryption authentication security chip, no mutual opening rate, prevent technical unlock. •Acousto-optic alarms in abnormal condition. •Smart key cannot be duplicated. -
Page 8: Workflow
Smart Cabinet Lock version1.0 Workflow 1.3. 2. Specification Mode ZMB-2BK Input voltage DC 8V—50V（Bluetooth mode） Bluetooth BLE4.0 Battery CR123A disposablelithium battery (Bluetooth channel) Smart key Support Logs 1000 Working Current unlocking currency：<100mA Standby currency：<8mA Working environment Temperature：-30 ~ 65℃ Humidity： 5 ~ 90% Shaft force 30 N.m... -
Page 9: Cabinet Lock Body
Smart Cabinet Lock version1.0 The ZMB-2BK Smart Cabinet Lock consists of a cabinet lock body and a power supply box. Both are connected by cables. 3.1. Cabinet lock body It consists of the lock main body and parts. Different installation way needs different parts. -
Page 10: Dimensions
Smart Cabinet Lock version1.0 M5X16 Countersunk head cross screw GB819-85 Q235 Punch location paper template paper Adhensive strips Parts of original Sprocket box cabinet lock Parts of original Sprocket box fixing screw cabinet lock Cabinet door 3.1.2. Dimensions Dimension of standard lock installation and trepanning (without heighten frame): Dimension of installation and trepanning with heighten frame D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA. -
Page 11: Battery Box
Smart Cabinet Lock version1.0 3.2. Battery box It consists of battery box and cuboids magnet. It’s to provide power supply to the cabinet lock, by connecting with external DC power or installing disposable lithium battery, or use both at same time. It’s preferred to use external DC power. -
Page 12: Dimension Of Battery Box
Smart Cabinet Lock version1.0 battery is DC 3V. It’s recommended to use Panasonic CR123A. The battery box also equipped a reed switch to detect if the cabinet lock has been closed. 3.2.1. Dimension of battery box 3.2.2. Wiring Old Version socket function remark... -
Page 13: Installation
Smart Cabinet Lock version1.0 New Version Front of PCB Back of PCB socket function remark 50V. Note: left — Connect with DC positive electrodeand right Negative power in cabinet electrode , according to marks onPCB. Connect with the From left to right are power ground, power cabinet lock positive and door switch If the P1 socket is connected to the DC power supply of the cabinet, the switch... -
Page 14: Adjustment For Left Opening Door Or Right Opening Door
Smart Cabinet Lock version1.0 finished without problem, conduct the door opening and closing test to avoid the situation that the door cannot be opened due to wrong installation. Adjustment for left opening door or right opening door 4.1. Change the installation direction of the shaft limit block 3 to adapt to the left opening door or the right opening door. -
Page 15: Use The Punch Location Paper Template
Smart Cabinet Lock version1.0 4.3. Use the punch location paper template If use heighten frame installation way, use the punch location paper template 25 to punch the cabinet door will save time. The step is: 1) embed the punch location paper template 25, lock body 1, heighten frame 20 to the original hole of cabinet door 50 to determine the position.2)peal off the cover of adhensive strips 26, and stick the template on the cabinet door 50. - Page 16 Smart Cabinet Lock version1.0 Installation steps Insert the lock body1, 4 into the cabinet door50 from lock body rubber pad outside. Install Long fixing clamp plate14 on the lock body1, and tighten it with M5X20 Cross screw with pan head13. Install shaft washer5, Heighten washer A 6, Heighten washer B 12 on the lock body1 shaft in turn.For height adjustment, please refer to "...
-
Page 17: Sprocket Box Type Heighten Installation
Smart Cabinet Lock version1.0 4.4.2. Sprocket box type heighten installation Suitable for the old cabinets which are the sprocket box type. ( the corresponding accessories are not in the standard configuration.) Exploded Diagram Installation steps At the position that required to use heighten frame20on the cabinet door, punch6 Ф6mm round holes at the six bumps position that contacted with the cabinet door. -
Page 18: Steel Bolts Heighten Installation
Smart Cabinet Lock version1.0 frame rubber pad21 into the cabinet door50 from outside. Use Short fixing clamp plate A 22, Short fixing clamp plate B 23, to install on the lock body1, and tighten them with M5X16 Countersunk head cross screw and M5X20 Cross screw with pan head. -
Page 19: Exploded Diagram
Smart Cabinet Lock version1.0 Exploded Diagram Installation steps At the position that required to use heighten frame20on the cabinet door, punch6 Ф6mm round holes at the six bumps position that contacted with the cabinet door. Hole size please refer to"higher installation punch holes and size"... -
Page 20: Battery Box
Smart Cabinet Lock version1.0 4.5. Battery Box 4.5.1. Installation The magnet can be fixed on the door frame or other suitable position, and the battery box can be fixed by rivets and screw, or by foam gum (which should ensure long-term firm sticking). When the door is closed, the magnet should be aligned with the switch mark on the power box, and the distance is less than 5 mm. -
Page 21: Replacement Of Battery
Smart Cabinet Lock version1.0 battery power will rapidly decline. If this function is not used, the magnet should be fixed with tape at the reed mark on the battery box, and the installation of the battery box is not subject to the above restrictions. -

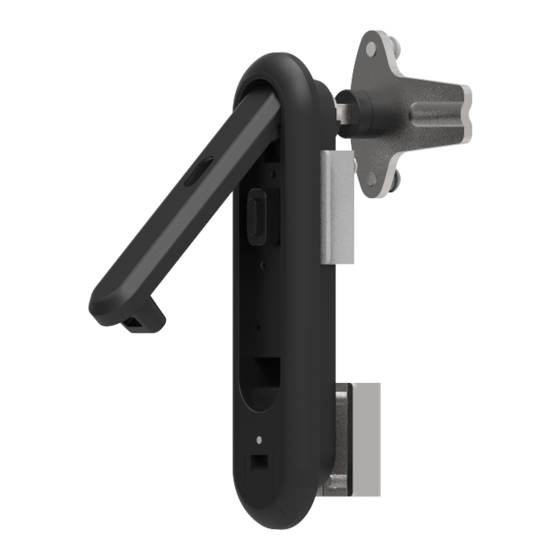

Page 22: Appearance Diagram
Smart Cabinet Lock version1.0 5.1. Appearance diagram 1、Bluetooth antenna 2、light indicator 3、key hole 4、handle 5、dust cover、6 smart key 、 Reset electrode 5.2. Configurable parameters This feature requires the software version greater than 0108. 5.2.1. Battery Parameters A. Battery mode: It has the lowest power consumption and is suitable for battery-only mode. The lock does not generate the lock record. -
Page 23: Unlocking Via Bluetooth
Smart Cabinet Lock version1.0 5.3. Unlock via smart key 1、Insert the key6 into the key hole3 of the dust cover5, press it down, move the dust cover5 down, and insert the key6 into the key hole3 completely. 2、According to different ways of unlocking, after the key lamp flickers (buzzer sounds), press the handle and hold for about 1 second. -
Page 24: Order Information
Any change or modification to the product not expressly approved by CHENGDU HIZIMA TECHNOLOGY CO.,LTD could void the user's authority to operate the device. - Page 25 Smart Cabinet Lock version1.0 uncontrolled environment.This device should be installed and operated with a minimum distance of 20cm between the device and your body. D2-2F, MOJU INDUSTRIAL PARK, #199, XIQU AVENUE, HI-TECH ZONE WEST, CHENGDU, SICHUAN, CHINA. 25 / 25...
