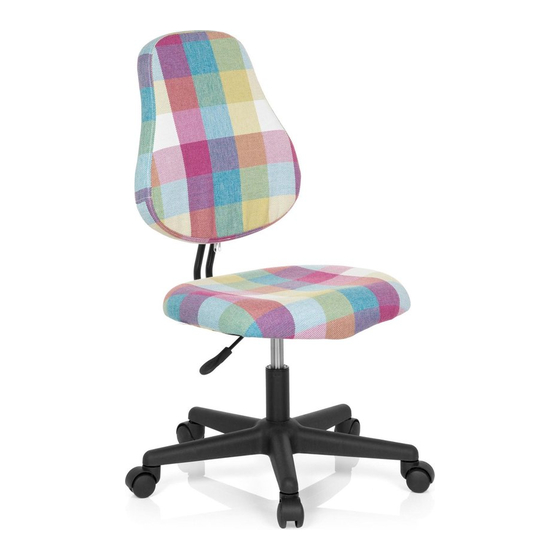

HJH office KIDDY SQUARE Assembly Instructions

HJH office KIDDY SQUARE Assembly Instructions

Advertisement

Quick Links

Aufbau
1 Drücken Sie je eine Stuhlrolle in die fünf
Öffnungen des Fußkreuzes.
2 Stecken Sie die Gasfeder mittig in das
Fußkreuz. Entfernen Sie (falls vorhanden)
vor dem Einbau die Schutzkappe vom Aus-
lösepin der Gasfeder. Diese lässt sich leicht
entfernen.
3 Befestigen Sie die Mechanik am Sitzteil.
4 Befestigen Sie die Abdeckung an der Rü-
ckenlehne.
5 Montieren Sie die Rückenlehne am Sitz-
teil.
6 Setzen Sie das Sitzteil auf die Gasdruckfeder.
Setzen Sie sich nun mehrmals auf den Stuhl,
damit die Verbindung zwischen Sitz, Gas-
feder und Fuß gefestigt wird. Anschließend
können Sie die Gasfeder bedienen und die
Stuhlhöhe individuell einstellen.
Sicherheitshinweis Gasfeder:
Gasfeder nie selbst zerlegen, einstechen oder
öffnen. Korpus steht unter Druck.
#
Bezeichnung
Stück
A
Rolle
5x
B
Schraube M6x25
2x
C
Schraube M6x20
4x
D
Schraube M6x16
4x
E
Mechanik
1x
F
Abdeckung
1x
G
Inbus
1x
Assembly
1 Insert the five castors into designated holes
at the bottom of the 5-star base.
2 Insert the gaslift into the center of the base.
If present, remove the plastic protective cap
from the gas lift.
3 Mount the mechanism onto the seat.
4 Fix the cover onto the backrest.
5 Mount the backrest onto the seat.
6 Place the seat onto the gaslift. Repeatedly sit
onto the chair, so that the connections bet-
ween the seat, gaslift and foot tighten. Now
you can adjust the chair to your individual
needs.
Caution Gaslift:
Never disassemble, puncture or open Gas spring.
Gas cylinder is under pressure.
#
Part
Count
A
Castor
5x
B
Screw M6x25
2x
C
Screw M6x20
4x
D
Screw M6x16
4x
E
Mechanism
1x
F
Cover
1x
G
Allen wrench
1x
KIDDY SQUARE
Aufbauanleitung
Assembly instructions
Praktischer Tipp!
So stellen Sie Ihren neuen
Bürostuhl richtig ein!
