DSL Line Combiner
The 2Wire DSL Line Combiner merges both the DSL and
your home telephone service into a single line, enabling you
to connect the 2Wire HomePortal to your existing home
telephone wiring to create a home network.

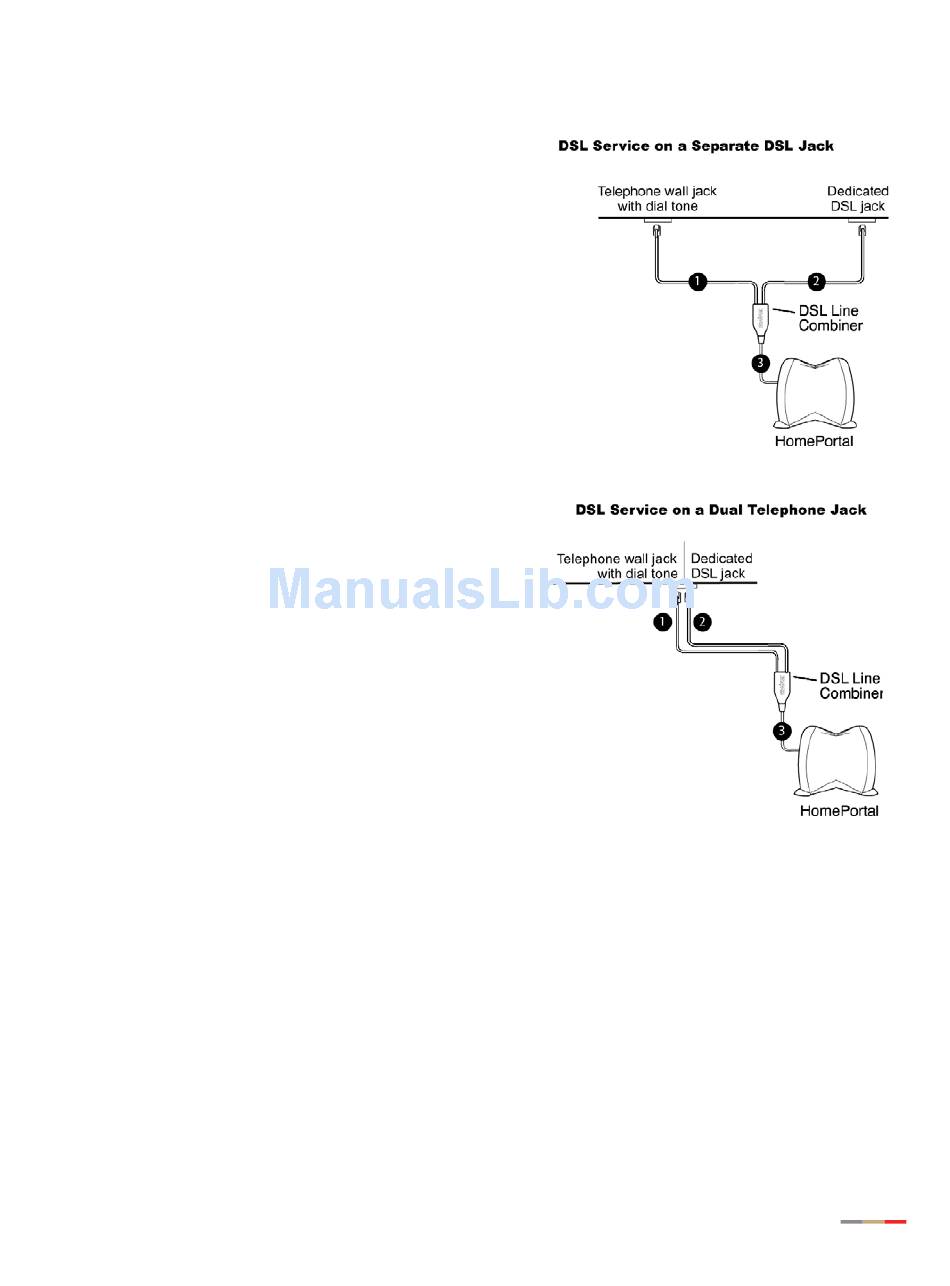

Installation Instructions
Connect a telephone cord from the telephone wall jack
1.
to the port labeled
Combiner.
Connect a telephone cord from the DSL wall jack to the
2.
port labeled
DSL WALL JACK
The DSL service wall jack is a special jack set up during
installation of your DSL service.
Connect the cord labeled
3.
Combiner to the port labeled
on the DSL Line
PHONE WALL JACK
on the DSL Line Combiner.
on the DSL Line
MODEM
on the HomePortal.
LINE
1
