Summary of Contents for JBS JBS-PT-AC25

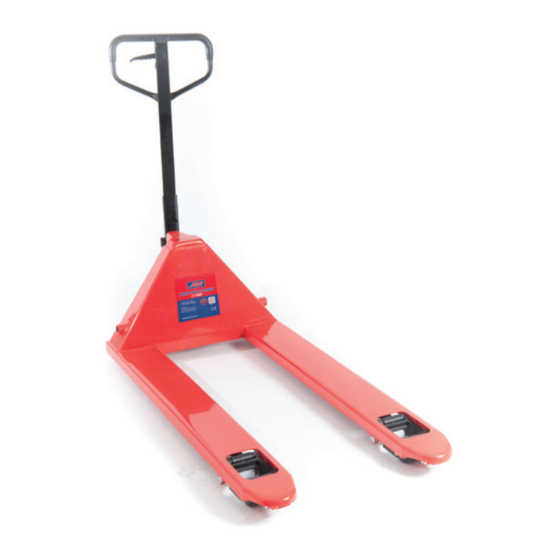

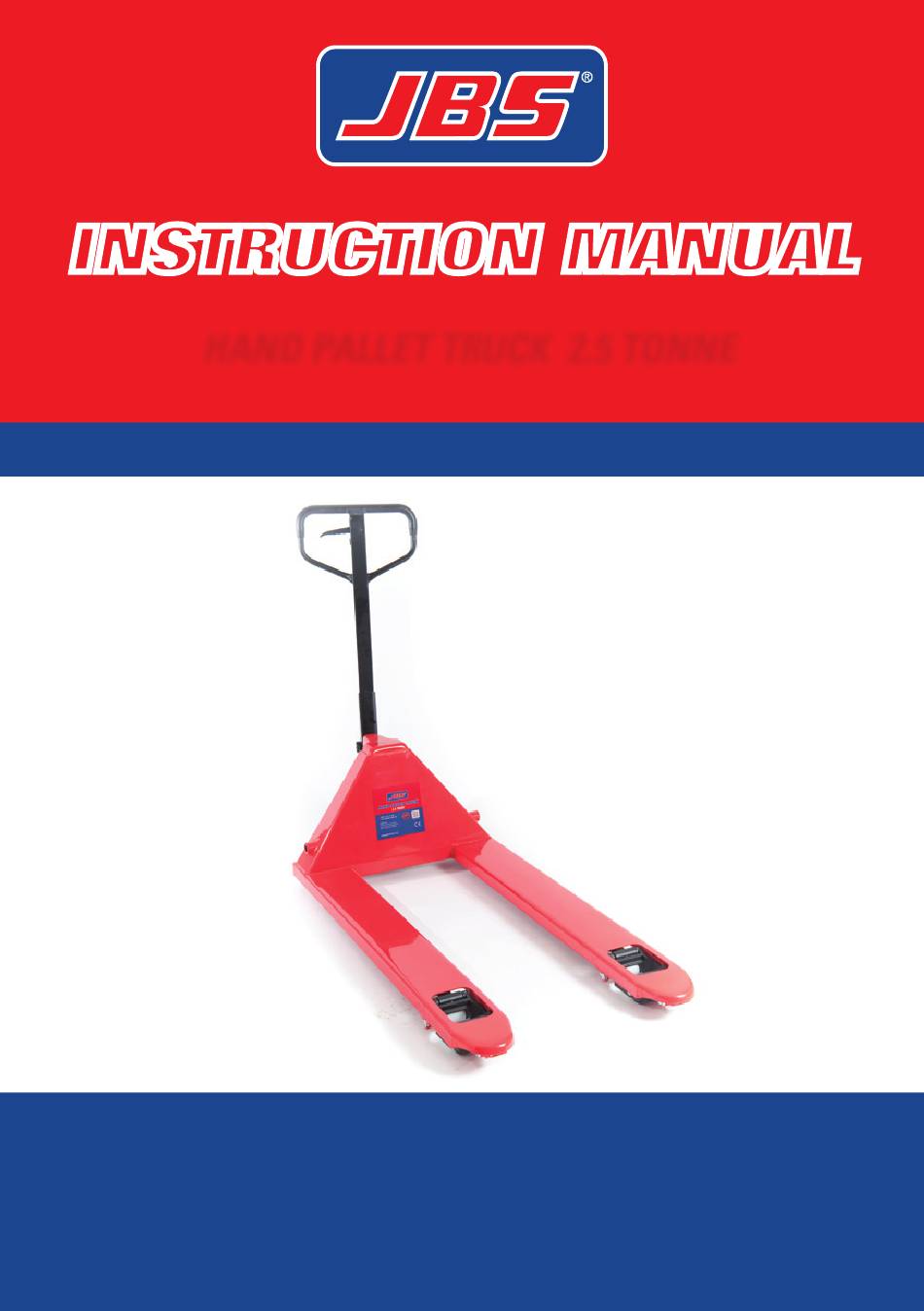

- Page 1 InstructIon Manual HAND PALLET TRUCK 2.5 TONNE READ THIS OPERATING MANUAL BEFORE USING THE PALLET TRUCK. This manual contains important safety, assembly, operation and maintenance information. ALWAYS operate, inspect and maintain the unit in accordance with this manual.
-
Page 2: General Specifications
IntroDuctIon Thank you for purchasing your JBS Pallet Truck. Your pallet truck is made of high quality steel and is designed to give you durable and reliable service. This manual will help you get the best use out of your pallet truck, and contains important information regarding proper assembly, operation and maintenance. - Page 3 assEMBlY aTTach draW Bar To PumP In order to attach the draw bar to the pump, you need a hammer, pliers, a spanner and the parts provided with the pallet truck. Please see the drawing below and on page 8, 9 and 10 for instructions and make sure that the number of the draw bar and pump are the same.
-
Page 4: Maintenance
adJuST releaSe device On the draw bar of your pallet truck, you will find the control handle (117) which can be regulated in three positions. RAISE = handle down to raise the forks = handle in centre position to move the load DRIVE = handle up to lower the forks LOWER... -
Page 5: Troubleshooting
daily check and mainTenance Daily checks of the pallet truck can limit wear as much as possible. Special attention should be paid to all moving parts; including wheels and axles, to ensure no foreign objects have been picked up which may damage or hinder movement or safe operation.The forks should be unloaded and lowered to the lowest position after each job is finished. -
Page 6: Important Safety Warnings
IMPortant saFEtY warnInGs operate the pallet truck unless you are familiar with this product and have been trained DO NOT or authorised to do so. operate the pallet truck on sloping grounds. DO NOT handle unstable or loosely stacked loads. DO NOT place any part of your body in the lifting mechanism or under the forks or load. - Page 7 CORRECT INCORRECT...
- Page 8 EXPloDED VIEw - HanDlE DESCRIPTION QTy. DESCRIPTION QTy. Release Rod Stop Rubber Chain Roll Pin Adjusting Bolt Blade Spring Adjusting Nut Spring Axle Elastic Pin Roll Pin Elastic Pin Bushing Control Handle Roller Pin Roller Pressure Roller Roll Pin 109A Bushing Pull Board Draw-bar...
- Page 9 EXPloDED VIEw - Fork FraME DESCRIPTION QTy. DESCRIPTION QTy. Fork Frame Intermediate Roller Roll Pin Extending Roller 202G Bolt Roll Pin Rock - Arm Roll Pin Bushing Shaft Shaft Frame of Roller Bushing Washer 8 or 4 Bushing Bearing 8 or 4 Retaining Ring 227* Loading Roller...
- Page 10 EXPloDED VIEw - PuMP unIt www.jbstools.com...
- Page 11 PuMP unIt - Parts lIstInG DESCRIPTION DESCRIPTION Spring Cap Roll Pin Spring Valve Cartridge Pump Piston Pump Body Dust Ring Seal Washer Seal Screw Plug Dust Cover Seal Locking Ring O – Ring Washer Dust Ring Bearing Piston Rod Loading Wheel Steel Ball Roll Pin Screw Plug...
-
Page 12: Year Limited Warranty
99 DaY MonEY Back ProMIsE. no quEstIons askED. You’re assured complete confidence when you buy JBS products. Every product comes with a 99-day, no questions asked, money back satisfaction promise. If you’re not 100% satisfied, just return it to us within 99 days for a full refund.
