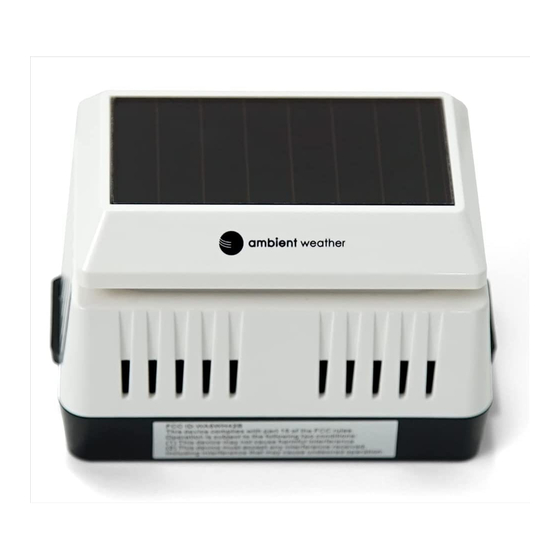

Ambient Weather PM2.5 Wireless Indoor / Outdoor
Particulate Monitor User Manual
Table of Contents
1.
Introduction ..................................................................................................................................... 1
1.1
Parts List ................................................................................................................................. 2
1.2
Recommend Tools ................................................................................................................... 2
1.3
Warnings ................................................................................................................................. 2
1.4
Sensor Overview ..................................................................................................................... 3
2.
Sensor Setup .................................................................................................................................... 3
2.1
Inserting the Batteries ............................................................................................................. 3
2.2
Recharging the Batteries ......................................................................................................... 4
3.
Sensor Installation ........................................................................................................................... 4
3.1
Sensor Mounting ..................................................................................................................... 4
3.1.1
Mounting Guidelines .......................................................................................................... 4
3.1.2
Mounting Screws ............................................................................................................... 4
3.2
Best Practices for Wireless Communication ........................................................................... 5
4.
Specifications .................................................................................................................................. 6
4.1
Measurement Specifications ................................................................................................... 6
4.2
Wireless Specifications ........................................................................................................... 6
4.3
Power Specifications ............................................................................................................... 6
5.
Liability Disclaimer ........................................................................................................................ 6
6.
FCC Statement ................................................................................................................................ 7
7.
Warranty Information ...................................................................................................................... 7
1. Introduction
Thank you for your purchase of the Ambient Weather PM2.5 WiFi Indoor / Outdoor Particulate
Monitor. The following user guide provides step by step instructions for installation, operation and
troubleshooting. To download the latest manual, compatible devices, and additional troubleshooting
tips, please visit:
PM2.5 refers to particles that are 2.5 microns or smaller in diameter. This sensor uses laser
scattering to radiate suspending particles in the air, then collects scattering light to obtain the curve of
scattering light change with time. The microprocessor calculates equivalent particle diameter and the
number of particles with different diameter per unit volume.
Version 1.6
©Copyright 2018, Ambient LLC. All Rights Reserved.
https://ambientweather.net/product/pm25
Page 1
Advertisement
Table of Contents
Related Manuals for Ambient Weather PM2.5
Summary of Contents for Ambient Weather PM2.5
- Page 1 PM2.5 refers to particles that are 2.5 microns or smaller in diameter. This sensor uses laser scattering to radiate suspending particles in the air, then collects scattering light to obtain the curve of scattering light change with time. The microprocessor calculates equivalent particle diameter and the number of particles with different diameter per unit volume.
- Page 2 The following table describes the Air Quality Index (AQI) vs. PM2.5 breakpoints. AQI Category Breakpoints (µg/m 0.0 – 12.0 Good 12.1 – 35.4 Moderate 35.5 – 55.4 Unhealthy for Sensitive Groups 55.5 – 150.4 Unhealthy 150.5 – 250.4 Very Unhealthy 250.5 –...
- Page 3 1.4 Sensor Overview Figure 2 Description Description Solar Collector Blue LED Indicator (charging status) Battery Compartment Cover USB Charging Port Red LED Indicator (RF transmission) Battery Compartment 2. Sensor Setup 2.1 Inserting the Batteries Remove the battery cover on the bottom of the sensor, and insert the 2 x AA Ni-MH Rechargeable Batteries.
- Page 4 Close the battery door. 2.2 Recharging the Batteries When there is no solar energy, a fully charged set of batteries can last for about 20 days (approximately 500 hours). A low battery indicator will appear on the display console. To recharge the batteries: Remove the battery cover on the bottom of the sensor.
- Page 5 Figure 3 3.2 Best Practices for Wireless Communication Wireless communication is susceptible to interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication. 1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors and TVs.
- Page 6 Frequency: 915 MHz Sensor reporting interval: 10 minutes 4.3 Power Specifications PM2.5 sensor: 2 x AA 1.2V LSD type NI-MH batteries (included) Solar panel for backup power 5. Liability Disclaimer Please help in the preservation of the environment and return used batteries to an authorized depot.
- Page 7 No part of this manual may be reproduced without written authorization of the manufacturer. Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. 6. FCC Statement Statement according to FCC part 15.19: This device complies with part 15 of the FCC rules.
- Page 8 (6) applications and uses that this product was not intended (7) the products inability to receive a signal due to any source of interference or metal obstructions and (8) extreme acts of nature, such as lightning strikes or floods. This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.
