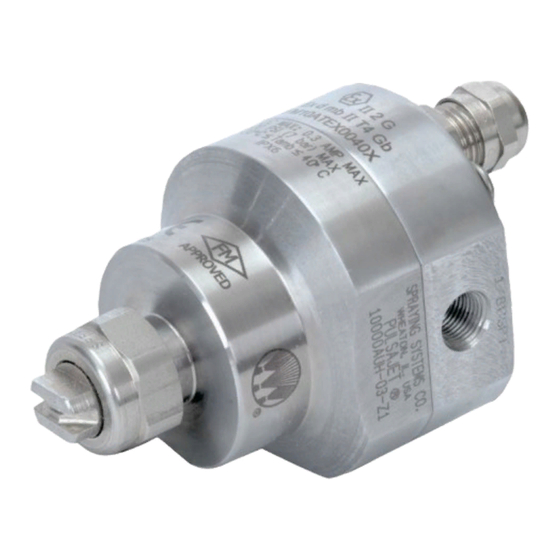

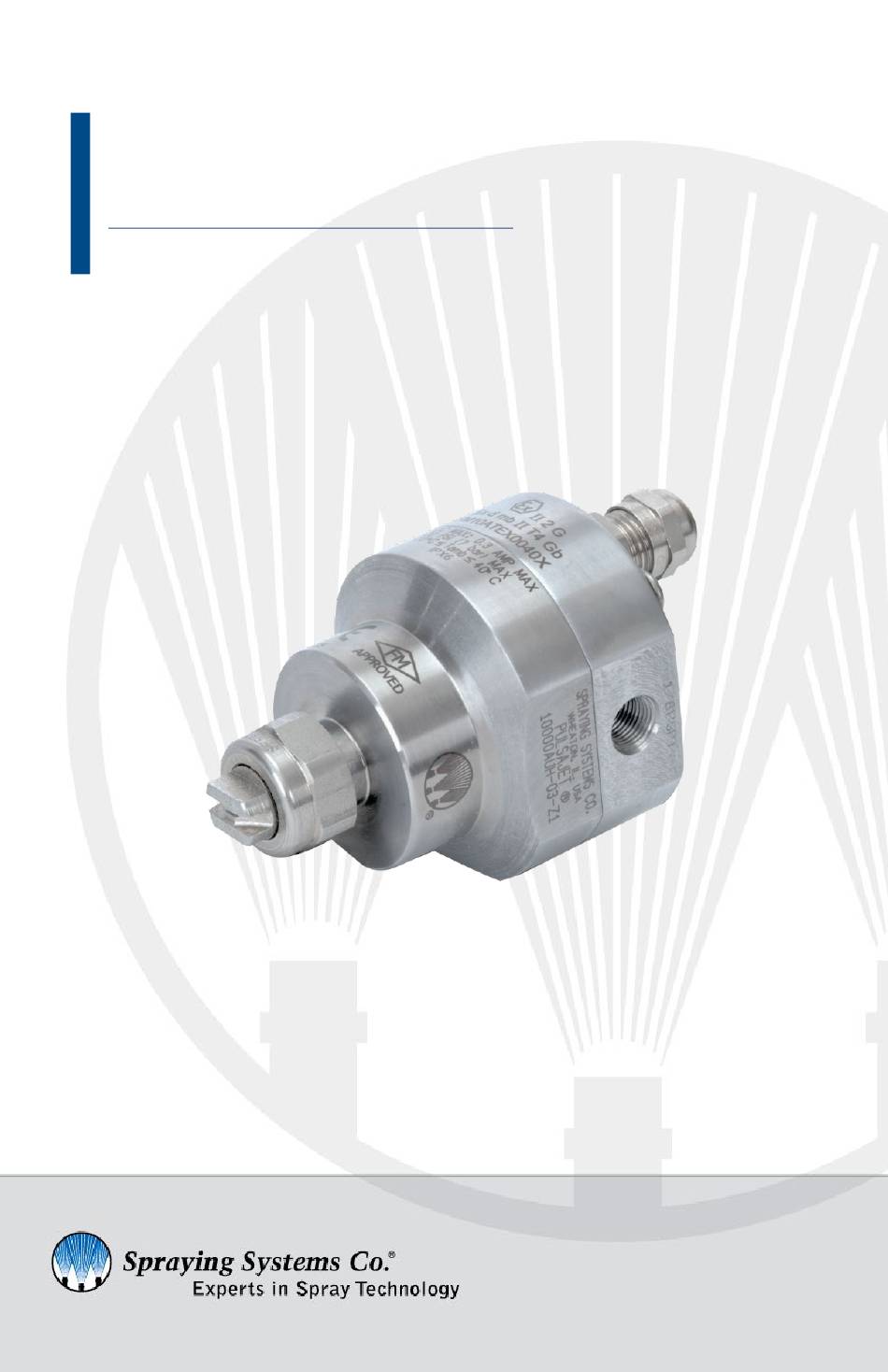

- Page 1 PulsaJet ® 10000AUH-03-Z1 USER GUIDE MI-10000AUH-03-Z1 for NPT & BSPT Models spray.com...
-
Page 2: Table Of Contents
Provide adequate ventilation to prevent dangerous concentrations of volatile vapors in spray area. • Voltage must not be supplied to the PulsaJet 10000AUH-03-Z1 unless it is in its fully assembled condition. • Follow all the nozzle specifications during use. Working outside of these specifications may lead to unsatisfactory spray application, nozzle damage, damage to equipment, or personal injury. -
Page 3: Introduction
• Spraying Systems Co. waives all liability and responsibility in the event of usage not in compliance with our recommendations and/or any unauthorized interventions to our equipment. • Special Conditions of Use: 1. Flameproof joints are not intended to be repaired, contact manufacturer. -
Page 4: Installation
INSTALLATION FLUID CONNECTIONS: Fluid connections should be made using the appropriate 1/8” pipe connection. If a metal fitting is used, appropriate thread sealer should be applied to the threads prior to assembly. For those applications requiring recirculation, two 1/8” pipe connection ports are provided. If recirculation is not required, one of the ports should be plugged using 1/8”... - Page 5 FIGURE 1 – ELECTRICAL SCHEMATICS FOR AA10000AUH-03-Z1...
- Page 6 MOUNTING: The PulsaJet® 10000AUH-03-Z1 can be mounted in any orientation using the threaded holes to mount to a bracket or other surface. Alternately, it may be supported by the inlet piping if rigid pipe is used. Mounting holes, inlet connections and outer dimensions are shown on Figure 2. FIGURE 2 –...
-
Page 7: Operation
OPERATION CHEMICAL COMPATIBILITY: Be sure the fluids used in the AA(B)10000AUH-03-Z1 are compatible with and will not cause deterioration of the materials of construction shown in the introduction to this document. SAFETY: • To prevent possible ignition, do not disconnect while energized. •... -
Page 8: Troubleshooting
TROUBLESHOOTING Certain conditions could occur to cause a malfunction or unsatisfactory operation of the spray nozzle. These conditions are addressed in the table below: Problem Possible Cause Poor spray Clogged spray tip. Remove spray tip and clean orifice or performance replace tip. - Page 9 REBUILD INSTRUCTIONS: Spare Part Kit AB10000AUH-03-Z1-KIT contains all replacement parts necessary to rebuild spray nozzle. Refer to the Parts List for an exploded view and identification of numbered items. FIGURE 3 – AA10000AUH-03-Z1 EXPLODED VIEW Item Part No. Description CP1325-SS Retaining Cap;...
- Page 10 RATINGS AND LABEL INFORMATION: FIGURE 4A– PULSAJET AA10000AUH-03-Z1 SPRAY NOZZLE LABEL (NPT VERSION) FIGURE 4B – PULSAJET AAB10000AUH-03-Z1 SPRAY NOZZLE LABEL (BSPT VERSION)
-
Page 11: Declaration Of Conformity
Wheaton, Illinois, USA Declaration of Conformity Spraying Systems Co. North Avenue at Schmale Road P.O. Box 7900 Wheaton, IL 60187-7900 Declare that our AA(B)10000AUH-03-Z1 Automatic Spray Nozzle models, to which this declaration relates, are in conformity with: Directive Standards Certification No. - Page 12 North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000 Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842 www.spray.com MI-10000AUH-03-Z1 rev-3 © Spraying Systems Co. 2019...
