Anglerfish Creative Lighting AFCL-HD57 User Manual

4k underwater hdmi monitor

Hide thumbs

Table Of Contents

Quick Links

Download this manual

SER

UIDE

AFCL-HD57 4K U

HDMI M

NDERWATER

ONITOR

Table of Contents

Need help?

Do you have a question about the AFCL-HD57 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anglerfish Creative Lighting AFCL-HD57

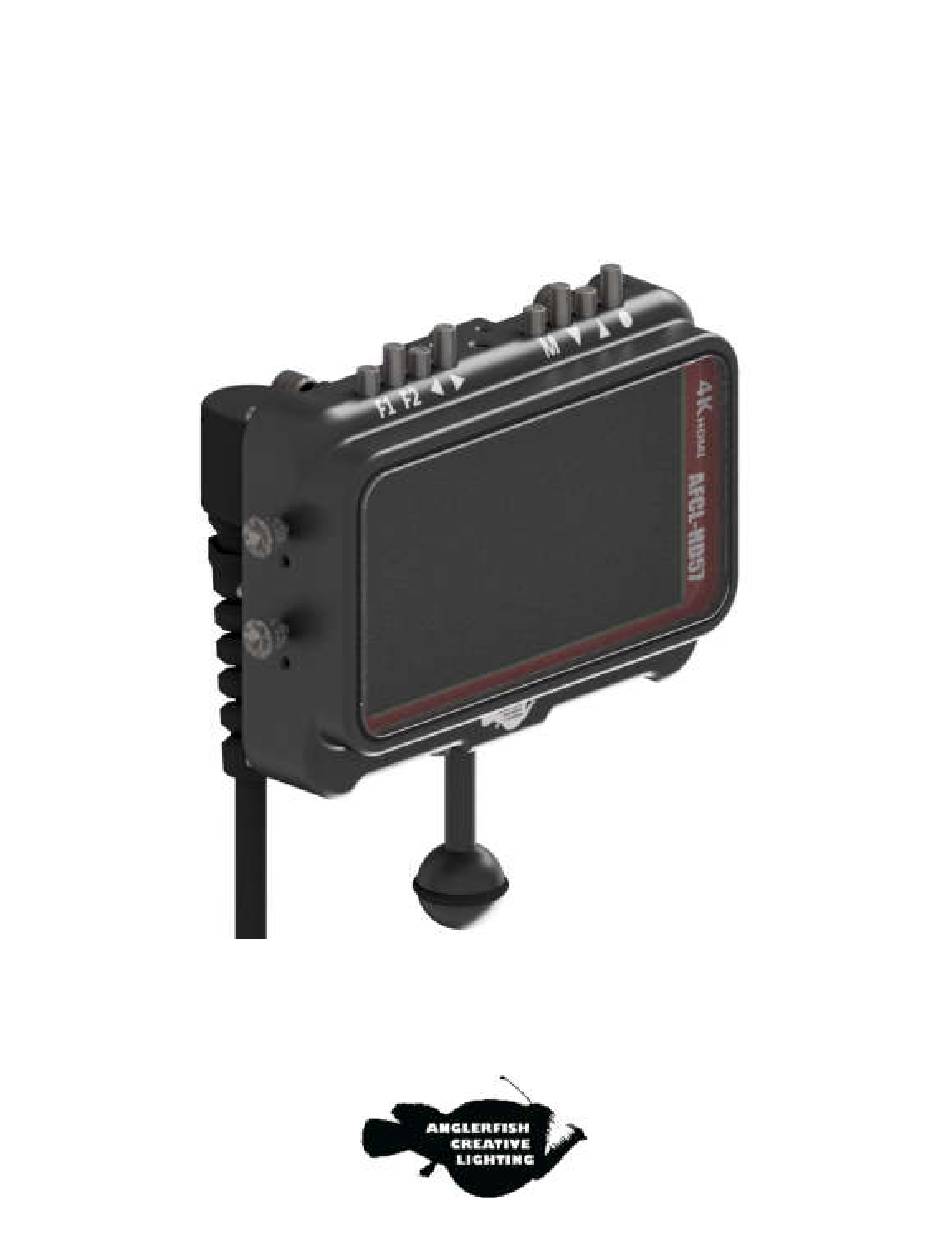

Page 1 UIDE AFCL-HD57 4K U HDMI M NDERWATER ONITOR...
Page 2 Ba ery Size This Monitor is designed to accept ba ery compa ble with Sony SF-750 (4-cell, 7.2V rechargeable lithium-ion ba ery pack). Many a ermarket brands produce high quality ba ery packs which are compa ble with the Sony brand. Please make sure you select the 4-cell ba ery type as the 6-cell version will not ﬁt inside the ba ery compartment.
Page 3 Revision Sheet EVISION UMBER ESCRIPTION 2019 RAFT 2020 ARCH PDATED p.ii Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 4: Table Of Contents
TABLE OF CONTENTS ................I PRODUCT OVERVIEW ................1 FEATURES ....................4 PRODUCT DESCRIPTION ................ 5 USING THE SUNSHADE ................9 BATTERY COMPARTMENT ..............10 OS & MENU OPERATION ..............11 COMPLIANCE ..................25 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 5: Product Overview
To ensure the best use of the unit, please read the user’s manual carefully Always perform a vacuum test or wet test your housing without the camera installed every me installing or removing the bulkhead Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 6 ‘DIY’ skills. If you do not feel comfortable installing the bulkhead, ask for more details from our dealers. A emp ng to install bulkhead without basic skills will result in damage. Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 7 Opera ng the monitor under direct sunlight may cause the monitor to  overheat. Always turn oﬀ the monitor above water in tropical loca ons. Always use high quality ba eries comparable to Sony NP-F750 brand.  Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 8: Features
Nine Grid (Zoom one of the images to realize the full screen)  Zoom (4X, 9X, 16X)  HDMI Input Support Format: 480i/576i/480p/576p, 1080i  (60/59.94/50),720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 9: Product Description
Product Description Monitor Front Panel Monitor Back Panel Bu ons Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 10 A achment Points Sunshade & Ba ery Compartment Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 11 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 12 M14x1.0 HDMI bulkhead HDMI Micro connector (Type D Male) M14x1.0 Adaptors for various housing brands 6 HDMI Adaptors for various camera brands (Type A Std, C Mini, D Micro), right and le angle Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 13: Using The Sunshade
Using the Sunshade The sunshade can be mounted on the monitor in two ways: right side up and upside down. Use the correct hole to mount the thumb screw. Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 14: Battery Compartment
Run your ﬁngers on the o-ring Push to release to make sure no dust, par cles, ba ery or hair are on the o-ring prior to installing the ba ery compartment p.10 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 15: Os & Menu Operation
HDMI Connectors are sensi ve and fragile. Applying too much strain or excessive bending will result in cable failure. p.11 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 16 Some items and tools are required for this task. If you do not have appropriate tools do not try this by yourself. Do these tasks at your own risk! p.12 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 17 We recommend using a heat shrink with heat ac ve adhesive for extra support. They are much more rigid then normal heat shrinks. p.13 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 18 Be sure not to put too much force on the connector Apply hot air. Do not exceed 150ºC as it will melt the plas c part of the connector. p.14 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 19 HDMI connec on and reduces the bending on the connec on. Be sure to use small zip es and make sure they do not interfere with the camera and housing p.15 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 20 Addi onally, another form of extension cable can be purchased online. These provide more ﬂexibility for housing with limited space. They come with a ribbon cable and 4K signal is not always guaranteed. p.16 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 21 A er selec ng an item in the submenu, use bu ons to adjust the desired parameters. A er adjus ng the desired parameters, bu ons can be used to scroll though rest of the items in the submenu. p.17 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 22 0 to 100 percent. Color Temperature parameter allows the user to set the color temperature to the following se ngs 6500, 9300 and user. When selec ng ‘user’, the p.18 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 23 Oﬀ, Low, Middle, High. OSD H parameter allows the user to the horizontal posi on of the OS menu from 0 (le ) to 100 (right) percent. p.19 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 24 Reset parameter allows the user to revert all user se ngs back to the original se ng. Press bu on to conﬁrm a reset. Allow the monitor to boot up it take several seconds to perform a reset. Zoom Submenu Tab p.20 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 25 L/R Zoom sub parameter: 0 to 100. Provides the horizontal stretch range. U/D Zoom sub parameter: 0 to 100. Provides the ver cal stretch range. Scan Mode parameter: Under Scan, Over Scan Func on Submenu Tab p.21 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 26 Anamorphic nX parameter: 1.20X to 2.00. Allows for customizable anamorphic adjustment is available. Check Field parameter: Oﬀ, Mono, Red, Green, Blue p.22 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 27 Ra o Marker parameter: Oﬀ, 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1. Allows the user to display the image display ra o marker. Mark Color sub parameter: Red, Green, Blue, Black, White p.23 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 28 Custom Func on Set Tab This submenu allows the user to set and customize the func on bu ons. p.24 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 29: Compliance
The correct disposal of this product will help prevent any poten al nega ve eﬀect to the environment. For disposal please take this product to a designated electronic waste recycling or disposal area. p.25 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
Page 30  PCB Tes ng & Inspec on  Menu Func on and Program Test  HDMI Cable Test  HDMI Signal Test 4K, 24p  Hydrotest (980 kPa) Serial No. p.26 Anglerﬁsh Crea ve Ligh ng | AFCL-HD57 4K HDMI...
