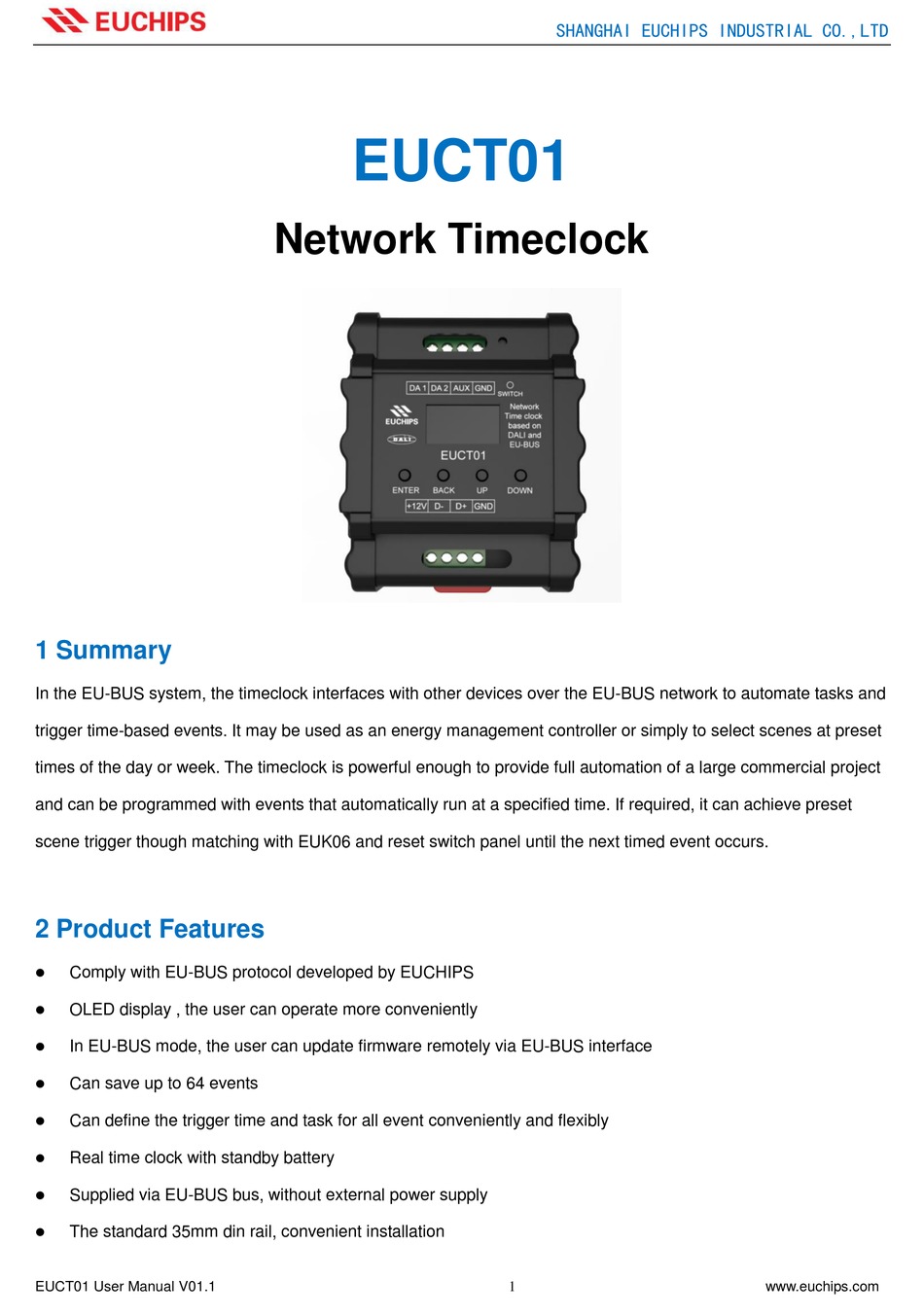

In the EU-BUS system, the timeclock interfaces with other devices over the EU-BUS network to automate tasks and
trigger time-based events. It may be used as an energy management controller or simply to select scenes at preset
Times of the day or week. The timeclock is powerful enough to provide full automation of a large commercial project
and can be programmed with events that automatically run at a specified time. If required, it can achieve preset
scene trigger though matching with EUK06 and reset switch panel until the next timed event occurs.
2 Product Features
Comply with EU-BUS protocol developed by EUCHIPS
OLED display , the user can operate more conveniently
In EU-BUS mode, the user can update firmware remotely via EU-BUS interface
Can save up to 64 events
Can define the trigger time and task for all event conveniently and flexibly
Real time clock with standby battery
Supplied via EU-BUS bus, without external power supply
The standard 35mm din rail, convenient installation
EUCT01 User Manual V01.1
EUCT01
Network Timeclock
SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD
1
www.euchips.com
Advertisement
Table of Contents
Summary of Contents for EUCHIPS EUCT01
- Page 1 If required, it can achieve preset scene trigger though matching with EUK06 and reset switch panel until the next timed event occurs. 2 Product Features Comply with EU-BUS protocol developed by EUCHIPS OLED display , the user can operate more conveniently ...
- Page 2 Return key, return to the upper menu, exit the option to set the state Move up the cursor; change the status of the option DOWN Move down the cursor; change the status of the option EUCT01 User Manual V01.1 www.euchips.com...
- Page 3 Move the cursor to “Time” to set event time ,then, press ”BACK” to return to the upper menu. Figure 6 5.1.3 Week&Month Move the cursor to “Week&Month”, then press “ENTER” to enter sub menu. “---” means the current option is invalid. Figure 7 Figure 8 EUCT01 User Manual V01.1 www.euchips.com...
- Page 4 "BACK" to exit. Figure 13 Figure 14 Figure 15 5.4.2 Factory Reset Press ENTER to choose whether to reset factory settings. After restoring the factory settings, the equipment is returned to the factory initial state. EUCT01 User Manual V01.1 www.euchips.com...
- Page 5 In this menu, the current system information can be displayed, which is shown as follows: Figure 21 Line 1: Device model Line 2: box and GUID Line 3: the current date Line 4: the current time Line 5: “Euchips co.,LTD.” EUCT01 User Manual V01.1 www.euchips.com...
- Page 6 SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD 6 Wiring Diagram Model Name Ebus-Node EU-BUS debugger EUR0420-DDL Relay switch controller EUT0802-DDL Leading edge controller EUMA0405-DDL Phase cut & 0-10V dimming controller EUB01 Rs485 repeater，used for long distance transmission EUCT01 User Manual V01.1 www.euchips.com...
