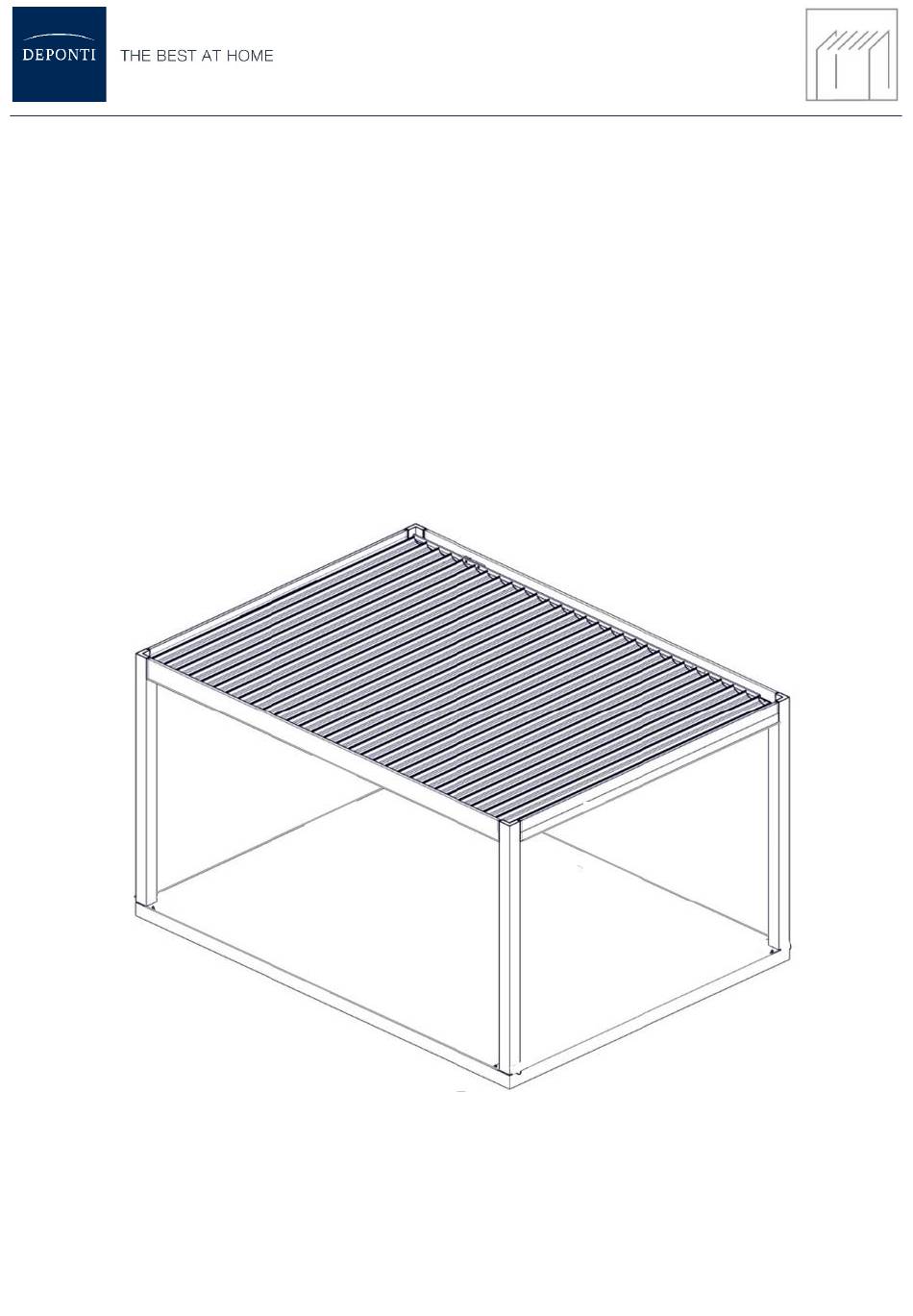

- Page 1 User manual / Assembly instructions Deponti Retractable Louvered Pergola Type Pinela Deluxe Version: EN – September 2020 www.deponti.com...
-
Page 2: Table Of Contents
For the duration and the terms and conditions of the warranty we recommend that you contact your supplier. We also refer you to our General Terms and Conditions of Sale and Delivery which are available on request. Deponti B.V. accepts no liability for any damage or injury resulting from a failure to carefully follow the instructions in this manual or exercise due caution during transport, assembly, use and maintenance of the pergola. -
Page 3: Introduction
Before you can start enjoying your pergola it must be assembled properly. This manual provides clear instructions for all the steps you must complete for correct assembly of your Deponti pergola. We recommend that you take the time to read the entire manual before you begin the assembly. - Page 4 Dispose the product in accordance with local laws and regulations. • It is forbidden to tamper with the bioclimatic pergola system. • When safety regulations and instructions are not followed correctly, Deponti B.V. will not accept responsibility for damage(s) and injuries. Assembly Manual – Pinela Deluxe Pergola www.deponti.com...
-
Page 5: Product Description
The Pinela Deluxe is a bioclimatic pergola system with a retractable and rotatable panel system. The retractable Pinela Deluxe panels can be opened. When opened it can give an open roof space of %79 of the total covered area, due to the synchronized movement of the smooth designed panels. - Page 6 Placement options: It is possible to place the Pinela Deluxe freestanding or mounted to a wall. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 6...
-
Page 7: Parts Overview
4. Parts Overview 4.1 Terminology The motor requires 230V / 50Hz. If you have added a LED lighting strip to your Pinela Deluxe, you must use the lighting control box. The control box requires 230V / 50-60Hz as well. Assembly Manual – Pinela Deluxe Pergola www.deponti.com... -
Page 8: Hardware Details
4.2 Hardware details Integrated gutter – Pillar connection (Freestanding) M10 nut Stainless Steel M10 washer Stainless Steel Integrated gutter – Wall bracket (Wall mounting) M8x25mm Bolt M4,8x25mm self-drilling screw Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 8... -
Page 9: Exploded View
4.3 Exploded view 4.3.1. Exploded view - Integrated Gutter 4.3.2 Exploded view - Panels Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 9... -
Page 10: Delivery Inspection
Note: • Boxes with red label: Electronic parts like Control Unit Box, Remote Controls. • Boxes with blue label: Metal parts like U Brackets, Mounting brackets, Pillar caps Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 10... -
Page 11: Preparation For Assembly
Warranty is void if the Pinela Deluxe pergola is not assembled and installed in accordance with the instructions. Assembly Manual – Pinela Deluxe Pergola www.deponti.com... -
Page 12: Inspection Of Tools And Accessories
5.2 Inspection of tools and accessories Ø16 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 12... -
Page 13: Assembly
6. Assembly You can assemble the Pinela Deluxe by following the next steps. NOTE: The rear integrated gutter has been escalloped CNC machine in order to place the motor tube. 6.1 Mounting the wall profile (in case of wall installation) 1. - Page 14 2. Fasten the brackets to the wall. Use the correct hardware for your situation. We suggest a minimum size of M12. 3. Place the integrated gutter on the wall mounting bracket. 4. Fasten the wall mounting bracket cover on top and tighten it with M8x25mm bolts. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 14...
-
Page 15: Pillar And Integrated Gutter Connection
Nuts as shown at below figure. NOTE: • Lift up the rear frame. • Don’t work alone. You may need an extra hand. • Rear frame should be lifted up and fixed to the ground. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 15... - Page 16 3. Connect the integrated gutter and lateral integrated gutter in a position as shown at below figure. 4. Fix the lateral side integrated gutter to the rear integrated gutter with M10 Sealed Nuts. 5. Check if the structure is level on all sides. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 16...
-
Page 17: Panel Installation
3. Place the short pin into the housing and fix it with the clamp and the a M5 countersunk head bolt. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 17... - Page 18 5. In front of the panel type-3 there should be standard panels (the number of panels depends on your projection). The standard panels are all the same. 6. The last panel is the panel with a locomotive carrier. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 18...
-
Page 19: Rear Mechanism House Placing
7. The bracket’s housing will fit exactly on the pins. After that place the washer and fasten the nuts. 6.4 Rear mechanism house placing 1. There is a suitable bracket for each side. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 19... - Page 20 2. Place the front gear into the ‘front mechanism house’. 3. Turn and place the stretching bolts. The stretching bolts must be placed in the related housing. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 20...
-
Page 21: Place The Tube-Motor Set
1. The rail belt is exactly on size. The rail belt goes over the front and back gear. The belt connection point should be in the centre of the locomotive carrier. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 21... - Page 22 2. Fasten the brackets with a stay bolt and countersunk head bolt. 3. Rail belt stretching; This bolt ensures the tension on the belt is adjustable 4. Make sure there is the same stretch level of the belt on both sides. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 22...
-
Page 23: Finishing
M2,9x13mm screws. If there is perimeter lighting, the lighting control box should be placed on the profile as you see at below. The cables should go from the corner to the box. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 23... - Page 24 4. Install rear covering profile on the motor cover profile. 5. Install the side covering profile. 6. Install the side covering top profile. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 24...
-
Page 25: Middle Pillar Connection (Optional)
7. Install the front cover profile. 6.8 Middle Pillar connection (optional) If your Pinela Deluxe has a projection of 607,8cm you need to add a middle pillar to the pergola structure. You can see on the below picture. Assembly Manual – Pinela Deluxe Pergola www.deponti.com... -
Page 26: Perimeter Lightning Installation (Optional)
6mm down from the top of the integrated gutter. 2. Place the perimeter lighting profile cap to the houding on the perimeter lighting profile. 3. Place the corner plastic between the perimeter lighting profile in the corners. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 26... -
Page 27: Programming Instructions
7. Programming instructions 7.1 Remote Control The Pinela Deluxe is equipped with an integrated tubular motor operated by remote control. For opening, closing or stopping the panels you can use the respective buttons of the remote control. (see image below). -
Page 28: Programming Of The Panels
Only the control unit box needs to be powered. The receiver is completely housed inside of the control unit box. • Deponti reserves her right to void the motor warranty if wiring recommendations are not followed. • The control box only works with 230 V AC / 50~60 Hz. -
Page 29: Programming Of The Lights (Optional)
Step 4: Turn on to power, after that motor or lights will go on Step 5: Press the programming button on your transmitter. The motor or lights have been deleted on your transmitter. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 29... -
Page 30: Faq
- Wet first and rinse off with lots of water, and then wipe with a soft cloth. 10. Disposal of waste Dispose of the product according to local laws and regulations. Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 30... -
Page 31: Warranty Conditions
* The paint warranty is 2 years under ambient conditions at places that have moisture spray with salty and chemical steam (port, coastline, swimming pool, etc.). 12. Contact IMPORTANT: Your Deponti representative is your first point of contact for questions and comments. Assembly Manual – Pinela Deluxe Pergola www.deponti.com...
