Onn ONA19WI702 Product Manual

WIRELESS CHARGING

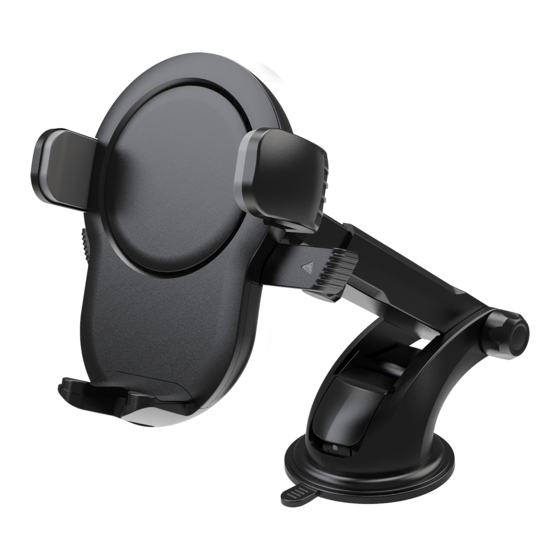

DASH MOUNT
Model: ONA19WI702
PRODUCT GUIDE
Ver01 12/03/18
PRODUCT DIAGRAM
Holder
1
2
3
4
Suc�on Base
9
10
11
12 14
13
Ver01 12/03/18
1. Wireless Charger 8. Micro USB Charging Port
(Fast Clamping Bu�on) 9. Ball Joint
2. Clamps 10. Stabilizing Nut
3. Clamp Release Bars 11. Arm Release Bu�on
5
4. Tray 12. Suc�on Cup Locking Lever
5. LED Indicators 13. Suc�on Cup Tab
6. Steering Knuckle 14. Angle Adjuster
6
7. Tray Release Bu�on
7
SPECIFICATIONS
8
Model ONA19WI702
5V / 2A
Input (Wireless Charger)
Output (Wireless Charger) 5W Max
Micro USB Cable Length 91cm / 3�
Dimensions 115 x 109 x 59mm / 4.5 x 4.3 x 2.3in
Weight 185g / 6.5oz
