RWC DuoPEX Installation Instructions

Technical Data
Installation
Instructions
The DuoPEX Crimp System is simple and
effective when executed in accordance with
these jointing procedures.
For more installation tips:
•
Pick up a copy of the DuoPEX Gas Manual
from your nearest Reece Store
•
Visit www.auspex.com.au
•
Call (03) 9770 3600
•
Email salesauspex@rmc.com.au
auspex.com.au | (03) 9770 3600

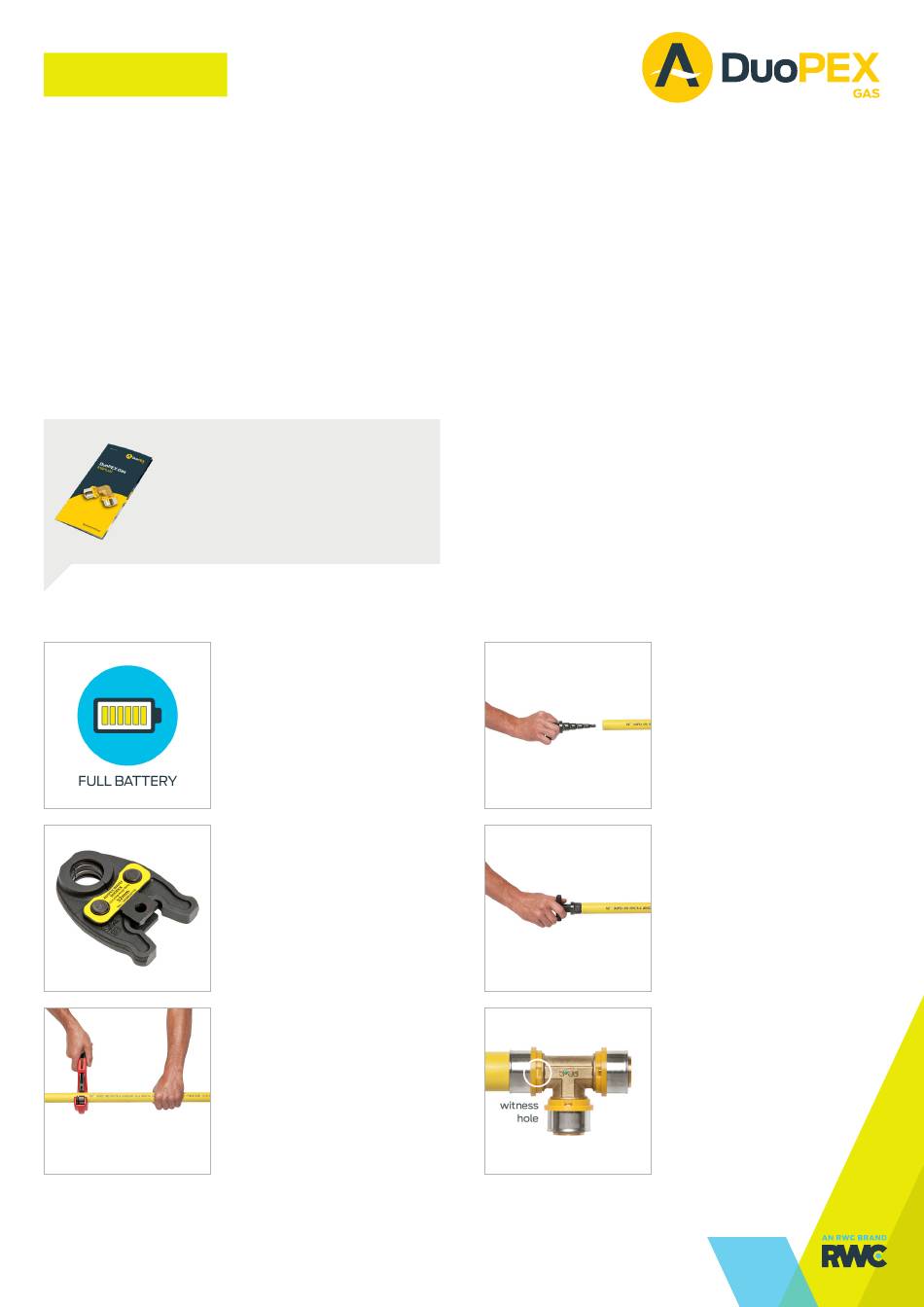

Step 1

Ensure that the battery is fully
charged and attach it to the tool.

Step 2

Select the jaw size to suit the fitting
to be crimped. The jaws must be
examined in terms of possible
damage or dirt in the compression
area.

Step 3

To change the jaw push the pin in
and turn pin to unlock.

Step 4

Insert the jaws and line up the holes
in the tool with the hole in the jaw.

Step 5

Push the pin through the hole in the
jaw and turn pin to lock.

Step 6

Cut the pipe to the required length
with the recommended multi-layer
pipe cutters.
| salesauspex@rmc.com.au

Making A Joint

It is most important that the tool manual supplied with the tool
is read in its entirety and the user bewcomes familiar with the
maintenance, precautions and the proper use of this tool.
The following describes, in general terms, the jointing procedures but
should not be regarded as a substitute for reading and applying the
detailed instructions contained in the tool manual.
Ineffective crimp may occur if:
•
The crimping tool has not been completely closed
•
Crimping ring is pinched
•
The pipe has been cut badly out of square
•
The fitting has been double crimped

Step 7

Insert the approved calibrating/
deburring tool into the pipe, and
then alternately turn in a clockwise
and in a counter-clockwise
direction. Ensure that a consistent,
smooth chamfer is formed on the
end of the pipe.

Step 8

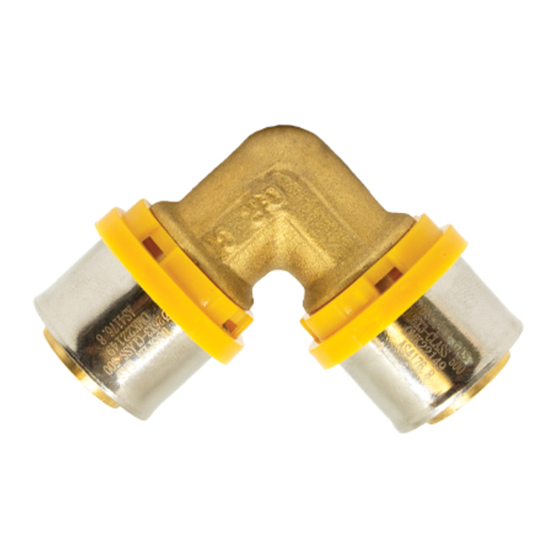

Insert the pipe into the fitting and
under the stainless steel ring and
push the pipe until it is visible in
the slots of the plastic sight ring
(witness hole). This ensures you
have pushed the pipe home.
