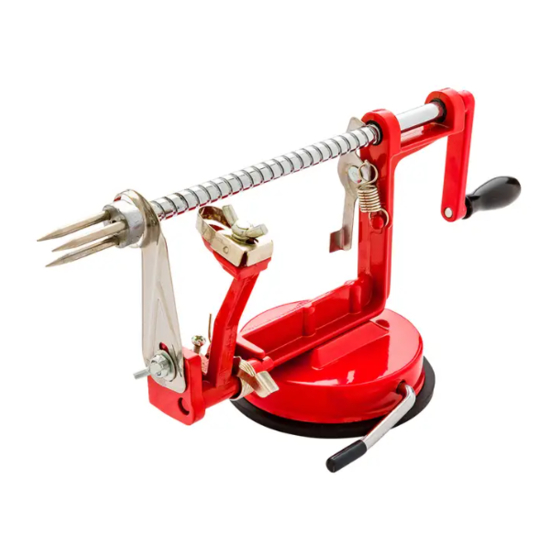

Allrecipes™ -in- APPLE PEELER
Fast and easy apple preparation for snacks, pies,
•
sauces and more
Also great for potatoes, pears, radishes and more
•
Simultaneously cores, peels, and slices
•
Remove the core and slicing blade to only peel, and
•
pull back the peeler blade to just slice and core
Stainless steel blades for lasting durability
•
Powerful suction base securely locks to countertop
•
for hands-free stability
For best results always select firm and fresh fruit;
•

ASSEMBLY

Secure machine onto a clean, dry, sturdy surface such
•
as a counter or tabletop by pressing the lever on the
suction base.
Attach crank handle. Use a screwdriver to tighten.
•
Check alignment of the three-pronged fork and the
•
position of the corer/slicer blade. (See diagrams A & B)

INSTRUCTIONS

CRANK
HANDLE
THREE-PRONGED
GRIPPER FORK
GROOVE CLAMP
SUCTION BASE
• Release the groove clamp and pull crank handle all
the way back.
Pivot peeler-arm to the side and lock it in place with
•
the peeler lock.
Push apple firmly into three-pronged fork (either end
•
of apple will do). Center prongs through core.
Turn the crank until the apple comes in contact with
•
the blade. To adjust the depth at which the blade
peels the apple, loosen the wing nut on the peeler
blade and adjust the gap between peeling blade and
blade shelf lip. (See diagram C)
Remove apple core by releasing the groove clamp
•

OPTIONS

For peeling only, detach corer/slicer blade.
•
For slicing and coring without peeling, pivot peeler-
•
arm to the side and lock it in place with the peeler-
arm lock.

CLEANING

Hand wash with warm, soapy water. Rinse
•
thoroughly.
ADJUSTABLE
PEELER BLADE

CHANGING THE BLADE

Peeler Blade
CORER/SLICER •
BLADE
1. Loosen wing nut to replace or adjust blade. Blade
can be adjusted for minimum to maximum peel
thickness. (See diagram C)
Corer/Slicer Blade
•
1. When attaching this blade to the frame, make sure
the three-pronged fork is all the way forward by
releasing the groove clamp.
2. Fit and center corer/slicer blade over three-pronged
fork and support plate with the wing nut and hole
coring ring facing out, not toward the prongs.
(See diagram B)

TROUBLESHOOTING

PROBLEM – Can't peel
•
SOLUTION – Three-pronged gripper fork must be
centered through corer/slicer blade as in diagram A
and peeling blade must be set as in diagram C
OR
Adjust blade (see diagram C) by increasing gap a
small amount at a time; if the gap is too big it will
gouge apple
PROBLEM – Fruit is not slicing
•
SOLUTION – Corer/slicer blade is on backwards
and must be turned around (See diagram B)
CAUTION
Exposed blades – handle with care
•
Allrecipes™ 3-in-1 Apple Peeler features extremely
•
sharp cutting surfaces. Use caution with the blades
and keep them out-of-reach of children at all times
