Underwater Kinetics Super Q eLED Instructions

®
®
SUPER Q eLED Rechargeable Lithium Ion
Instructions
Thank you for purchasing our Super Q eLED Rechargeable Lithium Ion flashlight. It is a
state-of-the-art replacement of the original Super Q-Lite which was the first recharge-
able miniature dive light made over 30 years ago. The new Super Q is smaller, brighter
and contains the latest LED, optical and Lithium Ion technology as well as charging from
a USB power source. In addition it incorporates UK's unique heat transfer design for
increased brightness and cold weather performance. With minimal care your UK light
will give you years of trouble-free service.
OPERATION

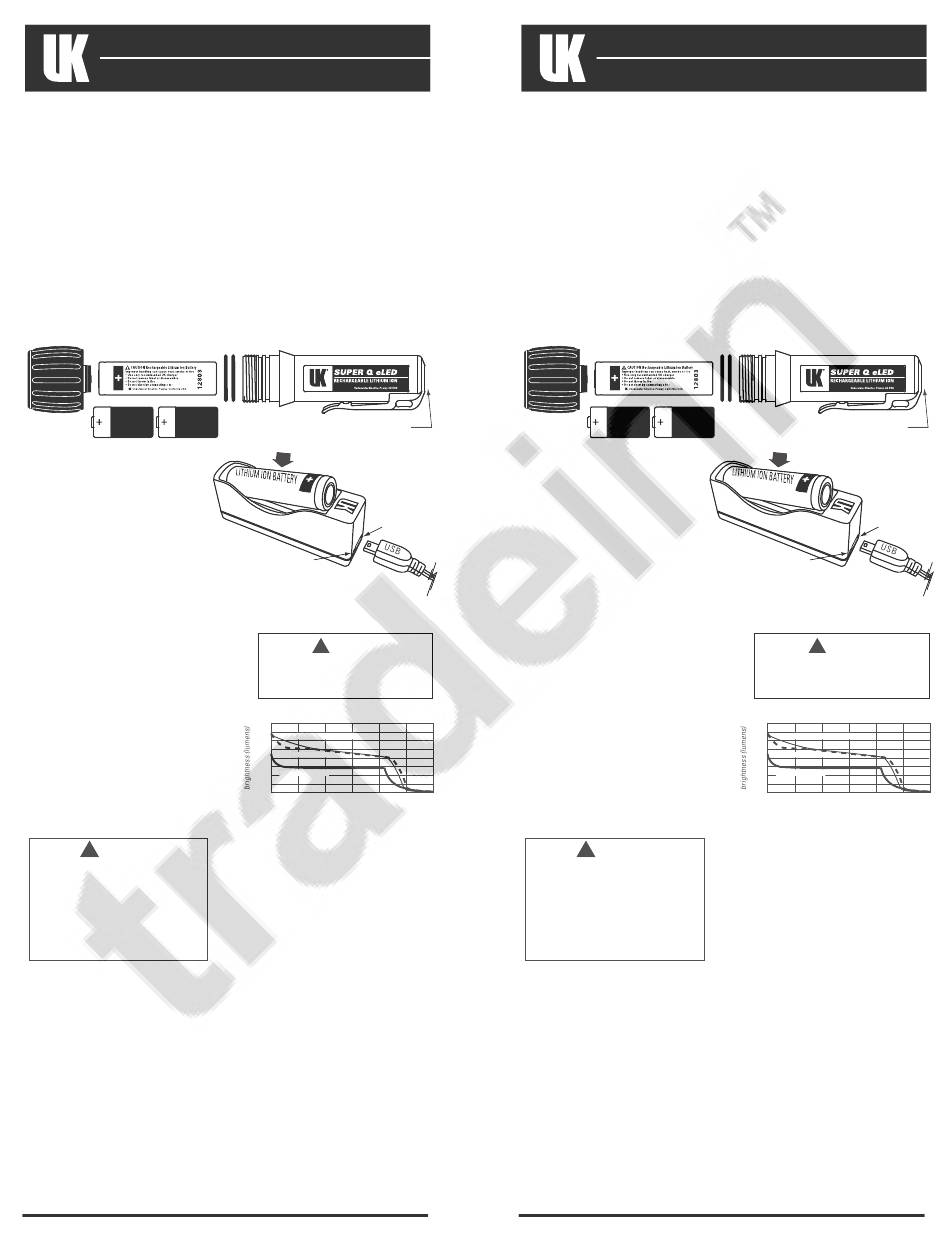

BATTERY INSERTION
Unscrew and remove the Bezel/Lamp Module. Insert the Rechargeable Lithium Ion
Battery or two 123-size lithium cells into the Super Q eLED Case. Be sure that the positive
+ terminal touches the Bezel/lamp module after inserting the battery. Make sure the
o-rings are clean and lubricated with silicone grease. Replace the Bezel/Lamp Module.
ON / OFF
Screw the Bezel/Lamp Module onto the case until the light turns ON. Turn the Bezel in
the opposite direction to turn the light OFF. Rotate the bezel at least one extra turn
beyond OFF to make sure that the light does not turn ON accidentally.
12803
RECHARGEABLE
LITHIUM ION BATTERY
Lithium Lithium
12804
123 123
BEZEL/LAMP
MODULE
DISPOSABLE (NON-RECHARGEABLE)
123 LITHIUM BATTERIES
BATTERY CHARGING
Insert the 12803 Lithium Ion Battery into
the charger as shown. Make sure that the
positive + end of the battery is inserted
next to the positive + mark on the charger
or the battery will not charge. Insert the
mini-USB plug from the supplied 100-240
VAC, 50-60 HZ wall adapter or USB
adapter cord from a computer or 12VDC
USB auto adapter into the charger.
Charge 2-5 hours depending on the USB
source for a complete charge. The
indicator light on charger will change from
red to green when charging is complete.
SPECIFICATIONS
POWER: 1.8 watt
LAMP: High intensity LED
BRIGHTNESS: 100 lumen (Li-ion)
60 lumen (123-cell)
BATTERY: 2000 mA-Hr rechargeable
Lithium Ion
(optional) 123 Lithium (2x)
BURN TIME: 4-5 hr
CHARGE TIME: 2-5 hr (depends on USB)
INPUT VOLTAGE: 4.8-5.2 VDC (USB)
SIZE: 1.4/3.5 x 4.6/11.7 in/cm
WEIGHT: 3.6/102 oz/g
TEST DEPTH: 500/150 ft/m
! CAUTION
Rechargeable Lithium Ion Battery
Improper handling can cause heat, smoke or
fire.
• Use only recommended UK charger.
• Do not remove label or disassemble.
• Do not throw in fire.
• Do not short by connecting + to -.
• Charge only indoors. Do not charge
when wet.
Limited Lifetime Warranty
Underwater Kinetics products are engineered for maximum performance and
durability. All products carry a Limited Lifetime Warranty to the original retail purchaser
to be free from defective material and workmanship under normal and intended use. In
addition, the Underwater Kinetics Limited Warranty covers materials used in its products
to the original purchaser, from the date of purchase, as follows: plastics for 10 years;
rubber for 3 years, LED and electronics for 1 year, lithium ion battery for 90 days.
In the event the original retail purchaser detects a defect in the material or
workmanship, the product along with proof of purchase date should be returned to an
authorized Underwater Kinetics dealer or directly to Underwater Kinetics with the
postage prepaid. Underwater Kinetics agrees to repair or replace at Underwater
Kinetics' sole discretion any product found to be defective in material or workmanship
within the time period specified above. For the complete Limited Lifetime Warranty write
to Underwater Kinetics or go to the web site www.underwaterkinetics.com.
Address all correspondence and returns to:
Underwater Kinetics
13400 Danielson Street
Poway, CA 92064
US
www.uwkinetics.com
SUPER Q ELED CASE
12805
O-RING SET PRESSURE
RELIEF VALVE
12817 USB LITHIUM ION
BATTERY CHARGER
USB Socket
CHARGER INDICATOR
RED - Charging
INPUT
GREEN - Charge complete
from wall power
FLASHING - Problem with
supply, computer
battery or
USB, or auto USB
connection
adapter
! CAUTION
Do not attempt to charge disposable
123-size batteries.
• Fire and/or explosion may result.
BATTERY OPERATION TIME
160
Li-ion battery underwater
120
Li-ion battery in air
80
Li-123 cells in air
40
0
1 2 3 4 5
time (hours)
Care and Maintenance
• Keep the area around the O-ring seal and
pressure relief valve clean and free from
sand.
• If the light floods with water, empty the
contents immediately, rinse with fresh
water and dry completely before
reassembly.
• Keep battery and charger dry.
© 2009 Underwater Kinetics 400814 rev 5/27/09
®
SUPER Q eLED Rechargeable Lithium Ion
Instructions
