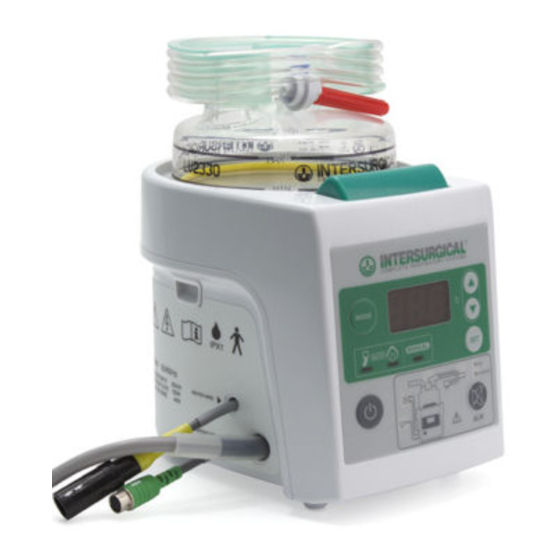

7000 Series Respiratory Humidifier
3
MODE
2
4
1
Turn on Humidifier
used.
Select desired mode
selected.
IPPV Mode:
patient side is controlled to 40°C and chamber side to 37°C.
NPPV Mode:
tilation) interface. The temperature for the patient side is controlled to 34°C and
chamber side to 31°C.
MANUAL mode:
chamber side.
The set values can be changed by following the instructions in Section 5.3.4 of the Instruc-
tions For Use.
Temperature Display (2).
patient temperature (whichever is selected as default). To display the alternate measured
temperature, hold down the alarm silence button (8) for 2 seconds, the display will then
revert after 10 seconds.
Alarms.
An audible alarm will sound. A status indicator LED (7) on the front panel will
highlight the location of the fault. The audible alarm can be muted for 2 minutes by pressing
the alarm silence button (8).
If an Alarm state is left unresolved for 10 minutes, the humidifier will enter stand-by, with the
display showing "000". Switch humidifier off and on to exit stand-by.
AUTO
MANUAL
by briefly pressing power switch (1) Unit will default to last mode
by holding down Mode Button (3) repeat until desired mode is
This mode is preset for intubated patients. The temperature for the
This mode is preset for patients using a NIV (Non Invasive Ven-
This mode allows the selection of temperatures for patient side and
The display shows either chamber outlet temperature or
C
°
SET
T
emp
C
onnection
!
ALM
1
Power Switch
5
2
Temperature Display
Mode Change
3
Mode Display LED's
4
6
Scroll Buttons
5
Set Temperature Button
6
7
7
Status Indicator LED's
8
8
Alarm Silence Button
