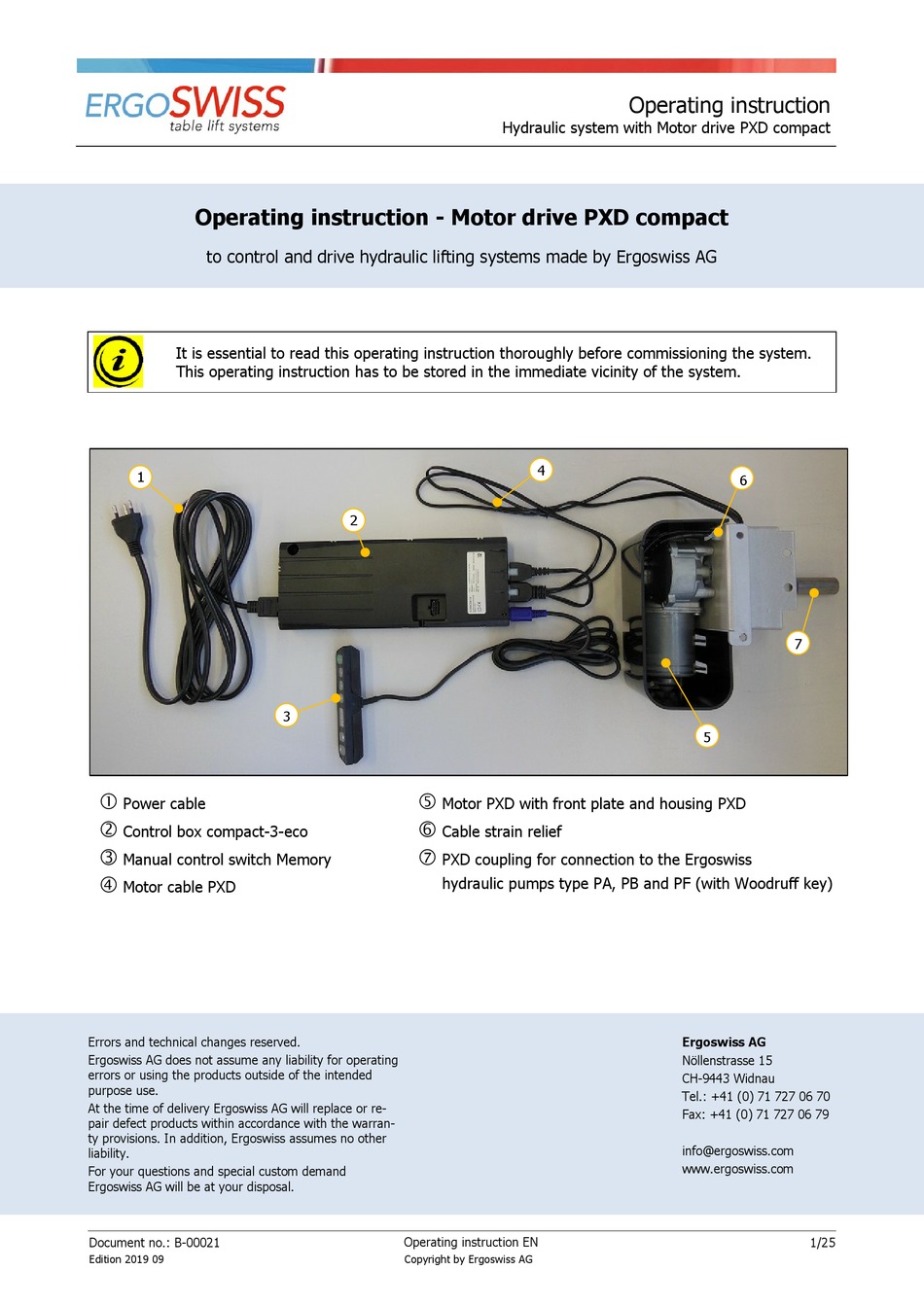

Ergoswiss P D compact Series Operating Instruction

Operating instruction - Motor drive PXD compact
to control and drive hydraulic lifting systems made by Ergoswiss AG
It is essential to read this operating instruction thoroughly before commissioning the system.
This operating instruction has to be stored in the immediate vicinity of the system.
1

Power cable

Control box compact-3-eco

Manual control switch Memory

Motor cable PXD
Errors and technical changes reserved.
Ergoswiss AG does not assume any liability for operating
errors or using the products outside of the intended
purpose use.
At the time of delivery Ergoswiss AG will replace or re-
pair defect products within accordance with the warran-
ty provisions. In addition, Ergoswiss assumes no other
liability.
For your questions and special custom demand
Ergoswiss AG will be at your disposal.
Document no.: B-00021
Edition 2019 09
2
3

Motor PXD with front plate and housing PXD

Cable strain relief

PXD coupling for connection to the Ergoswiss
hydraulic pumps type PA, PB and PF (with Woodruff key)
Operating instruction EN
Copyright by Ergoswiss AG
Operating instruction
Hydraulic system with Motor drive PXD compact
4
6
7
5
Ergoswiss AG
Nöllenstrasse 15
CH-9443 Widnau
Tel.: +41 (0) 71 727 06 70
Fax: +41 (0) 71 727 06 79
info@ergoswiss.com
www.ergoswiss.com
1/25
