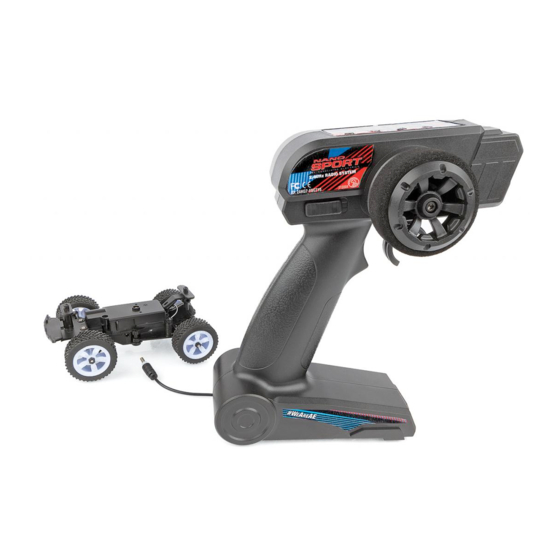

FS-GT15 2.4GHz 3IN1 ELECTRONIC SYSTEM
DESCRIPTION
FS-GT15 is a 3 in 1 multifunction 2.4GHz electronic system build for RC cars. It
has built in servo and ESC inside the receiver all these features just in one small piece.
SPECIFICATIONS
⚫ Transmitter Model：FS-GT15 Tx
⚫ Transmitter Frequency：2.4G （GFSK）
⚫ Remote control distance: >40m
⚫ Power Supply：4 Cell AA Batteries
⚫ Configuration mode: button
⚫ Receiver Model：FS-GT15 Rx
⚫ Voltage Range：1S Lipo
⚫ Receiver frequency: 2.4G (GFSK)
⚫ Supported motor: 180 brush motor, 180 carbon brush motor or 0716 hollow cup
motor
⚫ Supported servo: 5g or 9g 5-wire servo.
FEATURES DESCRIPTIONS
⚫ 2 channel transmitters, set ST TRIM and TH DR.
⚫ Integration of Receiver, ESC and servo, high integration, install conveniently.
⚫ Throttle neutral point adaptation without the TRIM setting of TH.
⚫ Low voltage cut-off protection for battery / Throttle signal loss protection.
FS-GT15 Rx is a highly-integrated multifunction ESC. It has built-in functions of
ESC, servo and 2-channel receiver. It must work with right motor and servo in order
to get FS-GT15 Rx work properly, otherwise the FS-GT15 RX will be destroyed.
Don't block the motor for a long time, which will damage the ESC.
Don't block the servo for a long time, which will damage the servo driver.
USER'S GUIDE V1.0
Declarations and Warnings
Advertisement
Table of Contents
Related Manuals for Associated Electrics FS-GT15
Summary of Contents for Associated Electrics FS-GT15

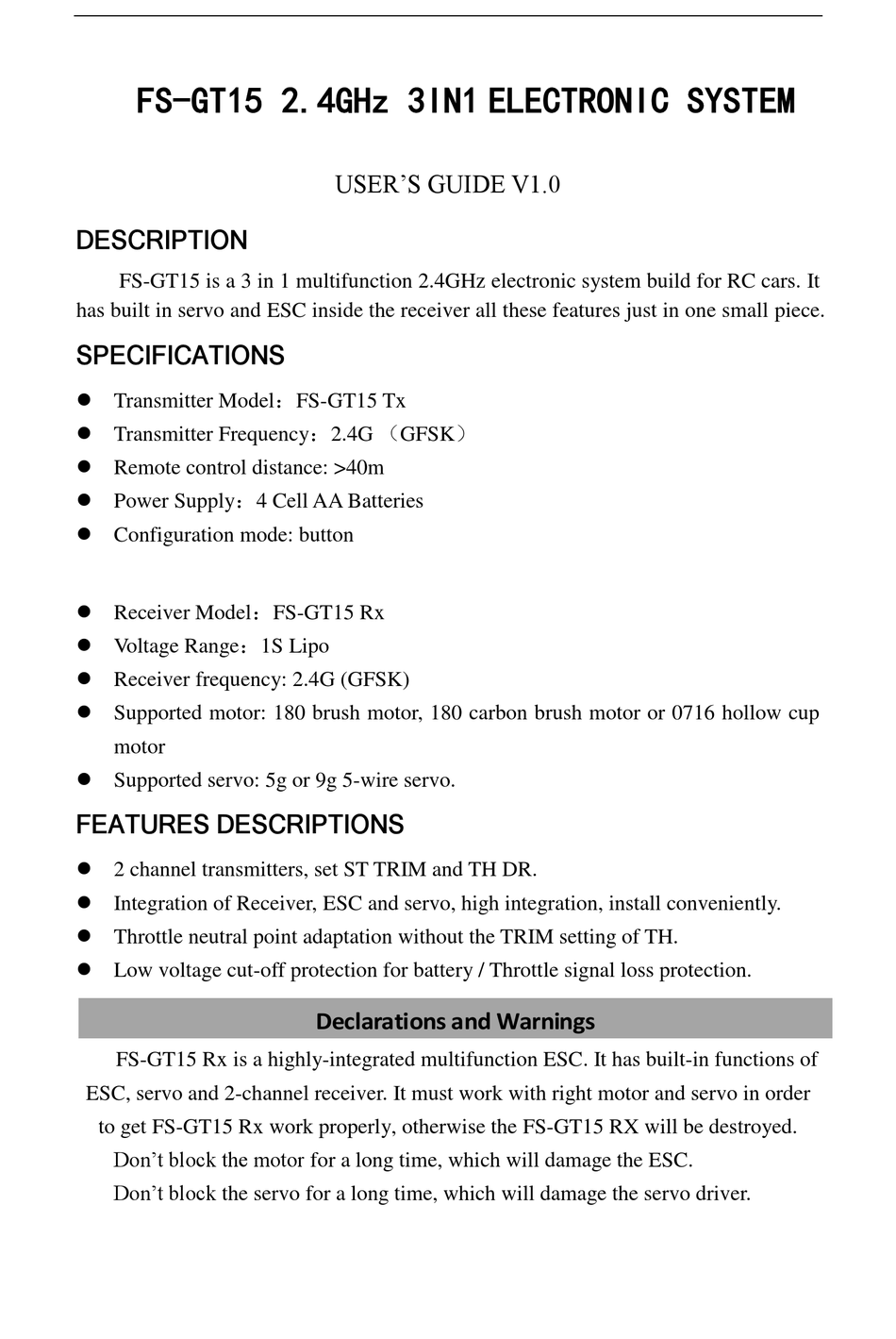

- Page 1 FS-GT15 2.4GHz 3IN1 ELECTRONIC SYSTEM USER’S GUIDE V1.0 DESCRIPTION FS-GT15 is a 3 in 1 multifunction 2.4GHz electronic system build for RC cars. It has built in servo and ESC inside the receiver all these features just in one small piece. SPECIFICATIONS ⚫...
- Page 2 Transmitter WARNING: BATTERIES ARE SUITABLE FOR 4 ALKALINE BATTERIES. ENSURE THAT THE POSITIVE AND NEGATIVE POLES OF THE BATTERIES INSTALLED CORRECTLY. INCORRECT POLARITY OF THE BATTERIES WILL CAUSE DAMAGE TO THE REMOTE CONTROL. LED INDICATES TRANSMITTER BATTERY VOLTAGE STATUS, WHEN ONLY ONE LED LAMP IS ON, THE BATTERY VOLTAGE IS LOW, PLEASE REPLACE THE BATTERY IN TIME!
- Page 3 ⚫ Charging socket：The charging interface of the receiver. The receiver is charged by the transmitter. Warning: Ensure that the positive and negative poles of the battery interface are correct, and the inverse will burn out FS-GT15 RX. Transmitter and Receiver Pairing Please follow the following steps: 1.
- Page 4 Proper installation and use are essential to ensure product performance. Summary: FS-GT15 Rx radio system is a high performance and multiple functions for RC cars. The built-in receiver and ESC make FS-GT15 Rx become a high degree of integration with complex functions product, please be sure to carefully read the user manual in using, avoid wiring error caused damage to the product.
- Page 5 Transmitter troubleshooting Troubles Possible Causes Solutions After power on, Batteries are installed Reinstall the batteries; change no LED lights up abnormal; Battery low the batteries ESC troubleshooting Troubles Possible Causes Solutions After power on, No power is drawn to the Check the connections no LED lights up ESC;...
- Page 6 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate equipment.
