Installation and mounting manual for EK-FC980 GTX Ti Strix Backplate
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

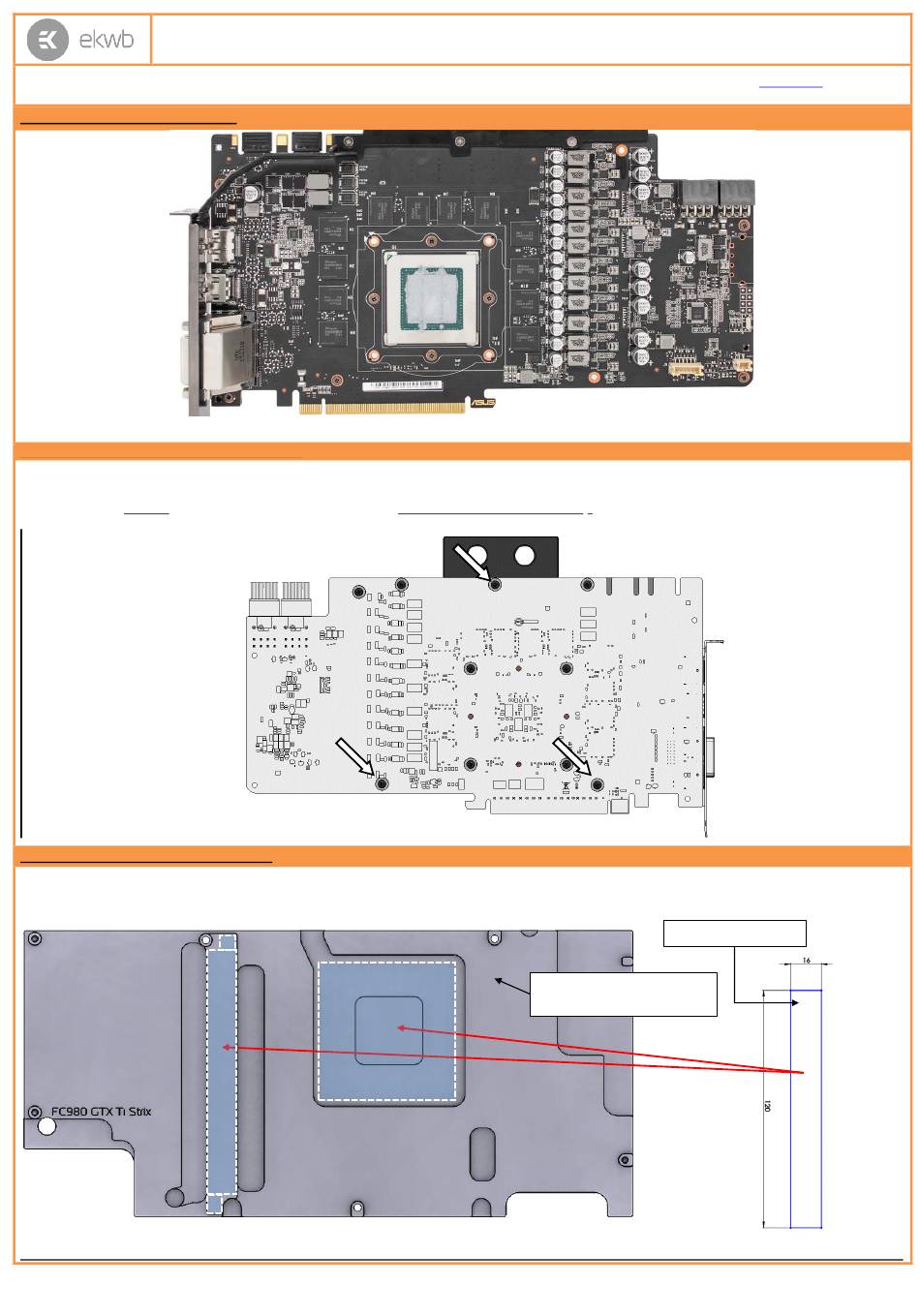

STEP 1: GENERAL INFORMATION. Sample picture of GeForce 980 GTX Ti Strix graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
EK-FC980 GTX Ti Strix Backplate is very easy to install. First install EK-FC980 GTX Ti Strix series water block according to its installation manual. If
you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be
removed. Please remove the three (3) M3x4 DIN7985 screws. Leave the washers on the pcb! (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS
EK-FC980 GTX Ti Strix Backplate features passive cooling of the printed circuit board and it's components therefore it is mandatory to install the
enclosed thermal pad. Please install enclosed 1mm thick thermal pad (Thermal Pad F – 1mm (120x16) as shown on the picture below. You may
need to trim the excess thermal pad.
All disclosures, notices and warranty conditions are being written on the back of the box.
Thermal PAD F 1mm
EK-FC980 GTX Ti Strix
Backplate
Revision 2.0. Released on 15
www.ekwb.com
for updates. Before
th
of September, 2015.
