KOSMOS
Omron Hardware Setup Guide
What will this guide teach me?
25 minutes

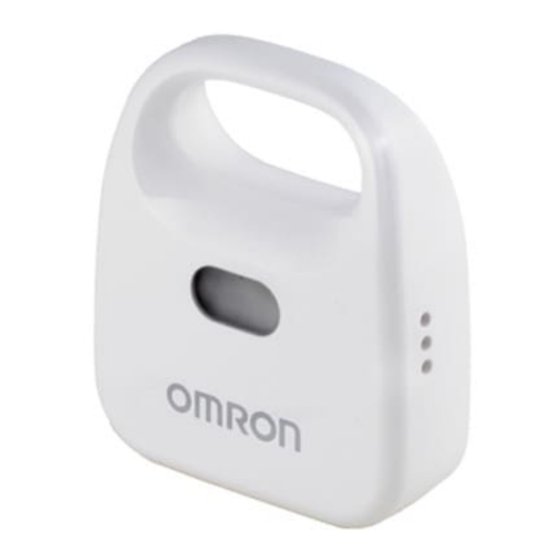

This guide contains step-by-step instructions on how to set
up the Omron 2JCIE-BL environmental bluetooth multi
sensor to connect to the Kosmos industrial IoT platform.
Once you've finished these steps, you'll be ready to start
gaining valuable insights from your sensor data using
Kosmos' dashboards, alerts, and more.
For questions about setting up your Kosmos IoT System,
please email
support@temboo.com
and we'll get back to
you as soon as possible.
Advertisement
Related Manuals for Omron KOSMOS
Summary of Contents for Omron KOSMOS
- Page 1 This guide contains step-by-step instructions on how to set up the Omron 2JCIE-BL environmental bluetooth multi sensor to connect to the Kosmos industrial IoT platform. Once you've finished these steps, you'll be ready to start gaining valuable insights from your sensor data using Kosmos' dashboards, alerts, and more.
-
Page 2: What You'll Need
What You’ll Need Kosmos Gateway Omron 2JCIE-BL USB Flash Drive (Raspberry Pi Model 3 B+) Bluetooth Sensor Raspberry Pi 5V 2.5A Ethernet Cable USB Micro SD Power Adapter Card Reader Micro SD Card (8+GB, U3 Speed) Questions? support@temboo.com Page 2... -
Page 3: Before You Get Started
Before You Get Started Before moving on to the next steps in this guide, please make sure that you've created your Temboo account and generated your Kosmos application files for your chosen hardware. If you haven't, head to temboo.com and complete those steps now! Questions? support@temboo.com... - Page 4 Gateway Application Setup First, install Etcher so that you can copy the Kosmos gateway application to your micro SD card: https://www.etcher.io Insert your micro SD card into your USB SD card reader and connect the card reader to your computer.
- Page 5 Kosmos gateway to an ethernet outlet. See instructions later in this guide if you want to connect your gateway via WiFi. Prepare USB Drive Copy the Kosmos config file temboo_kosmos_config.ini onto your USB drive. Questions? support@temboo.com Page 5...
- Page 6 Gateway Hardware Setup (Cont) Insert USB Drive Insert the USB thumb drive into any available USB port on your Kosmos gateway. Questions? support@temboo.com Page 6...
- Page 7 (Android and iPhone). Use your chosen bluetooth tool to scan for bluetooth devices in your local area. The Omron sensor can be found under the device name EnvSensor-BL01. Select this device to view its services and characteristics. Change the advertisement setting (characteristics UUID: 0x3042) by writing the value 0x02 to byte 8.
- Page 8 Power Up The Omron Sensor Power Up Omron 2JCIE-BL Insert battery at back of sensor Remove the battery cover from the back of the sensor and insert the 3 VDC coin cell lithium battery (CR2032). After inserting the battery, the...
- Page 9 View Your Kosmos Sensor Data Visit Your Dashboard Log into your Kosmos account and navigate to the dashboard: https://temboo.com/devices Monitor Gateway Status When the gateway connects, a green dot will appear beside the name of your Kosmos application. The gateway takes ~90 seconds to connect.
- Page 10 Kosmos web dashboard. Fastest setup time Most reliable connection To use WiFi to connect your Kosmos gateway to the internet, first remove the USB thumb drive from your gateway and plug it into your computer. Locate the temboo_kosmos_config.ini file on the USB thumb drive and open it with your favorite text editor.
-
Page 11: Troubleshooting Tips
If the gateway is still offline after 10 minutes, try restarting the gateway to connect to Kosmos. Your graphs have no data. Wait at least 10 minutes after powering up your gateway for data to arrive in your graphs.
