- Page 1 Telrad CPE12000 User Manual Telrad CPE-12000U-PRO-1D-5.x-Conn. User Manual CPE User Manual V1.5...
-
Page 2: Table Of Contents
Telrad CPE12000 User Manual Index INDEX ..................................2 NOTE ..................................4 1. P RODUCT VERVIEW ..............................6 1.1. LTE S PECIFICATION ..............................6 1.2. B ASIC PECIFICATIONS ............................6 1.3. E LECTRICAL AND NVIRONMENTAL PECIFICATION ....................7 2. P RODUCT ACKAGE ..............................7 3. M ............................8 ECHANICAL PECIFICATIONS 4. - Page 3 Telrad CPE12000 User Manual 5.6.2 Iperf ................................22 5.6.3 Traceroute ..............................23 6. P RODUCT HIPPING ACKAGE ...........................24 7. R EVISION ISTORY ..............................25 CPE User Manual V1.5...
-
Page 4: Note
Telrad CPE12000 User Manual Note The content of this User Manual has been made as accurate as possible. However, due to continual product improvements, specifications and other information are subject to change without notice. This device must be installed by professional installer. - Page 5 Telrad CPE12000 User Manual Prerequisite Skills and Knowledge To use this document effectively, you should have a working knowledge of Local Area Networking (LAN) concepts and wireless Internet access infrastructures. In addition, you should be familiar with the following: ● Hardware installers should have a working knowledge of basic electronics and mechanical assembly, and should understand related local building codes.
-
Page 6: Product Overview

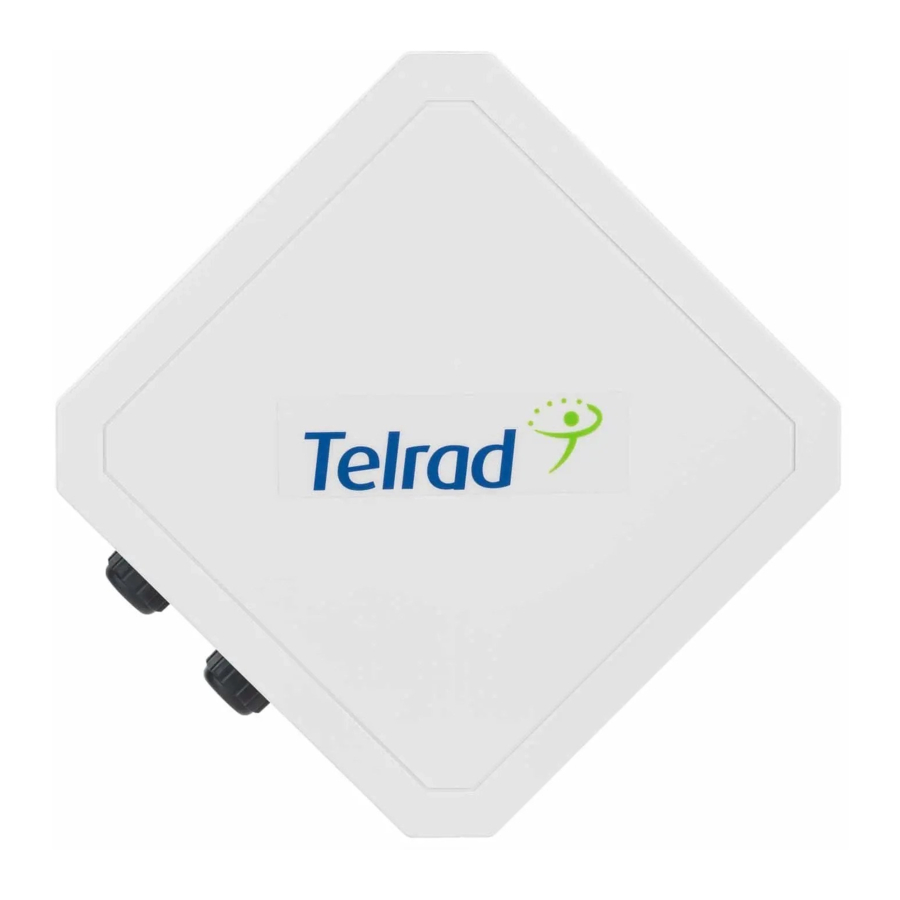

Telrad CPE12000 User Manual 1. Product Overview This CPE supports LTE air interface with popular operating systems like Windows, Linux and Mac. Once you have identified the place for CPE, insert USIM card supplied by your service provider at the appropriate place, plug in the adapter in the AC socket and DC in the power port of CPE. -
Page 7: Electrical And Environmental Specification
Telrad CPE12000 User Manual Water & Dust Protection IP67 Operating Temperature -40 to +60 ºC Humidity 0 to 95% 1.3. Electrical and Environmental Specification Item Specification Operating Temperature -40ºC to +60ºC Operating Humidity 0 to 95% Lightning protection ability Common mode 6kV /Differential mode1.5kV 2. -
Page 8: Mechanical Specifications
Telrad CPE12000 User Manual 3. Mechanical Specifications Figure 1: CPE12000 Bottom View Item Description Size 330(L) x 330(W) x 75(H) mm(IP67) Color Off-White Power, ETH, SIM, 5 RF CINR bars RJ45 connector 1 Giga port, need support passive POE 56V... - Page 9 Telrad CPE12000 User Manual LED Indicators Status LED name Location Color LED Behavior Indication LED List Blue Blue Blue Blue Steady ON Blue Blinking Blue Blue Steady ON Blue Blinking when On-hook Blue RF Link Status LED Bar: When CPE is power on, LED bar indicates SINR...
-
Page 10: Login
Telrad CPE12000 User Manual 4. Login Open your Web browser and enter 192.168.254.251, Default is username / passwords are: admin / admin for end-user Figure 4-1 Login 5. Home page 5.1 LTE There are 6 function on this page, they are “Overview”, ”ND & S” , ”PLMN Selection”, “eNB Settings”, “PDNs Settings”, “PIN Management”... -
Page 11: Overview
Telrad CPE12000 User Manual 5.1.1 Overview There are more LTE information on this page, they are “Serial Number”, “IMEI”, “IMSI”, “Supported Band”, “Firmware version” and so on. Figure 5-1-1 Overview 5.1.2 ND&S On this page include “Uplink QAM64”, “Scan Mode” and “Band”... -
Page 12: Plmn Selection
Telrad CPE12000 User Manual Figure 5-1-2 ND&S Uplink QAM64: Enable/Disable Scan Mode: Full band/Dedicated Earfcn Band: Supported Band selection (Default band is 46) 5.1.3 PLMN Selection On this page, include “Network Mode “and “Allow Roaming” Figure5-1-3 PLMN Selection ... -
Page 13: Pdns Settings
Telrad CPE12000 User Manual Figure5-1-4 eNB Settings Preferred eNB List: Enable/ disable “preferred” selection checkbox. When CPE performs scan it should build a list of all found eNBs, there have Few regions – each region is sorted (top down) Region A (top priority) –... -
Page 14: Pin Management
Telrad CPE12000 User Manual “ ” button. Figure 5-1-5 Bearer Settings 5.1.6 PIN Management From this page, you can see the USIM card status and PIN status. The default PIN status is disabled; you can input the correct PIN to enable the PIN function. -
Page 15: Internet
Telrad CPE12000 User Manual Figure 5-2-1-1 Overview 5.2.2 Internet On this page, include “Connection Mode”, “NAT”, “MGMT and Date Interface”, and “MTU”. Figure 5-2-2-1 Internet Connection Mode: Route/NAT, L2 Bridge(GRE), L3 Bridge NAT: Default Enable MGMT and Date Interface: Combine/ Separate 5.2.5 LAN... -
Page 16: Vpn
Telrad CPE12000 User Manual Figure 5-2-3-1 LAN LAN Reset: Restore of LAN default setting. Duplex: Autot/Full/Half Max Bit Rate: 10Mbps/100Mbps/1000Mbps Local IP Address ： Enter the IP address of your router (factory default: 192.168.254.251). Subnet Mask：An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. -
Page 17: Qos
Telrad CPE12000 User Manual Figure 5-2-4-1 VPN 5.2.7 QoS On this page, include “DSCP Configuration” and “TOS Configuration”, you can change QoS setting by manual. Figure 5-2-5-1 QoS Data Traffic DSCP: Default value is 0. The range is 0~63. -
Page 18: Dmz
Telrad CPE12000 User Manual Figure 5-3-1-1 Port Forwarding 5.3.2 DMZ From this page, you can configure a De-militarized Zone (DMZ) to separate internal network and Internet. Figure 5-3-2-1 DMZ DMZ Enable: Default value is Disable DMZ Host IP address: The IP address of your PC. -
Page 19: Management
Telrad CPE12000 User Manual 5.4 Management 5.4.1 Device Management On this page, include “ Allow ping from WAN ”, “Telnet Service”, “ SSH Service”, “ Access Control ”and “ HTTPs From WAN”. Figure 5-4-1-1 Device Management 5.4.2 TR069 On this page, include “TR069 Enable” and “TR069 Configuration”... -
Page 20: Snmp
Telrad CPE12000 User Manual TR069: Default value is Enable ACS Interface: Default value is “lte0pdn0” ACS Port: Default value is “7547” ACS URL: Default “ http://cpe.tr69.management.server:8080/ftacs/ACS” ACS Username: Default value is “ quickynikynyoky” ACS Password: Default value is “ quickynikynyoky”... -
Page 21: Ntp
Telrad CPE12000 User Manual new password. Figure 5-5-1-1 Password 5.5.2 NTP On this page, include “NTP Server”, “ Specify NTP Server”, “ Alternate NTP Server” and “NTP Synchronization”, you can change setting by manual. Figure5-5-2-1 NTP Settings 5.5.3 Configuration Management Clicking the “Export”... -
Page 22: Firmware Update
Telrad CPE12000 User Manual 5.5.4 Firmware Update On this page, you can upgrade the current Router version from the local PC. 30s is needed to complete the whole upgrade process, and then the device will reboot automatically. Figure 5-5-4-1 Firmware Update 5.6 Maintenance... -
Page 23: Traceroute
Telrad CPE12000 User Manual Figure 5-6-2-1 Iperf Status: Default value is “Enable” Server Address: Default value is “8.8.8.8” Server Port: Default value is “5001”, the range is 1024~65535 Management Port: Default value is “5001”, the range is 1024~65535 ... -
Page 24: Product Shipping Package
Telrad CPE12000 User Manual 6. Product Shipping Package Main Lable On Main Label, you can see IMEI/MAC/SN on it. Figure 1: Main Label Gift Label On Main Label, you can see IMEI/MAC/SN on it. Figure 1: Gift Label CPE User Manual V1.5... -
Page 25: Revision History
Telrad CPE12000 User Manual Revision History Author Revision Changes Date Fhan Create Draft 2018-12-20 Fhan Add customer issue 2019-01-08 Fhan Add customer issue 2019-01-10 Telrad Modifications 2019-01-13 XPpan Add customer issue 2019-01-23 JiaWang Change menu 2019-06-17 CPE User Manual V1.5...
