Summary of Contents for Tronios Beamz

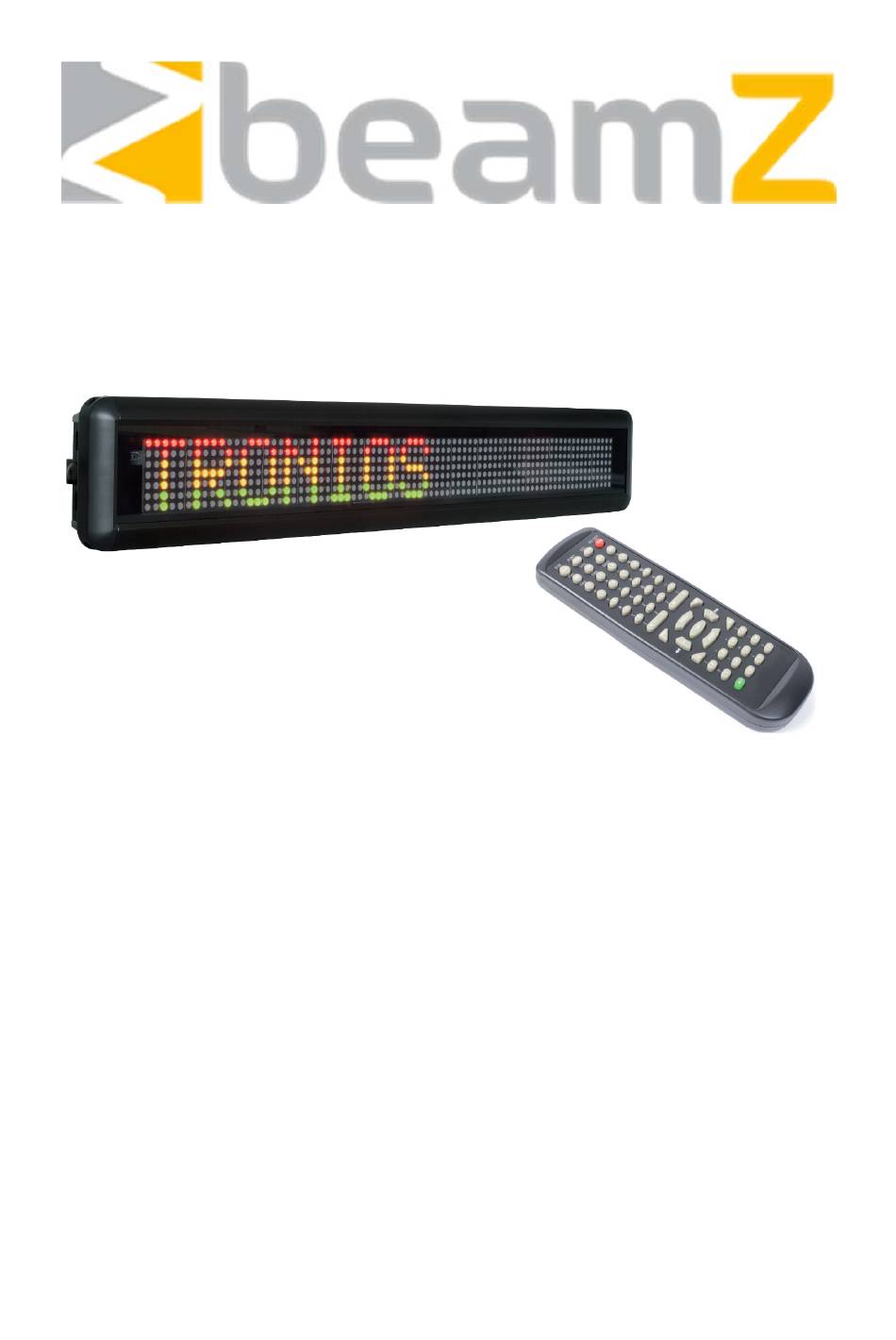

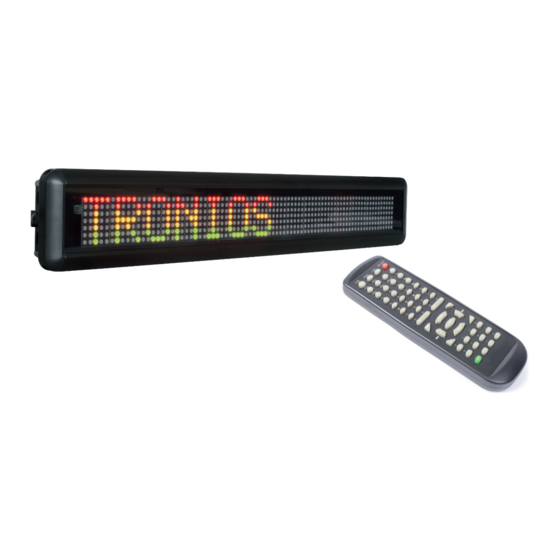

- Page 1 153.130 / 153.138 / 153.141 / 153.142 LED Moving Message Display INSTRUCTION MANUAL...
-
Page 2: Safety Information
SAFETY Congratulations to the purchase of this Moving message board. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. - Page 3 XCMS7.62-7*80 24” 2.1” 26” 3.8” 1.34” (609.6mm) (53.34mm) (660mm) (97mm) (34mm)
- Page 4 General information You can operate the sign in two ways: By using a hand-held remote control By using personal computer Using a remote control to operate your sign A remote control is a hand-held keyboard used to operate the sign. This manual shows you how to program messages on your sign using a remote control Using a computer to operate your sign To do this, you’ll need special connectors and computer software as following shown:...
- Page 5 Basic Sign Operation Turning a sign on and off When you plug in the sign’s power supply, the sign starts up automatically. On the orther hands, in order to turn the sign off, you can unplug the power supply or use the remote control. System requirement The computer must be: ...
- Page 6 Letter Name Sub-menu Description File Clear Clear all the contents in text edit area Open Open the old files (*.sdv) Save Save the file of the current text edit area for later unsign Save as Save the file of the current text edit area as a new file Exit Exit the messaging software...
- Page 7 Save Save the file of the current text edit area (*.sdv) for later using Graphic Edit Create custom 7x80 (height x width) pixels graphics. Note: Up to 8 custom graphics can be created Font 7 different kind of fonts Color 16 different kind of color combinations Mode Speed...
- Page 8 Item Power on / off. If there is no file in 01 to 99, it will run file 00. If there is file in ON/OFF 01 to 99 it will show the last saved file. Enter the Edit Program Mode. Select 01 to 99 to enter message. PROG Use PREV and NEXT to select (a) to (d) UNUSE PASS.
- Page 9 (1) In edit program mode, press RUN to save and run the current message. (2) In display mode, press RUN and enter 01 to 99 to select other messages for display. Programming a sequence file. Cursor direction pointer K toggles cursor on/off Note: the direction pointer only works in graphic edit mode Beginning Messaging Example 1 –...
- Page 10 Programming Time and Date Update corrected time and date from PC clock. Programming filename messages in sequence In this example, it leverages the power of sequencing to achieve desired results. We’ll display message by their filesnames (FILE01, FILE03) in certain order and disappear at times you specified. Note: Displaying messages in time order will work only as long the sign has power.
- Page 11 (2) Select 0, totally there are 10 different kind of sequence files, from 0 to 9, which you can (5) Select FILE04 (6) Display on Wednesday only (7) Click setting to update the changes (3) On time is 08:20 (4) On time is 17:00 (1) Click Lattice icon to edit your graphic or logo.
- Page 12 (3) Create your graphics in this area. Note: The graphic will be automatically saved. Note: Click left mouse to draw dot by dot. Note: Click right mouse to delete a dot. (2) Select the palette for different color. The preview of graphic is the same as the (5) The total numbers of the graphics had...
-
Page 13: Timer Options
(8) Double click the graphic to add into the current graphic list. Note: The maximum no. of user defined graphics can be installed in the sign is 8, from Graphic A – Graphic H. (10) Click Send …. To (9) Click Save to store the current (11) Close the window upload the current graphic list as “list”... - Page 14 Set the Hourly Alarm On Set the Hourly Alarm Off To power on the sign at 08:00 automatically To power off the sign at 18:30 automatically Note that: You may only set the timer functions while running your message sign.
-
Page 15: Ce Declaration Of Conformity
CE – Declaration of Conformity Importer: TRONIOS BV Bedrijvenpark Twente 415 7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands Product number: 153.130_153.138_153.141_153.142 Product Description: Moving Message Boards Regulatory Requirement: EN 60950-1 EN 55022 EN 55024 EN 61000-3-2/-3-3 The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.
