Summary of Contents for Spruce 28098

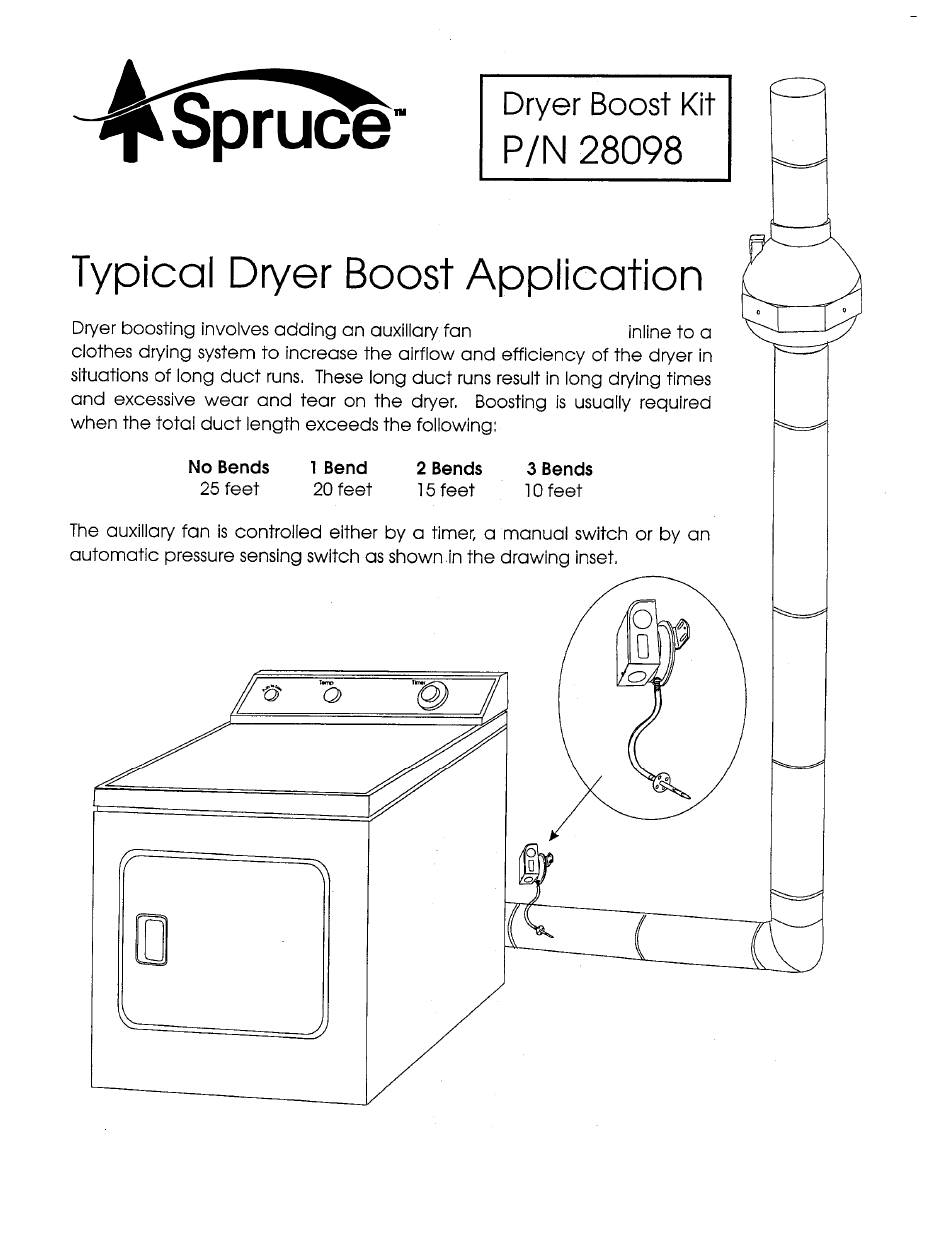

- Page 1 ( RB110 ) Page 1 of 4 IN019-1 Rev B...
- Page 2 Dryer Boost Kit Installation Instructions IN019-1 Rev B 1.0 Auxiliary Fan Location The auxiliary fan should be mounted with a minimum of 15 feet of ductwork from the outlet of the dryer to the inlet of the fan. Failure to observe this distance may result in excessive lint build-up in the fan unit! 2.0 Auxiliary Fan Mounting 2.1).
- Page 3 5.0 Installation Troubleshooting If the auxiliary fan fails to start when the dryer cycle begins check the following: Verify the AC voltage at the pressure switch . The pressure switch-point is approximately 0.1” WC. The dryer must generate this positive pressure to close the switch and start the auxiliary fan. If not, check the probe and connecting tubing for blockage. You may blow gently into the tubing to check the switch operation.
- Page 4 Spruce will replace any Kit which fails due to defects in materials or workmanship. The Kit may be returned (at owner’s cost) to either the point of purchase or the Spruce factory. The point of purchase may require proof of purchase or a bill of sales for replacement.
