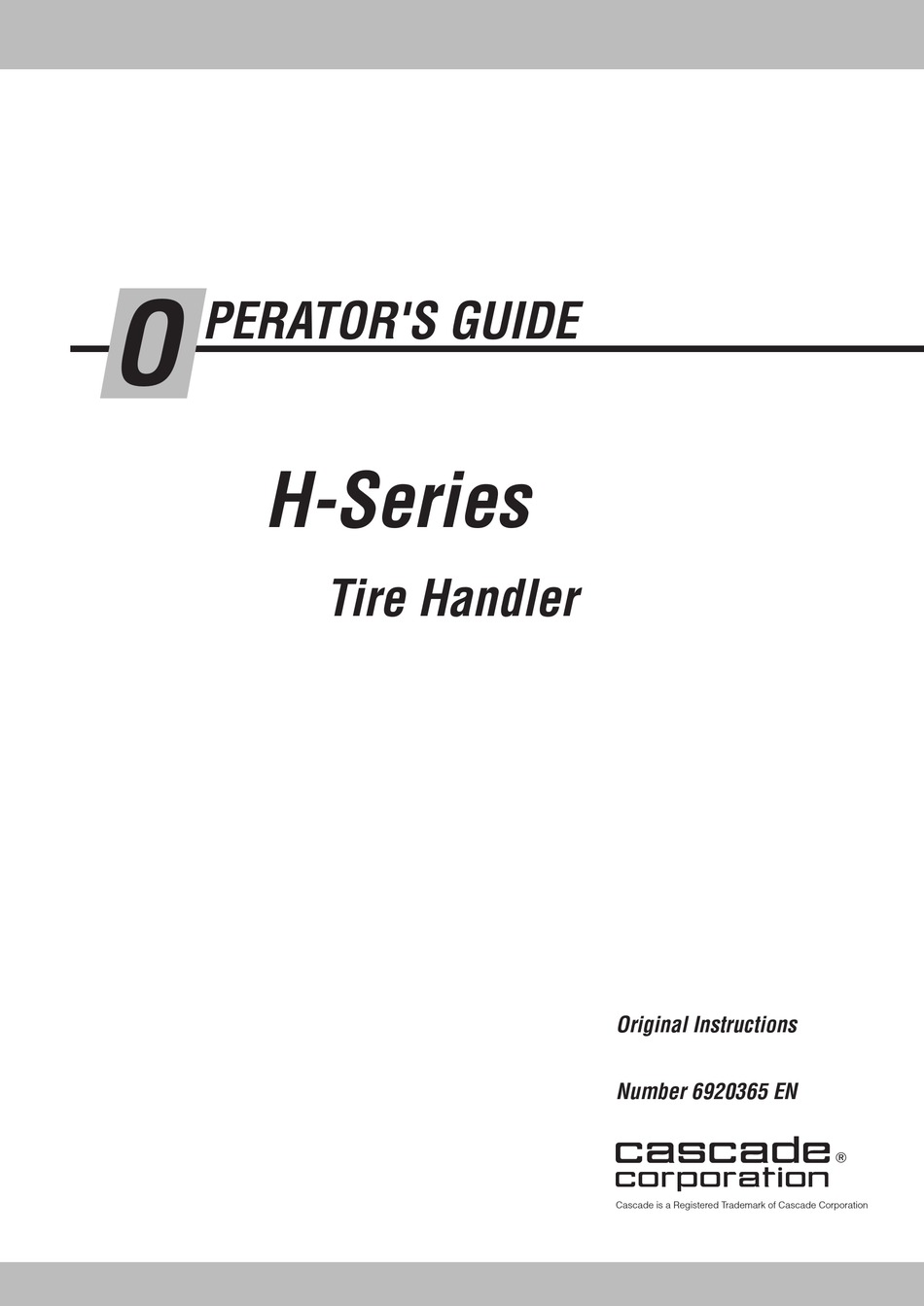

- Page 1 PERATOR'S GUIDE H-Series Tire Handler Original Instructions Number 6920365 EN cascade corporation Cascade is a Registered Trademark of Cascade Corporation...
-
Page 2: Table Of Contents
CONTENTS Page WARNING: Rated capacity of the Introduction truck/attachment combination is a Safety Rules responsibility of the original truck Daily Inspection manufacturer and may be less than shown on the attachment nameplate. Clamp Operation Consult the truck nameplate. Handling Basics Handling loads using split-arm clamp WARNING: Do not operate this attachment unless you are a trained... -
Page 3: Safety Rules
SAFETY RULES Industrial Lift Trucks No riders No reaching through mast No standing under load Tilt With load Raise 3 in. (8 cm) No load RAMPS Traveling Motor off, park, lower load empty No parking on ramp No turning on ramp Watch clearances RC0027.eps TRAFFIC... - Page 4 SAFETY RULES Handling Loads: Load must be secure prior to lifting and transporting. Limit swinging clamp with raised load. LOAD WEIGHT Make sure load is centered and secure prior to lifting and traveling. Check for load Load weight must not exceed combined truck/ slippage (see Load attachment capacity (see truck nameplate).
-
Page 5: Daily Inspection
DAILY INSPECTION Check items each day. Report problems to your supervisor. Check clamp force prior to each operational shift. See Service Manual for troubleshooting, maintenance and repair procedures. Upper hook engagement Pad edges Fasteners RC0029.eps Safety decals & nameplate Cylinders and Lower hook hoses for leaks engagement... -
Page 6: Clamp Operation
CLAMP OPERATION AUXILIARY VALVE FUNCTIONS Tilt forward WARNING: Truck control handle Hoist down and attachment function activation shown here conforms to ISO 3691 recommended practices. Failure to follow these practices may lead to serious bodily injury or property damage. End user, dealer and OEMs should review any deviation from the practices for safe operation. -
Page 7: Handling Basics
HANDLING BASICS CLAMPING LOAD Center Clamp pads on load RC0033.eps RC0032.eps Clamp through load centerlines CARRYING 3-4° Tilt LOAD RC0037.eps 30 cm RC0036.eps Load vertical, tilted back CLAMP FORCE Heavy Light Load Load Use proper clamping force for load being handled Also, see the following: •... -
Page 8: Handling Loads Using Split-Arm Clamp
HANDLING BASICS Handling loads using split-arm clamp Center Clamp pads between loads WARNING: Engine speed MUST be CAUTION: Clamp multiple loads increased when clamping or releasing securely and properly prior to lifting or loads with Split-Arm Clamps. traveling. RC0038.eps Position the load center of gravity as close as Recommended load width possible to the center... -
Page 9: Upending
HANDLING BASICS Upending Center clamp pads vertically on load, if possible RC3740.eps RC3763.eps Clamp through load centerline CAUTION: Verify the clearance between the bottom of the load and mast prior to tilting the load forward. Raise load to clear ground when tilted RC3741.eps RC3743.eps Tilt load forward... -
Page 10: Vertical Pickup, Transport, Unloading
VERTICAL PICKUP , TRANSPORT, UNLOADING Position Clamp parallel to and centered on load B) Drive forward, touch A) Adjust short arm short arm to load for load diameter RC2167.eps 5-10 cm C) Clamp with long arm RC0041.eps Raise, tilt back for transport Tilt vertical before lowering to floor 3-4°... -
Page 11: Bilge (Horizontal) Pickup, Transport
BILGE (HORIZONTAL) PICKUP Square truck to load, position Tilt, lower Clamp to ground Clamp parallel to load 3-4° Short arm down RC0046.eps RC0045.eps A) Tilt, raise load A) Drive forward, touch short arm to load B) Clamp with 3-4° long arm 5-10 cm RC0047.eps RC0049.eps... -
Page 12: Stacking, Unstacking
STACKING, UNSTACKING A) Drive slowly forward, touch A) Raise load for 3-4° B) Tilt back for short arm to load clearance transport 30 cm RC2160.eps 5-10 cm B) Clamp with long arm RC1010.eps A) Slowly approach stack A) Square truck B) Set load to stack, down... -
Page 13: Unloading
UNLOADING TRUCK TRAILERS (BREAKOUT) Tilt, center Clamp to Position arms to load diameter, 1st load CAUTION: Trailer must be short arm toward wall inspected for damage before unloading. Short Arm Dockplate required RC0055.eps CAUTION: Block RC0054.eps RC0054.eps trailer wheels Drive forward, angle truck to grip Clamp 1st load, move back 1st load behind centerline for clearance to re-clamp... -
Page 14: Boxcars Breakout - Fixed Frame Clamp
UNLOADING BOXCARS (BREAKOUT) Tilt, center Clamp to 1st load Position arms to load diameter RC0061.eps RC0060.eps RC0060.eps Drive forward, angle truck to grip load behind centerline Clamp 1st load, move back for clearance to re-clamp RC0062.eps RC0063.eps Dockplate required Arms not wedged Re-clamp through load centerline with long Raise, tilt back for transport arm, withdraw load... -
Page 15: Loading Truck Trailers
LOADING TRUCK TRAILERS Rotate load to position CAUTION: Trailer short arm toward wall must be inspected for damage before loading Dockplate required CAUTION: Block trailer wheels RC0065.eps Drive down center of trailer, tilt vertical, brake slowly 30 cm RC0066.eps Position loads together / use spacers to A) Reposition truck to place loads prevent load shifting against wall... -
Page 16: Boxcars
LOADING BOXCARS B) Tilt to vertical A) Rotate load to position short arm toward wall Dockplate required RC0069.eps A) Reposition truck to place loads against wall RC0070.eps B) Lower to floor, release long arm Position arms to load diameter, grip last loads behind centerline RC0061.eps... -
Page 17: Tower Clamp Loading, Transport, Unloading, Stacking
TOWER CLAMP Loading, Transport, Unloading, Stacking A) Align truck with loads A) Approach loads slowly B) Fully open arms B) Touch center pads to loads RC2028.eps RC1870.eps (shown: powered center arms) B) Adjust telescoping upper clamp arms to center on upper load A) Center lower clamp arms on lower loads... - Page 18 TOWER CLAMP Loading, Transport, Unloading, Stacking Lift load, proceed slowly CAUTION: Truck balance may be critical when turning with full loads 30 cm RC2038.eps A) Check Clamp Shut Off Unused Arms Pads are vertical RC2556.eps No L-shaped loads 10 cm B) Check clearances –...
-
Page 19: Load Troubleshooting
LOAD TROUBLESHOOTING IF LOAD IS SLIPPING: Check hydraulic supply pressure and clamp force, see following: Check weight • Appropriate Clamp Service Manual of load is within • Clamp Force Indicator capacity range of Operator Guide 6920365 Clamp • Establish Clamp Force TB 284 (See nameplate) Check condition and Re-clamp load,... -
Page 20: Safe Operation And Maintenance
SAFE OPERATION AND MAINTENANCE Industrial Trucks and Attachments WARNING: When operating and maintaining industrial trucks equipped with attachments, you should pay particular attention to the following information. You should be familiar with this information for truck and attachment operation. Ask your employer for complete operation information. - Page 21 BLANK...
- Page 22 15 Ra Ora Drive Pte. Ltd. Rocklea, QLD 4107 East Tamaki, Auckland 18 Tuas South Street 5 Australia New Zealand Singapore 637796 Tel: 1-800-227-223 Tel: +64-9-273-9136 Tel: +65-6795-7555 Fax: +61 7 3373-7333 Fax: +64-9-273-9137 Fax: +65-6863-1368 © Cascade Corporation 2019 02-2019 Number 6920365_EN...
