QUICK START GUIDE
Galileo
616 Remote Computer Control
™
To control the Galileo 616 remotely from a computer:
1. Attach the Galileo 616 to the computer's Ethernet port.
2. Configure the computer's network settings.
3. Configure the Galileo 616's network settings.
4. Launch and configure the Compass control software.
Attaching the Galileo 616 to Your Computer
The Galileo 616's RJ-45 port connects to a standard computer Ethernet port with shielded
CAT-5e cables. The Ethernet connection allows the unit to be controlled remotely from a Mac
or Windows computer running the Compass control software. Bi-directional communication
ensures that the current settings, whether changed from the Galileo 616 front panel or from
the Compass software, are always in sync.
RJ-45
Connector

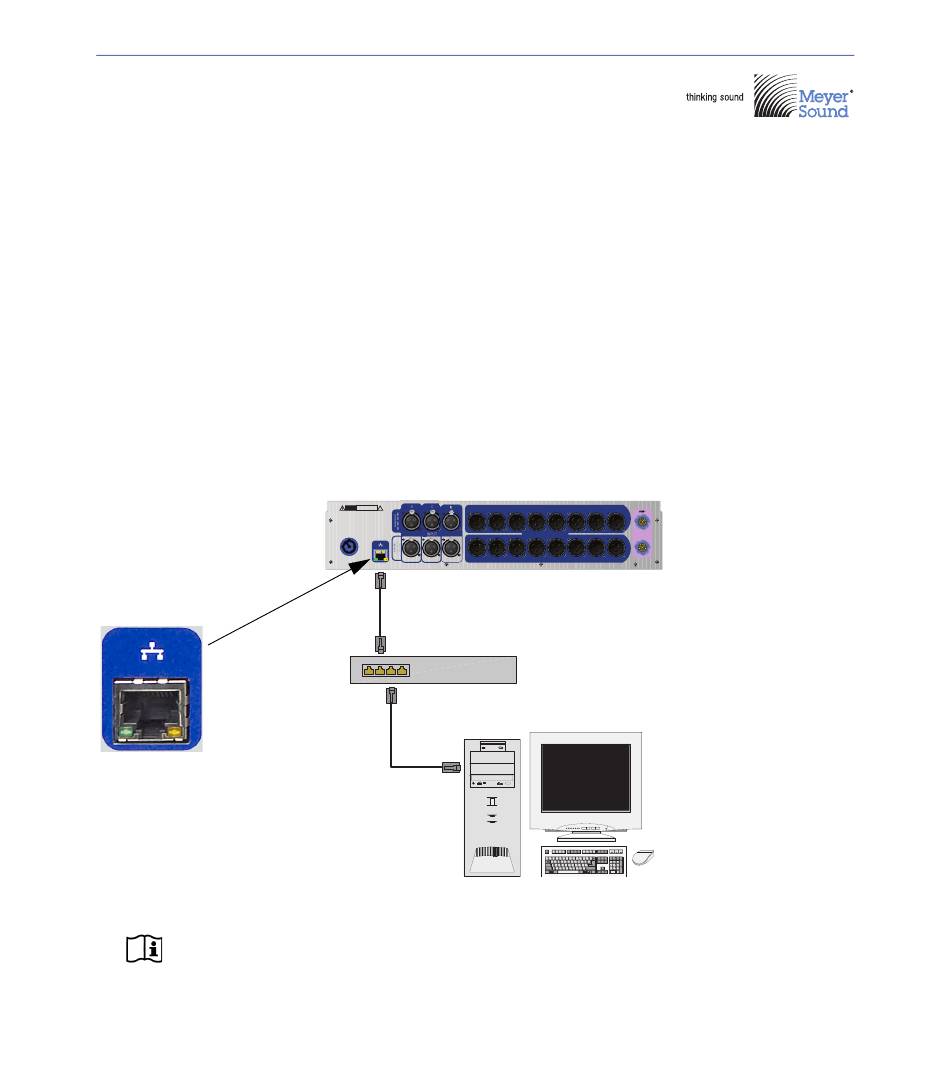

Galileo 616 Connected to Computer
NOTE:
When connecting the Galileo 616 to a computer through a router, make
sure the router's IP address is appropriately configured (192.168.0.1).
RISK OF ELECTRIC SHOCK
E
CAUTION
!
1
2
DO NOT OPEN
WARNINGS: THIS PRODUCT MUST BE GROUNDED. TO ENSUR E
PROPER OPER ATION, ALLOW AT LEAST 2 INCHES CLEARANCE
FROM SIDE FANS AND ADEQU ATE VENTIL ATION. NO OPER ATOR
SERVICEABLE PARTS INSIDE. REFER SE RVICING TO QUALIFIED
PERSONNEL. TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE
AC INPUT 100-240V~, 50-60Hz, 375W Max.
B
D
F
9
10
Shielded
CAT-5e
cables
Computer
(192.168.0.10)
INTEGRATION TOOLS
3
4
5
6
7
8
Connect to SIM
OUTPUT
3022 or 3088 only
Galileo 616
(192.168.0.170)
11
12
13
14
15
16
Network switcher or
wireless router (192.168.0.1)
t n i
r P
r c
S
l l o
N
m
u
C
a
p
s
S
c
o r
l l
E
c s
F
1
F
2
F
3
F
4
F
5
6
F
F
7
F
8
9
F
F
1
0
F
1
1
1
F
2
c
e r
S
n
e
o L
c
k
P
u a
s
e
L
k
c
o
o
L
k
c
L
c
k
o
_
~
!
@
#
$
%
^
&
*
(
)
+
|
P
g a
e
N
u
m
-
`
1
2
3
4
5
6
7
8
9
0
-
=
\
e s
n I
t r
H
o
e
m
U
p
o L
c
k
/
*
Q
W
E
R
T
Y
U
I
O
P
{
}
P
e
g a
7
8
9
T
b
a
[
]
e l
e
D
e t
n E
d
D
o
w
n
H
o
m
e
P
U
p
g
:
+
C
a
p
s
k c
L
o
A
S
D
F
G
H
J
K
L
"
E
t n
r e
4
5
6
;
'
Z
X
C
V
B
N
M
<
>
?
1
2
3
S
h
t f i
,
.
/
S
t f i
h
n E
d
P
g
D
n
0
/
.
t n
E
r e
C
l r t
A
t l
A
t l
C
l r t
I
s n
D
l e
1
