Integral LED ILBTE059 Installation Instruction

Product code
ILBTE059
ILBTE060
ILBTE061
ILBTE062
ILBTE063
ILBTE064
ILBTASK065
Thank you for purchasing an INTEGRAL LED product. When installed correctly this unit will provide years of service – with no
lamp changes required. For support or warranty information please see integral-led.com. Always turn off circuit power at the
distribution unit before installation and maintenance. Please ensure that the power cannot be connected inadvertently.
Important Details – Please read prior to installation
Ensure the AC/Mains power is NOT connected and cannot be unexpectedly reconnected during installation.
1. This product must be installed by a competent qualified electrician in accordance with the instructions provided and in compliance with
recognised electrical and safety regulations relevant to the country in which it is being installed.
2. This product is suitable for installation on surfaces with normal flammability e.g. wood, masonry. Before making the fixing hole(s),
check that there are no obstructions hidden beneath the mounting surface, such as pipes or cables. It is not suitable for use on highly
flammable surfaces or in a flammable atmosphere.
3. For ceiling, wall mounted or suspended installations please follow "Installation instructions" below. For surface mount, this product
must be securely fixed to the mounting surface using the brackets, screws and wall plugs supplied (Fig. 1). The screws and wall plugs are
suitable for "masonry" only.
IMPORTANT! This product is a Class II device and requires no earth connection.

Installation Instructions

1. The unit is pre-wired with cable at the rear of the product to connect to incoming mains cable. The length of pre-wired cable equals
half the batten length plus 10cm.
2. Connect the mains supply cable to the pre-wired cable of the batten using suitable connectors. Only LIVE (brown) and NEUTRAL (blue)
are required.
Surface mount installation (Fig. 2 - 5)
1. These can be ceiling and wall mounted.
2. Secure the supplied brackets to the surface as shown in the diagram and press the batten carefully onto the brackets.
3. For secure sensor operation the product should be ceiling mounted. Fix the brackets using the fixing supplied or alternative suitable
fixings to secure the bracket in place. Please ensure brackets are in line and fixed perpendicular to the desired position for the central
longitudinal axis of the product. Ensure the brackets are in line and at a spacing within the overall length of the product to be installed.
Place a minimum distance of 400mm apart.

Suspended installation

Requires suspension mount kit ILBTASK065 which can be ordered separately.
INSTALLATION INSTRUCTION
for Integral Value+ LED battens
3 Year Warranty
Function
2ft 20W 3000K LED Batten
4ft 40W 3000K LED Batten
5ft 60W 3000K LED Batten
2ft 20W 4000K LED Batten
4ft 40W 4000K LED Batten
5ft 60W 4000K LED Batten
suspension kit 2 wires

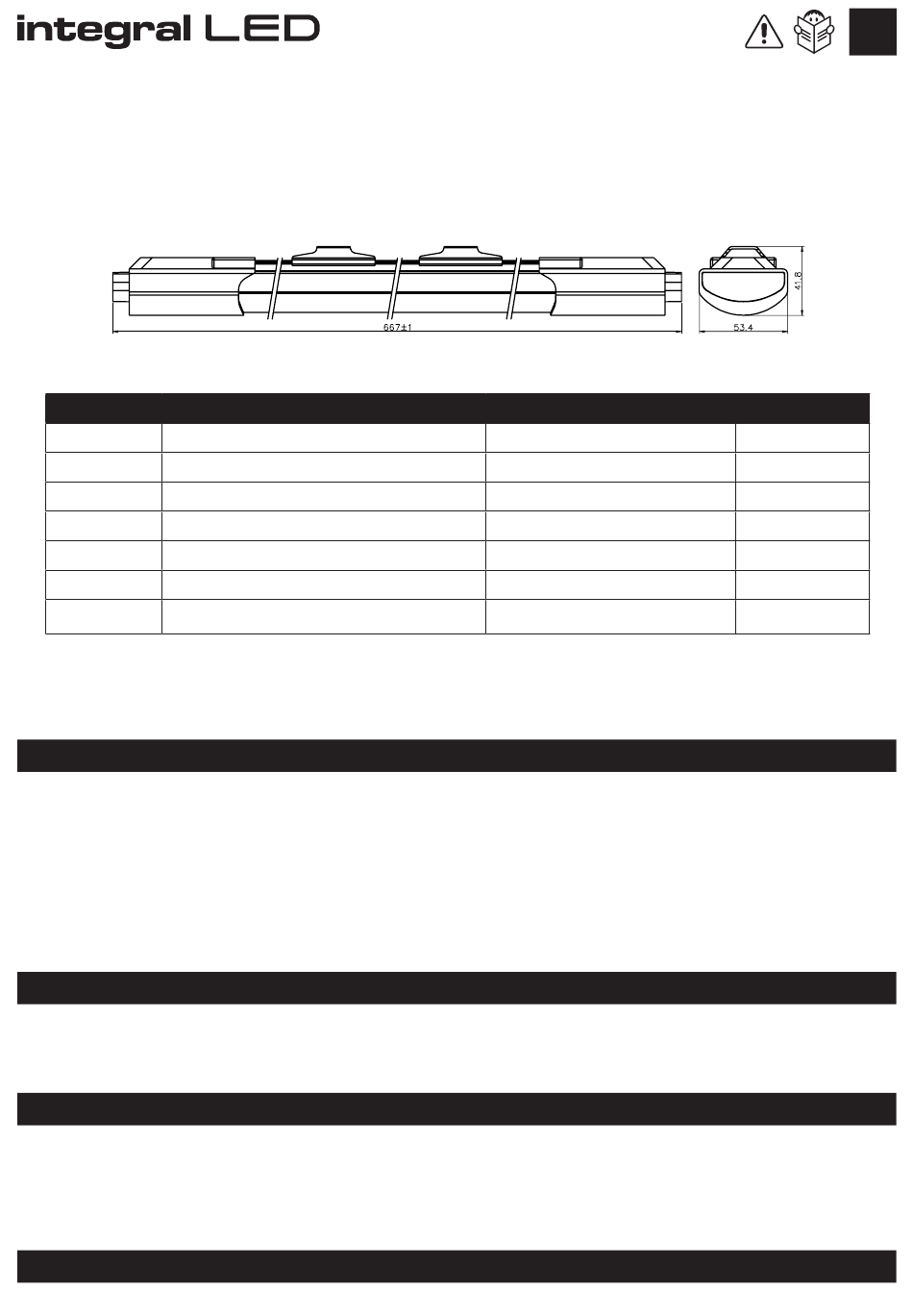

Product Dimensions (mm) (LxWxH)
667 x 54 x 42mm
1187 x 54 x 42mm
1500 x 54 x 42mm
667 x 54 x 42mm
1187 x 54 x 42mm
1500 x 54 x 42mm
1.5M
EN
Net weight (Kg)
0.19
0.37
0.46
0.19
0.37
0.46
