Summary of Contents for Meech 957

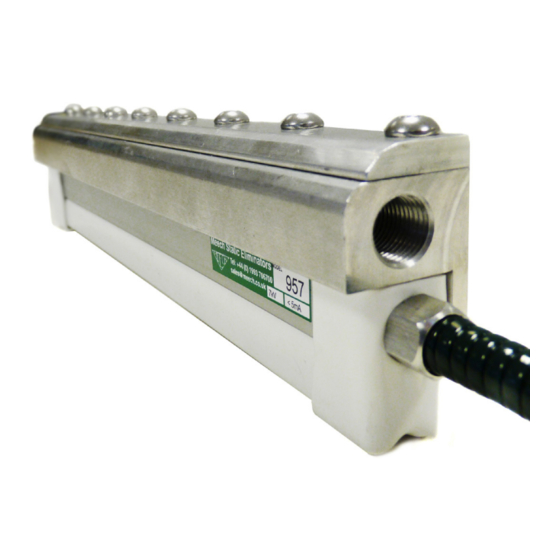

- Page 1 Operating Manual Model 957 Ionised Air Curtain...
-
Page 2: Table Of Contents
Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. For further information please refer to our Head Office or visit www.meech.com. © Meech Static Eliminators Ltd., 26.10.17... -
Page 3: Introduction
Introduction Meech Ionised Air Curtains have unique static elimination capabilities and will give many years of excellent service, provided that the following instructions are observed closely. -
Page 4: General Notes On Operation
General Notes On Operation The typical Meech air curtain installation consists of one or more ionised air curtains connected to a Meech power unit. The static eliminator bar may be either a 915 or 910/914. This bar converts the energy from the power unit to generate an ionised air corona. - Page 5 When a statically charged object enters the ionised air corona, the free moving ions are attracted to the opposite charge on the object. In this way the static electricity is neutralised. Unused ions in the corona recombine or are discharged to earth. 50-2000mm ...
-
Page 6: Distance From The Object
Installation The correct positioning of the air curtain is vital to its efficient operation. Please observe the following instructions. Distance From The Object The air curtain should be positioned as close as possible to the object to be neutralised. If we say that the neutralisation power at a distance of 10cm is 100% then the relative neutralisation performance at a longer distance is: Distance From Object Relative Performance... -
Page 7: Air Supply
Air Supply The air supply must be clean and dry. A 5 micron coalescing filter is recommended. The Meech warranty does not cover damage due to water or oil in the air supply. Reduce the air supply to the lowest pressure which achieves the required results. -
Page 8: Ce Approval
CE Approval A CE Declaration of Conformity for this product exists in respect of the Low Voltage Directive:72/23/EEC (“LVD”) & Electrtomagnetic Compatibility Directive: 89/336/EEC (“EMCD”) Health and Safety Emission of Ozone: Considerably below international standard of 0.1ppm. -
Page 9: Maintenance
Maintenance Cleaning your Meech Ioniser Ionisers require periodic cleaning. During normal operation, dirt will build-up on the emitter pins and on the body of the ioniser. This will cause a reduction in performance. Typically, weekly cleaning is sufficient. However, equipment used in heavy contamination areas, such as gravure printing or where plastic fumes are present, daily cleaning is required. -
Page 12: Meech Static Eliminators Ltd
Meech International Meech Static Eliminators USA Inc Meech Elektrostatik SA Meech CE 2 Network Point 2915 Newpark Drive Kaiserbaracke 166 Gábor László utca 2 Range Road, Witney Norton, OH 44203 B-4780 St.Vith Budapest 1041 Belgium Hungary OX29 0YN, UK Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210 Tel.: +49 (0)6555 3733 399...
