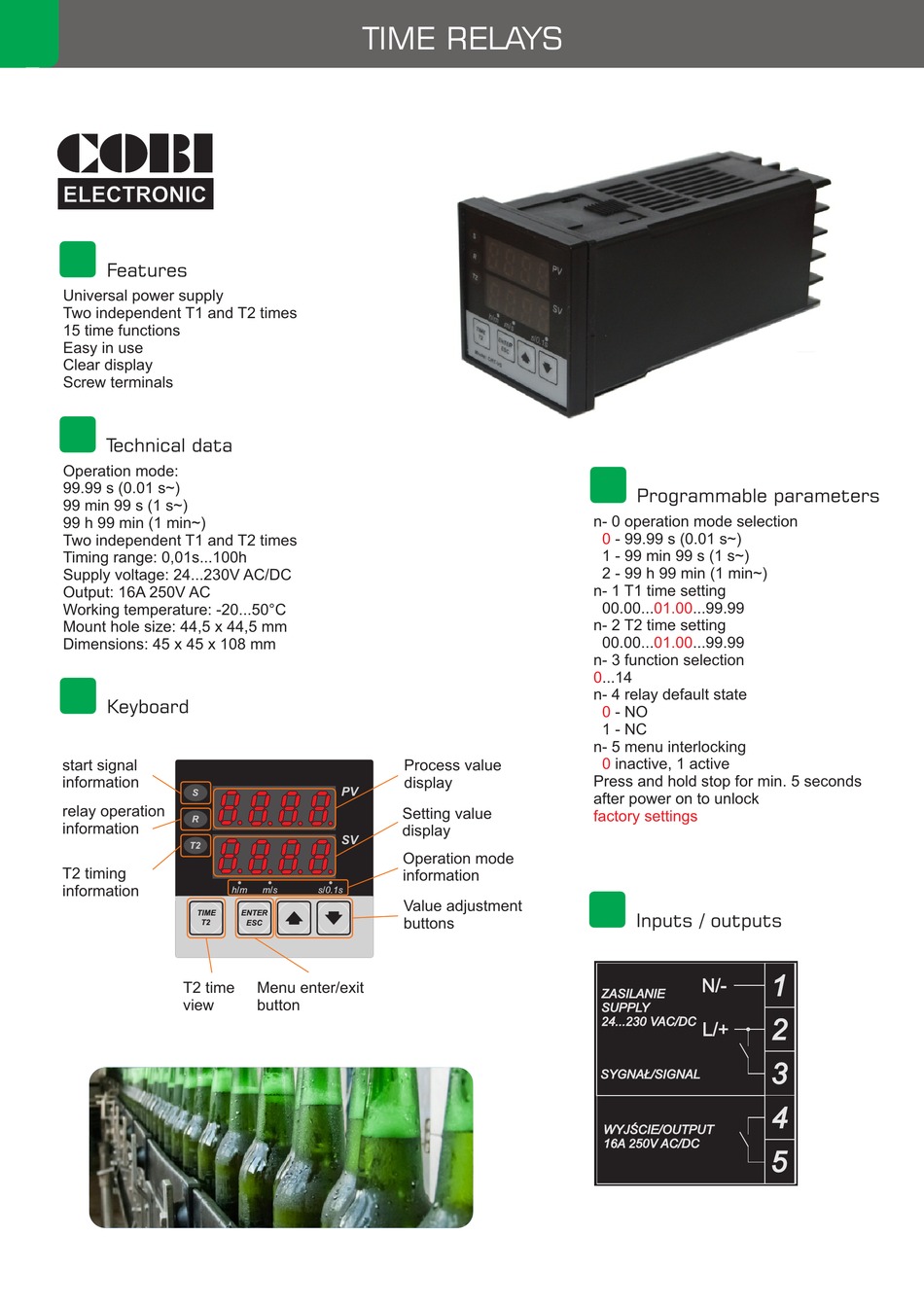

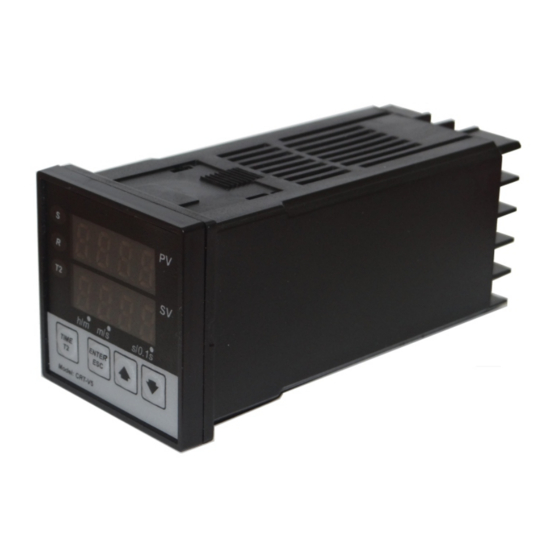

COBI CRT-V5 Quick Start Manual

ELECTRONIC ELECTRONIC
Features
Universal power supply
Two independent T1 and T2 times
15 time functions
Easy in use
Clear display
Screw terminals
Technical data
Operation mode:
99.99 s (0.01 s~)
99 min 99 s (1 s~)
99 h 99 min (1 min~)
Two independent T1 and T2 times
Timing range: 0,01s...100h
Supply voltage: 24...230V AC/DC
Output: 16A 250V AC
Working temperature: -20...50°C
Mount hole size: 44,5 x 44,5 mm
Dimensions: 45 x 45 x 108 mm
Keyboard
start signal
information
S
relay operation
R
information
T2
T2 timing
information
h/m
TIME
T2
T2 time
view
TIME RELAYS
Process value
display
PV
Setting value
display
SV
Operation mode
information
m/s s/0.1s
Value adjustment
ENTER
buttons
ESC
Menu enter/exit
button
Programmable parameters
n- 0 operation mode selection
0 - 99.99 s (0.01 s~)
1 - 99 min 99 s (1 s~)
2 - 99 h 99 min (1 min~)
n- 1 T1 time setting
00.00... 01.00 ...99.99
n- 2 T2 time setting
00.00... 01.00 ...99.99
n- 3 function selection
0 ...14
n- 4 relay default state
0 - NO
1 - NC
n- 5 menu interlocking
0 inactive, 1 active
Press and hold stop for min. 5 seconds
after power on to unlock
factory settings
Inputs / outputs
N/-
ZASILANIE
SUPPLY
24...230 VAC/DC
L/+
SYGNAŁ/SIGNAL
WYJŚCIE/OUTPUT
16A 250V AC/DC
1
2
3
4
5
