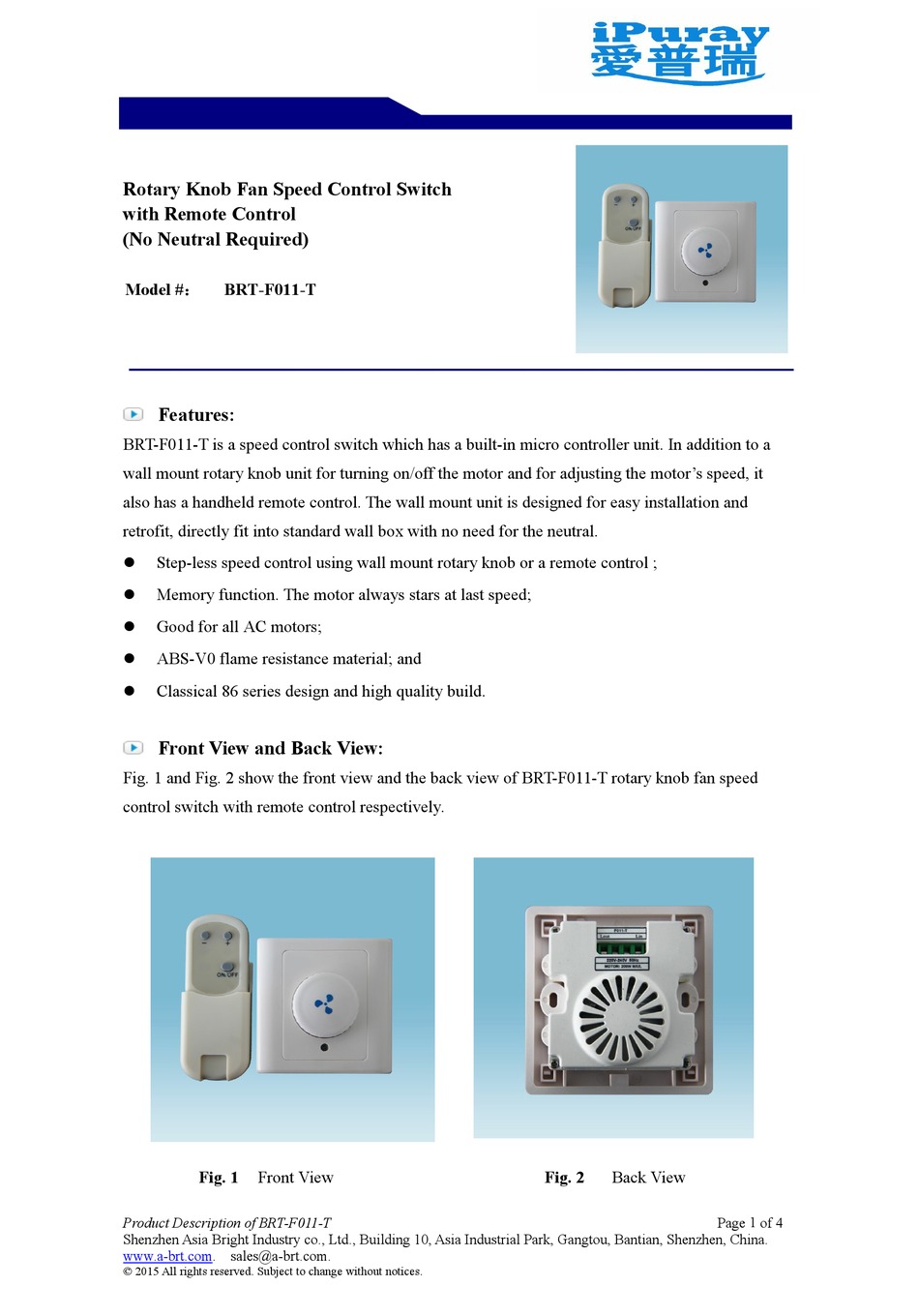

Rotary Knob Fan Speed Control Switch
with Remote Control
(No Neutral Required)
Model #：
BRT-F011-T
Features:
BRT-F011-T is a speed control switch which has a built-in micro controller unit. In addition to a
wall mount rotary knob unit for turning on/off the motor and for adjusting the motor's speed, it
also has a handheld remote control. The wall mount unit is designed for easy installation and
retrofit, directly fit into standard wall box with no need for the neutral.
Step-less speed control using wall mount rotary knob or a remote control ;
Memory function. The motor always stars at last speed;
Good for all AC motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Front View and Back View:

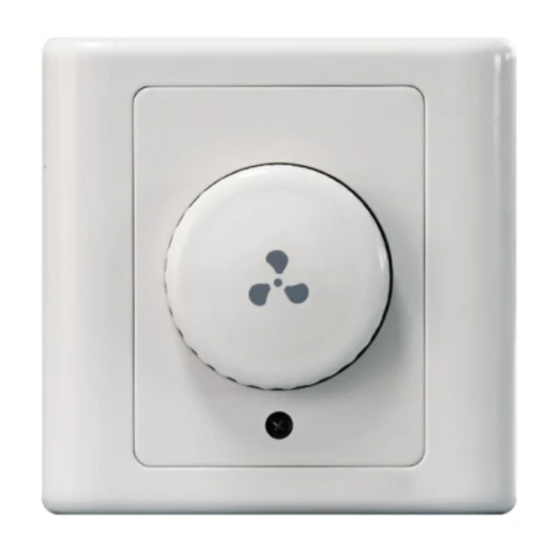

Fig. 1 and Fig. 2 show the front view and the back view of BRT-F011-T rotary knob fan speed
control switch with remote control respectively.
Fig. 1
Front View
Product Description of BRT-F011-T
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2
Back View
Page 1 of 4
Advertisement
Table of Contents
Summary of Contents for iPuray BRT-F011-T
- Page 1 Classical 86 series design and high quality build. Front View and Back View: Fig. 1 and Fig. 2 show the front view and the back view of BRT-F011-T rotary knob fan speed control switch with remote control respectively. Fig. 1 Front View Fig.
- Page 2 As shown in Fig. 1 and Fig. 2, BRT-F011-T speed control switch set includes a wall mount unit and remote control. The wall mount unit has a rotary knob and an infrared detector on the front, and wiring terminal blocks on the back. The remote control has three control buttons and a wall mount bracket.
- Page 3 Install screws and front plate. Fig. 4 BRT-F011-T Installation Guide Operation Guide: BRT-F011-T speed control switch can be controlled either using the rotary knob of the wall mount unit or the remote control as shown in Fig 5. Fig. 5 BRT-F011-T Speed Control Control using rotary knob: Pressing the knob will turn on the motor at its last speed, and pressing again will turn off the motor.
- Page 4 +86-755-89748226 Email: sales@a-brt.com Website: www.a-brt.com Product Description of BRT-F011-T Page 4 of 4 Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China. www.a-brt.com. sales@a-brt.com. © 2015 All rights reserved. Subject to change without notices.
