Summary of Contents for SPX TIF TIF8800X

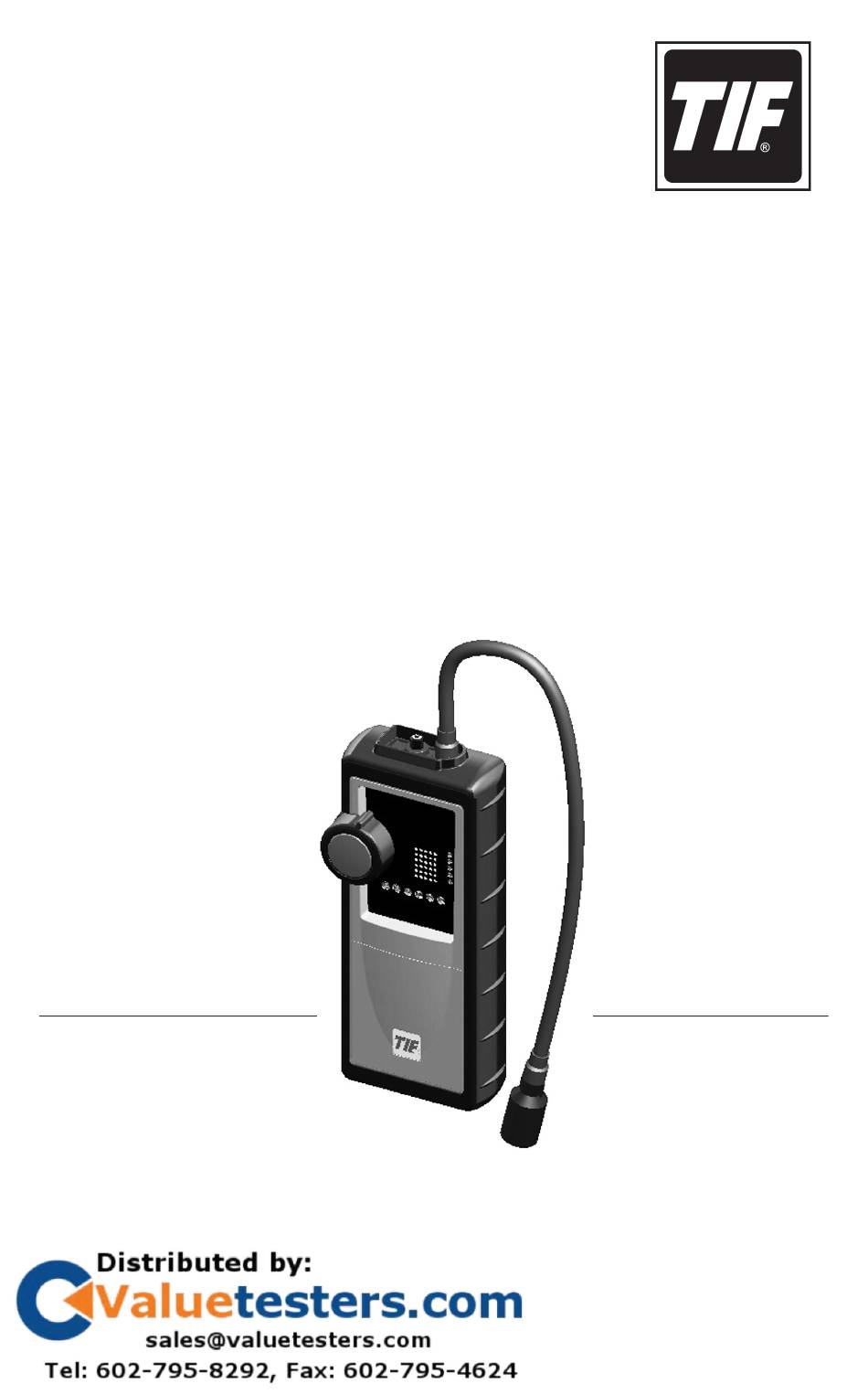

  • Page 1 TIF8800X Combustible Gas Detector Owner’s Manual Manual del propietario Manuel de l’utilisateur...
  • Page 2 Safety Precautions warning: To prevent personal injury, • Study, understand, and follow all safety precautions and instructions relating to this tool. • wear eye protection that meets anSi Z87.1 and OSHa standards when using the TiF8800X gas Detector. • Verify the instrument is functioning correctly by testing it on a known combustible leak source before approaching a suspected hazardous area.
  • Page 3: Table Of Contents

    Table of Contents General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Applications .
  • Page 4: General Description

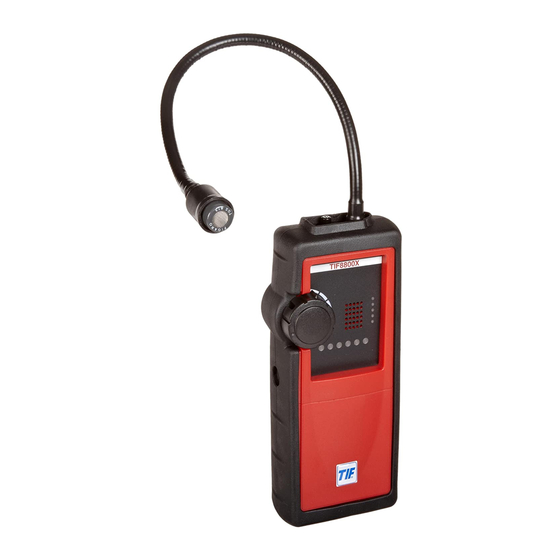

    General Description The TIF8800X is a battery-operated combustible gas detector that provides a ticking signal that increases in frequency as the source of combustible gas or vapor is approached . This tool is ideal for pinpointing the location of combustible gas leaks as small as 1 ppm (gasoline vapor) .
  • Page 5: Parts & Controls

    Parts and Controls 1 . On/OFF switch Side View 2. Instrument status indicators (five LEDs) 3 . Probe tip and sensor 4 . niMh battery pack (behind cover) 5. Charger input jack 6. Leak intensity indicators (six LEDs) 7 . Sensitivity control...
  • Page 6: Setup

    Setup install the Battery Pack Before using the TIF8800X, it is necessary to install and charge the supplied niMh battery pack . 1 . Remove the rubber boot from around the tool . 2 . Unthread the screw holding the battery cover in place, and remove the cover . 3 .
  • Page 7: Charge The Battery Pack

    Setup Charge the Battery Pack Before using the gas detector for the first time, you will need to charge the battery pack in order for the unit to function correctly . CauTiOn: To prevent equipment damage, • Charge the battery pack only in temperatures between 32°F and 104°F (0°C and 40°C). Charging outside this temperature range may cause permanent damage to the battery pack. • Use only the AC adapter that is included with the TIF8800X to charge the battery pack.
  • Page 8: Operating Instructions

    Operating Instructions Once the battery pack is fully charged, the TIF8800X is ready to use . 1 . Move to a known, non-contaminated atmosphere . 2 . Turn the sensitivity control fully counter-clockwise . 3 . Turn the power switch On . The power light should be illuminated and no sound should be heard .
  • Page 9: Instrument Status Indicators

    Instrument Status Indicators There are five (5) instrument status indicators, or LEDs, on the front of the instrument. The indicators are explained below, from top to bottom . Power Indicator (red): This LED illuminates when the instrument is On . instrument Status Low Battery (red): This LED illuminates indicators when a battery charge is needed . The battery pack must be fully recharged before the tool is used again .
  • Page 10: Maintenance

    Maintenance general Care • Do not allow dirt or grease to obstruct the charger input jack on the side of the instrument . • Use only a soft cloth dampened with mild soap to clean the body of the tool . • This tool is a precision electronic device. Avoid extreme mechanical shock, exposure to strong magnetic fields, and extreme temperatures. Never immerse the tool into a liquid . Battery Pack The unit is equipped with a nickel–metal–hydride (niMh) battery pack . If the low battery LED is ON, the battery pack needs to be charged before the tool is used again .
  • Page 11: Sensor

    Maintenance Disposal of Batteries Batteries are recyclable. Do not incinerate or expose batteries to open flames . Dispose of batteries according to local, state, and federal regulations . Sensor If the tool does not sound an alarm in the presence of a known leak, the sensor may need to be replaced . Refer to Replacement Parts for the sensor part number .
  • Page 12: Specifications

    Specifications Power Supply: 4 .8V niMH rechargeable battery pack Continuous Operation Time: Up to 3 hours Battery Pack Lifetime Approximately 200 charge cycles Warm-up Period: Approximately 30 seconds Duty Cycle: Continuous; no limitation Response Time: Instantaneous Sensitivity: Variable; as low as 1 ppm (gasoline vapor) Operating Environment: 32°F to 125°F (0°C to 52°C) Dimensions:...
  • Page 13: Replacement Parts

    Replacement Parts Several components of the unit are consumable and will eventually require replacement . Additionally, optional accessories for the unit are available through your dealer . Specify the part number below to ensure obtaining the correct part . CauTiOn: use only the TiF8809 battery pack in this instrument. Substitution of components may impair the intrinsic safety rating of the tool and cause personal injury.
  • Page 14: Troubleshooting

    Troubleshooting Symptom Possible Cause Solution Power indicator LED 1) Battery pack not charged . 1) Connect AC adapter to tool does not light; tool is and charge battery pack . Refer to Setup for instructions . non-responsive . 2) Remove AC adapter . 2) AC adapter is connected to tool .
  • Page 15 Troubleshooting (continued) Symptom Possible Cause Solution Power indicator LED 1) Battery pack not charged . 1) Connect AC adapter to tool does not light; tool is and charge battery pack . Refer non-responsive . to Setup for instructions . 2) Remove AC adapter . 2) AC adapter is connected to tool .
  • Page 16 655 EisEnhowEr DrivE owatonna, Mn 55060-0995 Usa 800 327 5060 Toll free 800 327 5060 llamada graTuiTa 800 327 5060 numéro graTuiT 866 259 1241 866 259 1241 Telécopieur www.tif.com 553240 Rev B, August 11, 2010...
