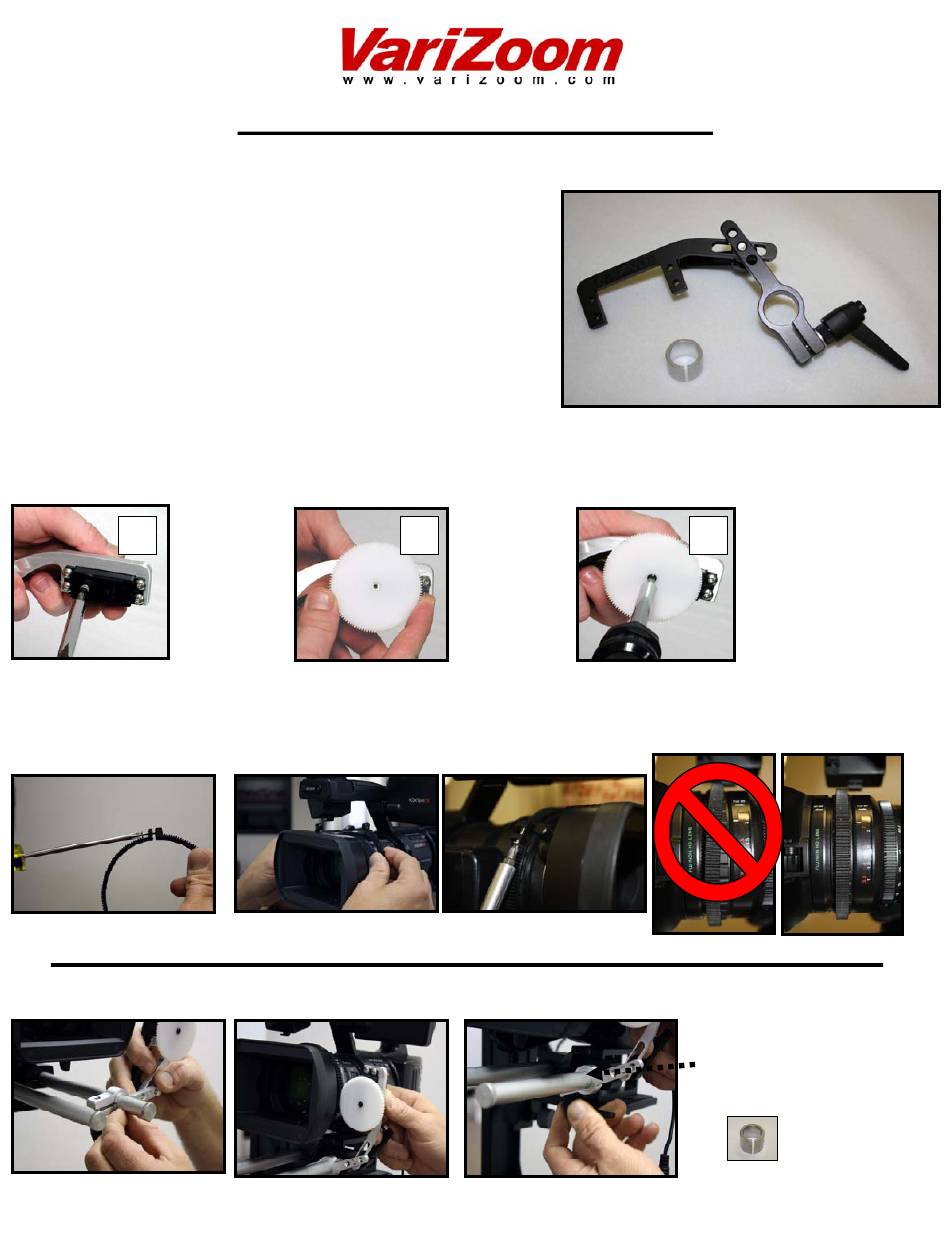

VARIZOOM VZ-EFCU Instructions

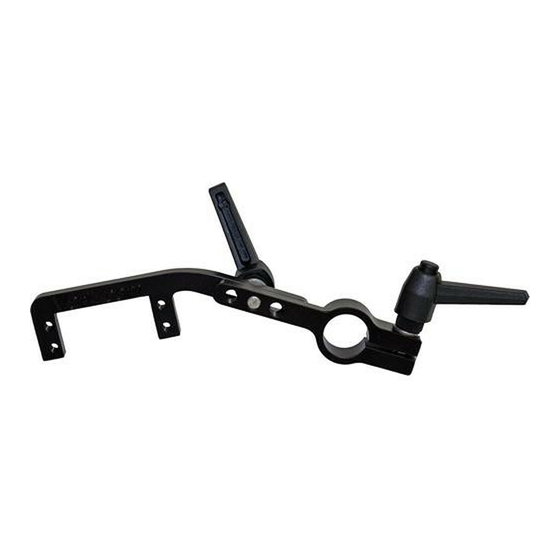

Items included with the VZ-EFCU Adapter kit are the
Aluminum Universal Bracket Assembly and Spacer.
First, determine which gear you need to use and attach it to the motor. The Canon gear is marked "C" and the Fujinon is
marked "F". For the SonyEX series of cameras, you will use the "F" gear. 1) Remove the screw in the center of the motor
spindle. 2) Install the appropriate gear. 3) Replace the screw in the motor spindle.
1
Un-screw (A) the Focus ring gear and then placing it around the focus ring on the camera, then re-attach the screw and
tighten until snug (B). Be sure that focus ring gear is lined up centered & symmetrically with the Focus ring on the Camera
(C).
(A)
Now slide the Bracket with gearbox (D) onto your mattebox rods and line up the gear with the focus gear ring keeping the
block about ½" away from the focus ring on the camera (E). Now lock down the lower ratchet bolt to hold in place (F).
(D)
VZ-EFCU Adapter Instructions
2
(B)
(B)
(E) (F)
1
3
(C)
InCorrect Correct
Note: Bracket comes standard to
fit 19mm mattebox rods. When
using 15mm rods you will need
to use the provided spacer.
