1 Operating Manual
1.1 General
Please read the information contained herein so that you can become familiar with
your device quickly and take advantage of the full scope of its functions.
Your Sound & Cool will serve you for many years if you handle it and care for it
properly.
We wish you a lot of pleasure in using it!
1.2 Information on this manual
These Operating Instructions are a component of the Sound & Cool (referred to
hereafter as the Device) and provide you with important information for the initial
commissioning, safety, intended use and care of the device. The Operating
Instructions must be available at all times at the device. This Operating Manual must
be read and applied by every person who is instructed to work with the device:
Commissioning
• Troubleshooting and/or
Keep the Operating Manual in a safe place and pass it on to the subsequent owner
along with the device.
1.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
DANGER
A warning notice of this level of danger indicates a potentially dangerous
situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
► Observe the instructions in this warning notice in order to avoid the danger of
death or serious personal injuries.
► Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By
Trained Service Personnel. Do Not Puncture Refrigerant Tubing
►
WARNING
A warning notice of this level of danger indicates a possible dangerous
situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
► Observe the instructions in this warning notice in order to avoid the personal
injuries.
• Operation
• Cleaning
•
Advertisement
Table of Contents
Summary of Contents for Caso Sound & Cool
- Page 1 1 Operating Manual 1.1 General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your Sound & Cool will serve you for many years if you handle it and care for it properly.
- Page 2 ► Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in. ► Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ► Do not damage the refrigerant circuit. ►...
- Page 3 1.6 EU declaration of conformity Hereby, Braukmann GmbH, declares that the radio equipment type [790] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.caso- germany.de/nc/service/dokumente-download/ 2 Safety This chapter provides you with important safety notices when handling the device.
-
Page 4: General Safety Information
2.1 Intended use This device is only intended for use in enclosed spaces for cooling of food and beverages. This device is intended for use in the household and for similar applications such as: • in kitchens for employees in shops, offices, and other commercial areas; in B&Bs, •... - Page 5 use of the device and have understood the resulting hazards. Cleaning and maintenance by the user must not be ► performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
- Page 6 these fall over and fluid escapes, electrical components could be damaged. Do not store perishable food in the device. ► This device complies with Part 15 of the FCC ► Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 7 Blowing gas inside the unit is flammable. ► Do not damage the cooling circuit of the device. ► Do not use electrical devices inside the device. ► Do not use mechanical devices or other means to ► accelerate the defrosting process. Never use the device to store or dry flammable ►...
- Page 8 Danger ► If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. Do not open the housing on the device under any ►...
- Page 9 • Sound & Cool • power cord • 1 slot for power cord • 1 audio line • 4 partitions • 2 sliding inserts • Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ►...
- Page 10 • Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. • Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
-
Page 11: Design And Function
• This unit is not designed to be installed in an RV or used with an inverter. • The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. -
Page 12: Operation And Handing

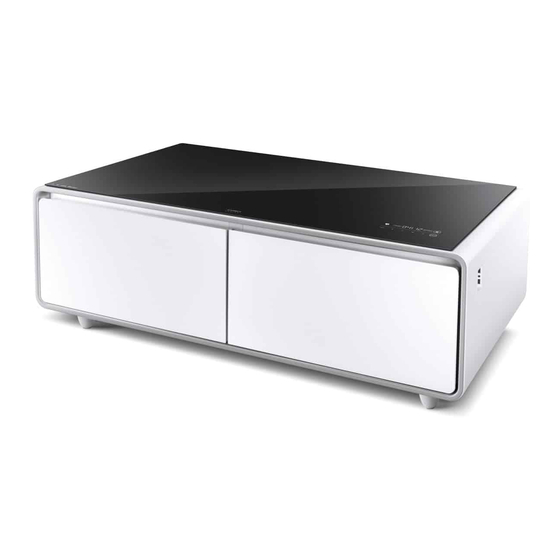

(1) glass panel (2) inner space, left drawer (3) movable inserts (4) partition (5) left drawer (6) control panel (7) inner space, right drawer (8) adjustable foot (9) right drawer (10) logo (11) rear board (12) USB interface (13) connection socket for mains plug (14) audio line 5 Operation and Handing This chapter provides you with important notices with regard to operating the device. - Page 13 2 left cooling drawer, temperature regulation 3 display 4 right cooling drawer, temperature regulation 5 lock/ child protection for control panel of refrigerator zone B control panel for music player 6 mode for selection of music source 7 previous music title 8 reduce volume 9 plus volume 10 next music title...
- Page 14 then set desired temperature. The two control panels are working independently from each other. The temperature in the device depends on the room temperature, the quantity of bottles/ amount of food and the chosen temperature. Please note that your device is intended to cool food and beverages.
- Page 15 • Bottles have to be tightly placed to prevent them form tilting when the drawers are opened. • Do not place tall cans/canisters, otherwise the drawer cannot be closed properly. • The partions of the drawers can be removed and the inserts can be move, to store different types of food.
- Page 16 The display shows „LINE“ and the voice prompts: “external audio mode“. The Sound & Cool can be used as external audio of your mobile / tablet by inserting a 3,5 mm audio cable for connection with your mobile/tablet. Then you can control the music using your mobile/tablet.
-
Page 17: Cleaning And Maintenance
Press for 3 seconds to unlock control panel. With > you can select the next song, the display shows „-I“ for 2 seconds. With < you can select the previous song, the display shows „I-„ for 2 seconds. After 2 seconds the display returns to audio mode. In external audio mode/AUX mode you cannot use the <... - Page 18 Please observe the following safety notices, before you commence with cleaning the device: ► Prior to commissioning, clean the appliance thoroughly. Attention ► Switch the Sound & Cool off prior to cleaning it and unplug the plug from the wall power outlet.
- Page 19 6.3 Defrost The device automatically defrosts. Condensated water will be collected in a tray and will automatically evaporate by compressor heat. 6.4 Moving the appliance Turn off the appliance first and then unplug the unit from the wall outlet. Remove all content. Shurely tape down all lose items inside your appliance. Tape drawers shut.
-
Page 20: Disposal Of The Old Device
Control panel does not show Electronic defect. Contact the customer service. anything.. Buttons do not work. Control panel is damaged. Compressor will not start Room temperature is lower than desired temperature. The surface of wine cabinet especially the door Dew on the surface of device： appear some frost if item in a damp room. -
Page 21: Technical Data
8 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device.
