Summary of Contents for ELECTRODRIVE BA1105

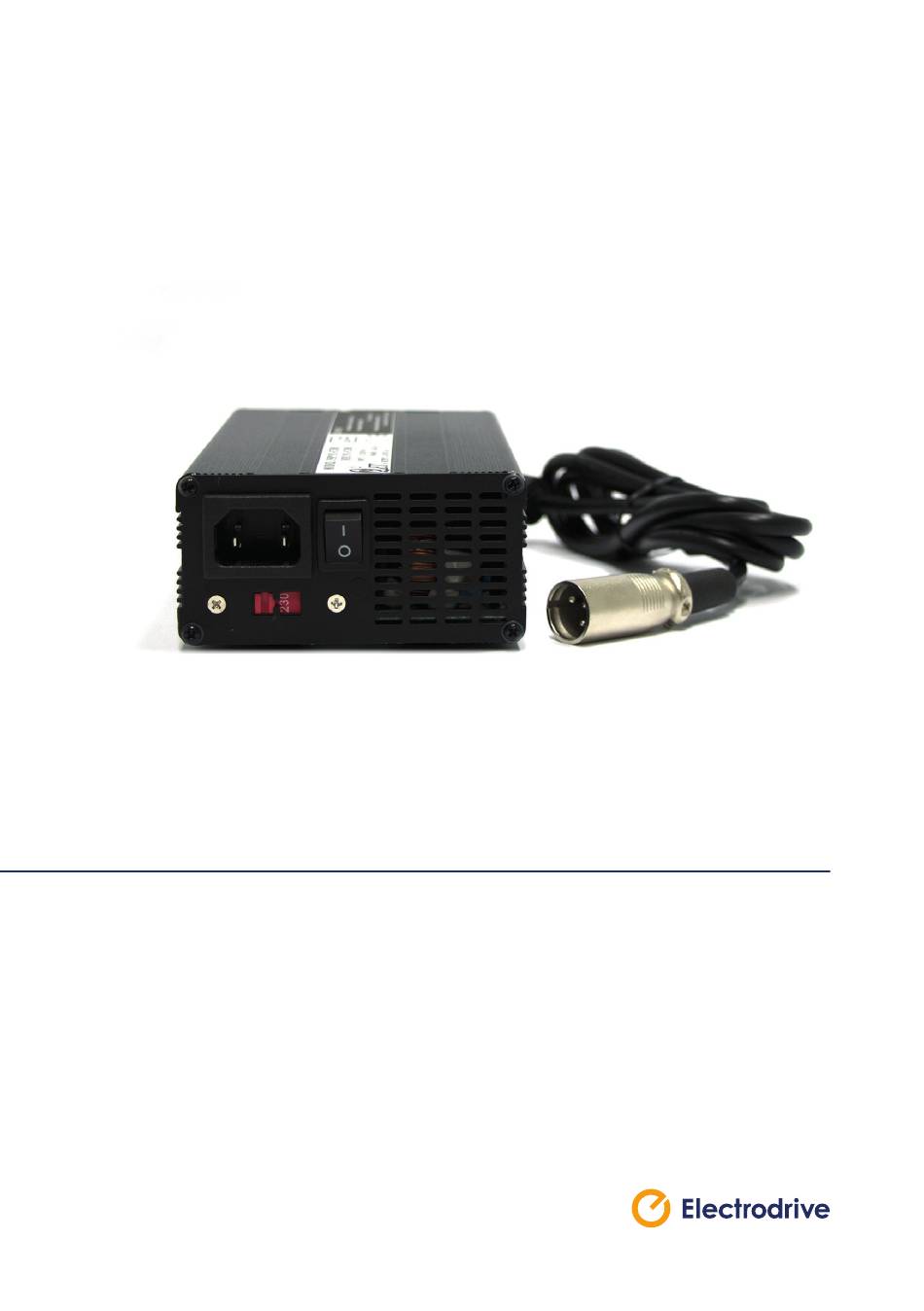

- Page 1 BA1105 Battery Charger Operating Manual...
- Page 2 Using this unit incorrectly may void warranty. Any damage audible or visible to this unit should be addressed at the time of discovery. Electrodrive Pty Ltd can provide parts and service support on request through its service partner company: Serviced Equipment Pty Ltd p: 1300 934 471 e: info@servicedequipment.com.au...
- Page 3 BA1105 Battery Charger—Operating Manual Safety information Making or breaking the connections to the unit while the charger is connected to the mains power may cause electrical shock. Disconnect the power supply before making or breaking the connections to the unit to be charged.

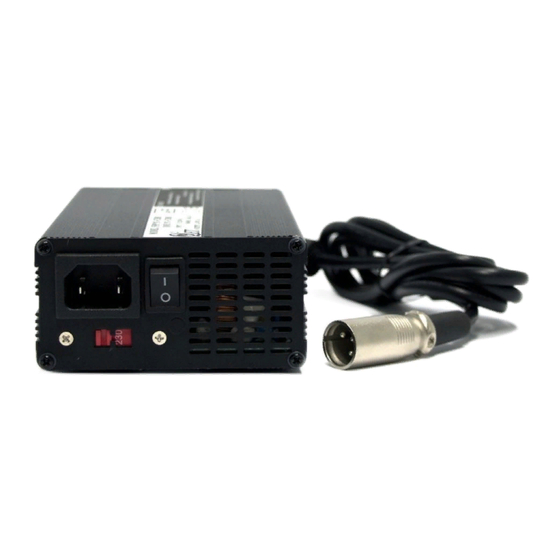

- Page 4 Input selector switch Power button XLR plug Charger socket Status LED LED level indicator...
- Page 5 If the status LED does not blink, either the battery or the wiring is faulty. Contact Electrodrive for a service enquiry immediately (see page 4). 7. When the battery is 100% charged, the charger will switch to a trickle cycle mode.
- Page 6 Rated capacity of battery 20–75Ah No. of cells 12 (24V) Noise level <50dB (Tested from 50 cm away) Service enquiries Should this unit need servicing, contact your Electrodrive service partner. Serviced Equipment Pty Ltd p: 1300 934 471 e: info@servicedequipment.com.au...
- Page 8 Innovative mobility solutions and products www.electrodrive.com.au...
