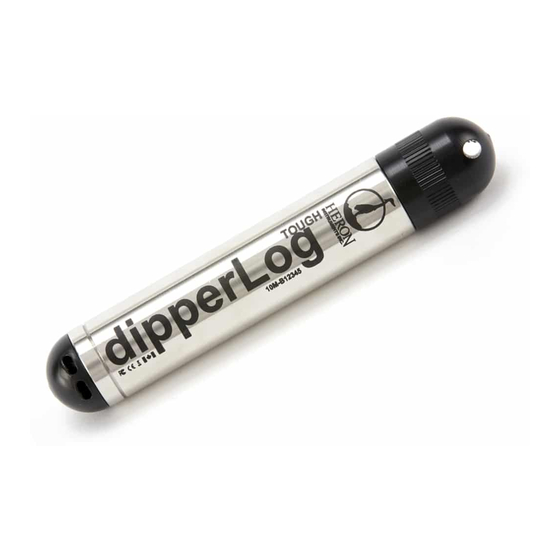

Summary of Contents for HERON dipperLog+ Series
- Page 1 Since 1995 dipperLog+ Series dipperLog+ Series User/Software Manual User/Software Manual 25 Years 25 Years Rev. 1.0 www.heroninstruments.com 2020...
-
Page 2: Table Of Contents
Table of Contents dipperLog 128+ Technical Specifications dipperLog Tough+ Technical Specifications dipperLog Vented+ Technical Specifications dipperLog 64+ Technical Specifications dipperLog 32+ Technical Specifications barLog Technical Specifications About Pressure/Level Sensors Absolute Pressure Sensor Gauged Pressure Sensor Barometric Atmospheric Pressure Sensor System Components Instrument Vented/Non-Vented Direct Read Cable Customizable Cable Length... - Page 3 Series User/Software Manual Table of Contents Logger Information Logger Information - Secondary Tabs Data Reports Data Reports - Continued Data Reports - Advanced Features Data Reports - Advanced Features - Continued Realtime Readings Compensation Compensation - Barometric - Continued...
-
Page 4: Dipperlog 128+ Technical Specifications
dipperLog 128+ Technical Specifications dipperLog 128+ Technical Specifications # of Data Sets 128,000 21,333.33 Data Sets/min Download Speed (128,000 readings downloads in 6 minutes) Water Level Accuracy (Typical) +/- 0.05%FS (0°C to 50°C) +/- 0.05°C Temperature Sensor Meets Temperature Accuracy (Typical) ASTM E1112 and ISO 80601-2-56. -
Page 5: Dipperlog Tough+ Technical Specifications
Series User/Software Manual dipperLog Tough+ Technical Specifications dipperLog Tough+ Technical Specifications # of Data Sets 128,000 21,333.33 Data Sets/min Download Speed (128,000 readings downloads in 6 minutes) Water Level Accuracy (Typical) +/- 0.05%FS (0°C to 50°C) +/- 0.05°C Temperature Sensor Meets Temperature Accuracy (Typical) ASTM E1112 and ISO 80601-2-56. -
Page 6: Dipperlog Vented+ Technical Specifications
dipperLog Vented+ Technical Specifications dipperLog Vented+ Technical Specifications # of Data Sets 128,000 21,333.33 Data Sets/min Download Speed (128,000 readings downloads in 6 minutes) Water Level Accuracy (Typical) +/- 0.05%FS (0°C to 50°C) +/- 0.05°C Temperature Sensor Meets Temperature Accuracy (Typical) ASTM E1112 and ISO 80601-2-56. -
Page 7: Dipperlog 64+ Technical Specifications
Series User/Software Manual dipperLog 64+ Technical Specifications dipperLog 64+ Technical Specifications # of Data Sets 64,000 21,333.33 Data Sets/min Download Speed (64,000 readings downloads in 3 minutes) Water Level Accuracy (Typical) +/- 0.05%FS (0°C to 50°C) Temperature Accuracy (Typical) +/- 0.5°C... -
Page 8: Dipperlog 32+ Technical Specifications
dipperLog 32+ Technical Specifications dipperLog 32+ Technical Specifications # of Data Sets 32,000 21,333.33 Data Sets/min Download Speed (32,000 readings downloads in 1.5 minutes) Water Level Accuracy (Typical) +/- 0.1%FS (0°C to 40°C) Temperature Accuracy (Typical) +/- 0.5°C Pressure Ranges 30m/100ft (43PSI) Overpressure Rating 2X Factory Calibrated Range... -
Page 9: Barlog Technical Specifications
Series User/Software Manual barLog Technical Specifications barLog Technical Specifications # of Data Sets 128,000 21,333.33 Data Sets/min Download Speed (128,000 readings downloads in 6 minutes) Pressure Accuracy (Typical) +/- 0.05%FS (0°C to 50°C) +/- 0.05°C Temperature Sensor Meets Temperature Accuracy (Typical) ASTM E1112 and ISO 80601-2-56. -
Page 10: About Pressure/Level Sensors
About Pressure/Level Sensors Pressure transducers measure changes in pressure (m/ft) caused by water or other fluids on an internal media-isolated strain gauge. Heron offers dipperLogs with either absolute (non-vented) or gauged (vented) pressure sensors. Absolute Pressure Sensor Absolute/non-vented pressure transducers measure pressure sensed by the strain gauge, including atmospheric pressure. -
Page 11: Vented/Non-Vented Direct Read Cable
Series User/Software Manual Vented/Non-Vented Direct Read Cable Vented Direct Read Cable Vented cable is used with the dipperLog Vented+ to record gauged measurements. The cable vent tube allows atmospheric pressure to be applied directly to the back of the sensor. There is no need for barometric compensation using vented cable. - Page 12 Communication Cable The Heron P.C. Communication Cable (PN# 5009) offers an interface between the dipperLog/barLog and the user’s computer/tablet. The Heron P.C. Communication cable is used when programming/ downloading data from a logger. (Length: 1m/3ft) (Connections: USB Type A / 3.5mm Jack)
-
Page 13: Accessories
Series User/Software Manual Accessories dipperLog Maintenance Kit To help get the most out of your Heron dipperLog, purchase the dipperLog Maintenance Kit (PN# 5024) to keep your dipperLogs accurate and performing at their peak for many years. The maintenance kit consists of: 1. -
Page 14: Getting Started
Getting Started Downloading dipperLog Software Insert provided Heron USB. (dipperLog Software can also be obtained from www.heroninstruments.com) Open USB Drive, find dipperLog Software download file. Follow the steps of the setup wizard. 905-628-4999 www.heroninstruments.com... - Page 15 Series User/Software Manual 905-628-4999 www.heroninstruments.com...
-
Page 16: Downloading Dipperlog Software - Continued
Downloading dipperLog Software - Continued The dipperLog Software is now successfully downloaded. 905-628-4999 www.heroninstruments.com... -
Page 17: Field Deployment
Once you have successfully verified the deployment position, you can fasten your deployment cord/cable. To verify your deployment depth, use a Heron dipper-T water level meter. Secure the Cord... -
Page 18: Installation Guidelines
Installation Guidelines Follow these suggestions for a successful deployment: • Carefully lower the logger wherever deploying (although robust, free-falling could cause damage to the sensor). • Once your dipperLog is installed, verify the water level measurement. • You can do this using a dipper-T water level meter or dipper-See inspection camera. •... -
Page 19: Dipperlog Software Overview
Software Overview About dipperLog Software The dipperLog Software is Heron’s free dipperLog control application for any of your Heron Instruments data loggers. Available for all Windows operated computers/tablets, you can take the dipperLog Software to any job site. Tested to run on Windows 10 x86 laptops, desktops and tablets. -
Page 20: Logger Information
Logger Information When you open the dipperLog Software, it opens to the “Logger Information Tab”. With a logger connected via the P.C. Communication Cable, press the connect loggers button in the bottom left hand corner. Note: If the logger was on a mission, the empty fields will become populated with data. If it is a new logger, the device setup tab will automatically open. -
Page 21: Logger Information - Secondary Tabs
Series User/Software Manual Saved Settings Job Number: 5 Digits (Numbers/Letters) to Represent Job Site Well Number: 5 Digits (Numbers/Letters) to Represent Particular Well Transducer Depth: The depth/distance the logger will be from the reference point (Ground level, Top of casing etc.) -
Page 22: Data Reports
Data Reports Within the “Data Reports” tab, you will see a graphical representation of the data stored on the logger’s memory. This includes pressure and temperature readings over the span of the mission. Once on the data reports page, click the “Download” button in the top left of the screen. The logger will begin to transfer its data into the dipperLog Software. -
Page 23: Data Reports - Continued
Series User/Software Manual Data Reports - Continued Refresh: Re-downloads data incorporating any newly recorded data points since last download. Save on Computer: Clicking save on computer allows you to export the data represented in the table on the dipperLog Software. You can export as either a Comma Separated File (.csv), or as a Text File (.txt). -
Page 24: Data Reports - Advanced Features - Continued
Data Reports - Advanced Features - Continued Low Level: This selection will multiply all downloaded readings by 0.9 Custom Value: This option allows you to select a constant value by which to adjust your readings. Since 1 is the specific gravity of clean water, the software calculates the height of water using 1 as the density. This option allows you to make the necessary adjustment when the fluid you are monitoring has a density of more or less than 1, i.e. -
Page 25: Compensation
Series User/Software Manual Compensation Barometric: This operation can be done at any time. It is not necessary to be connected to any logger. Select the “Compensation” tab. Select “Add” under the barLog File section. Navigate to location where downloaded data sets are saved. -
Page 26: Compensation - Barometric - Continued
Compensation - Barometric - Continued Once the compensation is completed the data will be displayed on screen. Note: Add check marks to the boxes, and select “Save on Computer” to overwrite the previously uncompensated data file. The compensated data will now display two additional columns of values: Head of Water –... -
Page 27: Compensation
Series User/Software Manual Compensation Drift: Located in the Compensation tab, this screen gives the user the ability to fine tune their readings. You can correct the values for any drift which may have occurred over time and also reduce the calibrated range of readings for greater accuracy. -
Page 28: Multiple Downloads
Ensure you are running the latest version of the software by clicking the “Check for Software Update”. If you already have the latest, it will say “You’re up to date!” Troubleshooting tips dipperLog Software Manual in PDF format Heron Instruments Annual Product Catalogue dipperLog Software Overview Video 905-628-4999 www.heroninstruments.com... -
Page 29: Using Dipperlog Software
Series User/Software Manual Using dipperLog Software Connecting a Logger to the Software Launching the software will generate the Logger Information screen. Connect the PC communication cable to your computer and 1 or more dipperLog. Each dipperLog requires a dedicated cable and USB port. -
Page 30: Logging Method Descriptions
Logging Method Descriptions Linear Linear log type measures and records at a user-defined fixed interval of one minute or more. This method is used for long-term studies, landfill monitoring, stream gauging, tidal studies, and background monitoring prior to aquifer testing. Intervals are measured in days, hours, or minutes. Log type measures and records the first reading at 1 second, with 1 second added to each subsequent reading interval for 255 readings. -
Page 31: Multiple Downloads
Series User/Software Manual The “Refresh” button will re-download data incorporating any newly recorded data points since the last download. The “Save on Computer” button allows you to designate the location where the data is saved. Navigate to desired location, name the data set and select “Save.”... -
Page 32: Cleaning And Maintenance
Selecting the Proper dipperLog Heron dipperLogs are available in a variety of pressure ranges, from: (B) 10m/30ft (C) 30m/100ft... -
Page 33: Scheduling Maintenance
Manual measurements can be taken using a Heron dipper-T Water Level Meter. These measurements can then be compared to the readings of the dipperLog to ensure accuracy over time. -
Page 34: Maintaining Dipperlogs
Do not insert any object through the pressure transducer holes at the sensor end of the dipperLog. To help get the most out of your Heron dipperLog, purchase the dipperLog Maintenance Kit (PN# 5024) to keep your dipperLogs accurate and performing at their peak for many years. -
Page 35: Troubleshooting/Faq
Series User/Software Manual Troubleshooting/FAQ Where is the data download button? On both the Logger Information and Data Reports tab the “Download” button is in the header bar. The “Download All” option is only available on Multiple Downloads tab. Does the software have a dedicated data base? No, you must establish your own location for the downloaded data to be saved. - Page 36 No. Once the battery in the dipperLog is dead the entire unit must be replaced. Is any data in memory lost when battery dies? No. The dipperLog has an internal non-volatile memory. Heron Instruments is usually able to retrieve the data from dipperLog with dead batteries. A service fee may be charged for this service.
-
Page 37: Troubleshooting/Faq - Continued
Series User/Software Manual Troubleshooting/FAQ - Continued Legacy Series II dipperLog If you have any of our older “Series II” dipperLog, this software package is backwards compatible and will work with these dipperLog. The older technology incorporated in these units is much slower and cannot communication at the increased speed of today’s dipperLog. -
Page 38: In-Depth Technical Specifications
Linear, and predetermined Log Launch modes Immediate and future start/stop Environmental Rating IP68 Certification Comunication Interfaces USB via Heron Com-Cable Programing Desktop Application (Windows 10 x86) Logging Intervals 1 second to 255 hours Supported Pressure Units Meters, Feet Supported Temperature Units... - Page 39 Series User/Software Manual dipperLog Tough+ Memory 128,000 readings Download Speed 19,200bps (128,000 readings downloads in 6 minutes) 10m(aprx. 30ft), 30m(aprx. 100ft), 60m(aprx. 200ft), 120m(aprx. Factory Calibrated Ranges 400ft) 10m(aprx. 30ft), 30m(aprx. 100ft), 60m(aprx. 200ft), 120m(aprx. Operational Range 400ft) All ranges are representative of use at sea level. Use above sea level will result in higher operational range.
-
Page 40: In-Depth Technical Specifications - Continued
Linear, and predetermined Log Launch modes Immediate and future start/stop Environmental Rating IP68 Certification Communication Interfaces USB via Heron Com-Cable Programming Desktop Application (Windows 10 x86) Logging Intervals 1 second to 255 hours Supported Pressure Units Meters, Feet Supported Temperature Units... - Page 41 Series User/Software Manual dipperLog 32+ Memory 32,000 readings Download Speed 19,200bps (32,000 readings downloads in 1.5 minutes) Factory Calibrated Ranges 30m(aprx. 100ft) 30m(aprx. 100ft) Representative of use at sea level. Use above Operational Range sea level will result in higher operational range.
