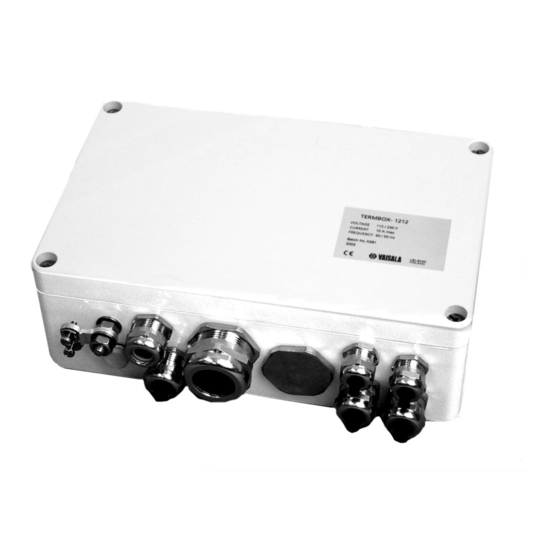

Summary of Contents for Vaisala TERMBOX-9000

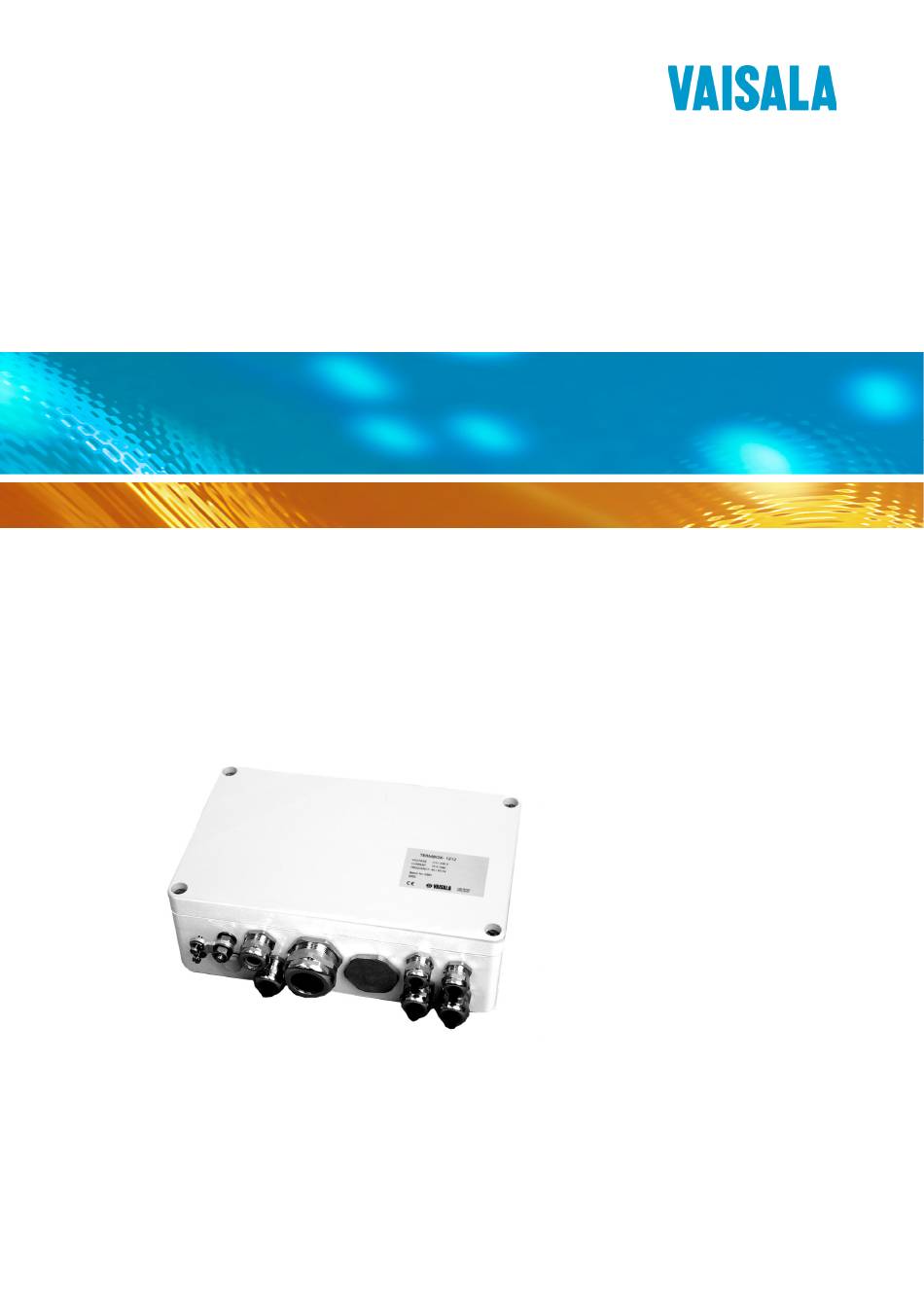

- Page 1 USER'S GUIDE Termination Box TERMBOX-9000, -1200, -1212 M210310EN-B...
- Page 2 English versions are applicable, not the translations. The contents of this manual are subject to change without prior notice. This manual does not create any legally binding obligations for Vaisala towards customers or end users. All legally binding obligations and agreements are included exclusively in the applicable supply contract or the General Conditions of Sale and General Conditions of Service of Vaisala.
-
Page 3: Table Of Contents
Fuse Replacement..............17 Parts List for Consumables ..........17 Return Instructions ..............18 Getting Help ................18 CHAPTER 5 TECHNICAL DATA ..................19 Specifications ................. 19 APPENDIX A TERMBOX-9000................... 21 APPENDIX B TERMBOX-1200................... 25 APPENDIX C TERMBOX-1212................... 27 VAISALA ________________________________________________________________________ 1... - Page 4 Front View AC Power Connections ..........14 Figure 7 Signal Cable Grounding ............15 Figure 8 TERMBOX 9000 ...............21 Figure 9 TERMBOX-9000 Signal Connector Block ........22 Figure 10 TERMBOX-9000 General Wiring Diagram.......22 Figure 11 Power and Signal Cabling of Mitras Signals Baseline .....23 Figure 12 Power and Signal Cabling of Mitras Double Baseline ....24...
-
Page 5: Chapter 1 General Information
- Chapter 4, Maintenance, contains basic maintenance information on the TERMBOX. - Chapter 5, Technical Data, provides the technical data of the TERMBOX. Appendix A, TERMBOX-9000, details and illustration. - Appendix B, TERMBOX-1200, details and illustration. - Appendix C, TERMBOX-1212, details and illustration. Version Information... -
Page 6: Documentation Conventions
User's Guide ______________________________________________________________________ Documentation Conventions Throughout the manual, important safety considerations are highlighted as follows: WARNING Warning alerts you to a serious hazard. If you do not read and follow instructions very carefully at this point, there is a risk of injury or even death. -
Page 7: Recycling
Please observe that any such warranty may not be valid in case of damage due to normal wear and tear, exceptional operating conditions, negligent handling or installation, or unauthorized modifications. Please see the applicable supply contract or Conditions of Sale for details of the warranty for each product. VAISALA ________________________________________________________________________ 5... - Page 8 User's Guide ______________________________________________________________________ This page intentionally left blank. 6 ___________________________________________________________________ M210310EN-B...
-
Page 9: Chapter 2 Product Overview
TERMBOX is adaptable for different needs. The number of signal line protectors can vary up to 2 units and the number of cable glands can also vary by replacing them with blocking plugs. The actual versions available are discussed in detail in the appendices. VAISALA ________________________________________________________________________ 7... -
Page 10: Termbox Models
For details on the different TERMBOX models, see Table 1 below. Table 1 TERMBOX Models Code Signal Connection TERMBOX-9000 Connector block with 90 V gas tube arresters TERMBOX-1200 One signal line protector, 12 V TERMBOX-1212 Two signal line protectors, 12 V... -
Page 11: Chapter 3 Installation
3. In case of a ∅75 mm pole, select the two angle clips shown in Figure 3 on page 11. Fasten the TERMBOX with the two angle clips and four M6 screws, nuts, and washers to the pole. For details, refer to Figure 3 on page 11. VAISALA ________________________________________________________________________ 9... -
Page 12: Figure 2 Installation To ∅104, ∅132, And ∅168 Mm Poles
User's Guide ______________________________________________________________________ 0210-015 Installation to ∅104, ∅132, and ∅168 mm Poles Figure 2 The following numbers refer to Figure 2 above: Back plate TERMBOX Angle clips Mounting screws M8 nuts and washers ∅104, ∅132, and ∅168 mm pole (for example, Mitras or Wind Mast) 10 __________________________________________________________________ M210310EN-B... -
Page 13: Equipment Grounding
It is essential to appropriately ground the TERMBOX. This will ensure proper operation of the unit. Ground the TERMBOX by using a jacketed grounding cable and a conductive grounding rod, as shown in Figure 4 on page 12. VAISALA _______________________________________________________________________ 11... -
Page 14: Figure 4 Termbox Grounding
User's Guide ______________________________________________________________________ 0210-017 Figure 4 TERMBOX Grounding The following numbers refer to Figure 4 above. Cable clamp 16mm jacketed grounding cable Equipment grounding Alternative equipment grounding The jacketed 16 mm grounding cable is fastened to a special clamp on the bottom of the TERMBOX. -
Page 15: Connections
The signal line connections of each TERMBOX model are illustrated in detail in the appendices. For TERMBOX-9000, see Appendix A on page 21. For TERMBOX-1200, see Appendix B on page 25. For TERMBOX- 1212 , see Appendix C on page 27. -
Page 16: Figure 5 Cable Glands
User's Guide ______________________________________________________________________ Table 2 Cable Gland Specifications Cable Diameter Wrench Size CG1 Mains in 18 - 25 mm 32 mm CG2 Mains out 18 - 25 mm 32 mm CG3 Mains out for instrument 7 - 12 mm 20 mm CG4 Auxiliary power out 7 - 12 mm 20 mm... -
Page 17: Signal Cable Grounding
O-ring of the plastic portion and mount the metal cable gland parts as shown in Figure 7 below. 0210-020 Figure 7 Signal Cable Grounding NOTE Tighten the cable glands and make sure that no cable shield mesh gets on the circuit board. VAISALA _______________________________________________________________________ 15... - Page 18 User's Guide ______________________________________________________________________ This page intentionally left blank. 16 __________________________________________________________________ M210310EN-B...
-
Page 19: Chapter 4 Maintenance
Bussman S506-10-C, 5 x 20 mm 10 A (slow) Surge protector board FPS111 RS-485, leased modem line, Phoenix Contact PT 1x2-BE base element and LON protector (rail-mountable) Phoenix Contact PT 3-HF-12DC-ST plug Gas tube arrester Sankosha YO8U - 90B VAISALA _______________________________________________________________________ 17... -
Page 20: Return Instructions
Vaisala Oyj SWD Service Vanha Nurmijärventie 21 FIN-01670 Vantaa Finland Getting Help For technical questions or for comments on the manuals, contact the Vaisala technical support: E-mail helpdesk@vaisala.com Telephone +358 9 8949 2789 +358 9 8949 2790 18 __________________________________________________________________ M210310EN-B... -
Page 21: Chapter 5 Technical Data
10 mm Mains out connectors Number of contacts 2 x 3 (L, N, PE) Contact area 10 mm Signal line connectors Integrated to signal line protectors Contact area 2.5 mm Grounding cable clamp For 16mm jacketed cable VAISALA _______________________________________________________________________ 19... -
Page 22: Table 6 Termbox Enclosure Specifications
User's Guide ______________________________________________________________________ Table 6 TERMBOX Enclosure Specifications Property Description / Value Size 260 x 160 x 91 mm Color RAL 9003 IP class IP65, NEMA4x Table 7 TERMBOX AC Power Protection Specifications Property Description / Value Input voltage range 100 - 240 VAC -10% +6% Max. -
Page 23: Appendix Atermbox-9000
Appendix A __________________________________________________________TERMBOX-9000 APPENDIX A TERMBOX-9000 TERMBOX-9000 has two 90V gas tube arresters and is intended to be used with, for example, Mitras Transmissiometer. TERMBOX-9000 replaces the previous termination box models 12596LP and 12597LP. The CG2 cable gland is covered with a blocking plug. Cable glands CG4 - 8 are blocked by dummy plugs. -
Page 24: Figure 9 Termbox-9000 Signal Connector Block
User's Guide ______________________________________________________________________ 0210-022 Figure 9 TERMBOX-9000 Signal Connector Block 0210-023 Figure 10 TERMBOX-9000 General Wiring Diagram 22 __________________________________________________________________ M210310EN-B... -
Page 25: Figure 11 Power And Signal Cabling Of Mitras Signals Baseline
Appendix A __________________________________________________________TERMBOX-9000 0210-025 Figure 11 Power and Signal Cabling of Mitras Single Baseline VAISALA _______________________________________________________________________ 23... -
Page 26: Figure 12 Power And Signal Cabling Of Mitras Double Baseline
User's Guide ______________________________________________________________________ 0210-024 Figure 12 Power and Signal Cabling of Mitras Double Baseline 24 __________________________________________________________________ M210310EN-B... -
Page 27: Appendix Btermbox-1200
TERMBOX-48. The CG2 cable gland is covered with a blocking plug. The cable glands CG4 - 8 are blocked by dummy plugs. See Figure 13 below. Mains input is protected by FPS111 circuit board. 0210-026 Figure 13 TERMBOX-1200 VAISALA _______________________________________________________________________ 25... -
Page 28: Figure 14 Termbox-1200 Signal Line Protector
User's Guide ______________________________________________________________________ 1209-023 Figure 14 TERMBOX-1200 Signal Line Protector 1209-024 Figure 15 TERMBOX-1200 General Wiring Diagram 26 __________________________________________________________________ M210310EN-B... -
Page 29: Appendix Ctermbox-1212
RS-485, LON, and leased-line modems. Cable gland CG2 is covered with a blocking plug. The cable glands CG4 - 8 are blocked by dummy plugs. See Figure 16 below. Mains input is protected by FPS111 circuit board. 0210-029 Figure 16 TERMBOX-1212 VAISALA _______________________________________________________________________ 27... -
Page 30: Figure 17 Termbox-1212 Signal Line Protectors
User's Guide ______________________________________________________________________ 1209-025 Figure 17 TERMBOX-1212 Signal Line Protectors 1209-026 Figure 18 TERMBOX-1212 General Wiring Diagram 28 __________________________________________________________________ M210310EN-B... - Page 32 *M210310EN*...
