KEY SAFE INSTRUCTIONS
AT TENTION
Please read the operating instructions carefully
before you operate the lock or try to set a new
combination of numbers. We can not accept any
liability for malfunction due to the setting of the
combination being carried out incorrectly.
We can not accept any liability for any damage or
C
for loss of property. The product is used entirely
at the owner's risk. The Key Keeper leaves the
M
factory with no preset code please note you will
need to set your own code before use.
Y
CM
FIRST OPENING
1. Slide the black button marked CLEAR
MY
downwards
CY
2. Slide the Silver OPEN button downwards
3. Remove the Key Safe Cover
CMY
K
Slide the black
button marked
CLEAR
DOWNWARDS
22/11/2016
2:55 pm
SET YOUR CODE
1. Choose your code 3 to 10 numbers
2. Remove the White back cover
using a Philips Head Screwdriver
on the centre screw
3. You will see 10 small Black Screws with
Arrows pointing upwards.
4. With the Setting Key provided turn the screws
clockwise 180 degrees so the Arrows are
pointing downwards E.g. if your code is 1,2,3,4
these Arrows should be facing downwards and
the others still facing upwards.
Not Active
5. Slide the black clear button downwards.
6. Replace the white back cover
CHECKING YOUR CODE
1. Slide the black clear button downward
2. Enter your code (note: you can enter in any order)
3. Slide the silver open button downwards.
If your code is set correctly the silver latch
will retract completely.
4. With the silver latch completely retracted the
Key Safe Cover can be inserted back into
the Key Holder
OPENING YOUR SAFE
1. Slide the clear button downwards
2. Enter your code
(note: you can enter in any order)
3. Slide the silver open button downwards and
remove key safe cover
OPENING SHACKLE
1. Open the safe and remove the Safe cover
2. Lift the Shackle Lever towards you to
release the shackle
3. Slide the shackle upwards to remove
from housing
Active
LOCKING SHACKLE
1. Slide shackle back into housing until it clicks back
into the shackle lever
2. Replace the safe cover

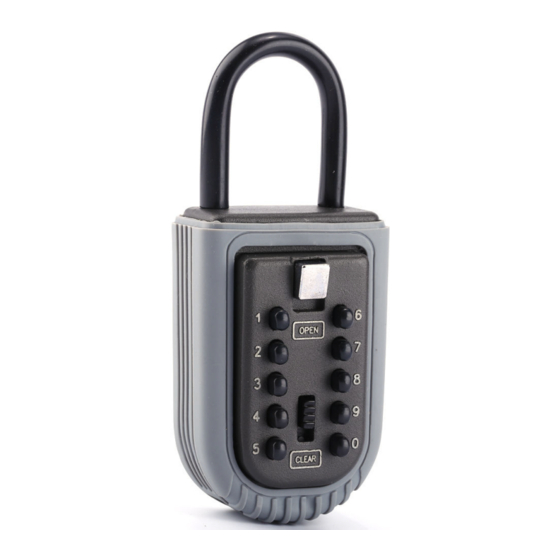

PORTABLE
KEY SAFE
PKSS70
Operating Instructions
Advertisement
Table of Contents
Summary of Contents for Sandleford PKSS70
- Page 1 We can not accept any PKSS70 4. With the silver latch completely retracted the 3. You will see 10 small Black Screws with...
- Page 2 Shackle Open Latch Code Button Clear Button Back Cover Safe Body Sandleford Holdings will not accept or be responsible for any loss or Shackle Lever damage caused in the event of theft or unauthorised use” Setting Key Tel 03 97860055...
Need help?
Do you have a question about the PKSS70 and is the answer not in the manual?
Questions and answers
Hi. I can't re-shackle my lock box. The 'locking mechanism' will not move in any direction so I can't re-insert the shackle into the 'box'. The shackle is essentially locked out.
To fix the locking mechanism on a Sandleford PKSS70 lock box that won't move, follow these steps:
1. Ensure the shackle is properly aligned: Slide the shackle back into the housing until it clicks into the shackle lever.
2. Check the shackle lever: Make sure the shackle lever is lifted towards you to release or lowered to lock the shackle.
3. Slide the black "CLEAR" button: Slide the black button marked CLEAR downwards to reset the mechanism.
4. Enter your code: Input your code in any order, then slide the silver OPEN button downwards to open.
5. Slide the black clear button again: After locking, slide the black clear button downwards.
6. Replace the back and safe covers: Ensure both covers are properly reattached.
If the mechanism still won't move, the shackle may not be fully seated, or the code may not be entered correctly. Recheck alignment and code entry.
This answer is automatically generated
