- Page 1 PERSONAL RADIATION DETECTOR QUICKSTART GUIDE...
- Page 2 INTRODUCTION...

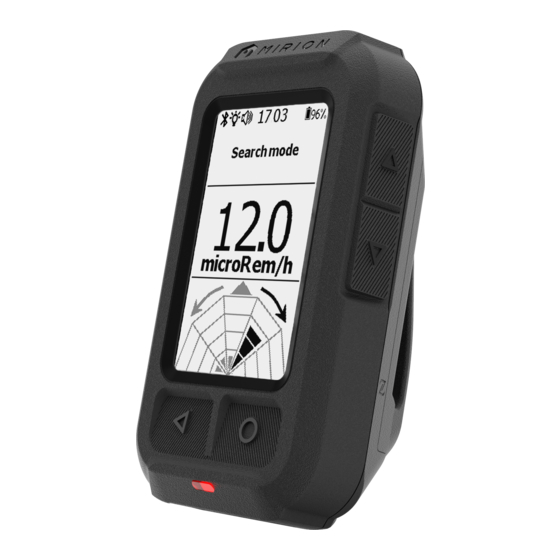

- Page 3 The AccuRad™ PRD is a Personal Radiation Detector (PRD) designed for law enforcement, fire and rescue, and other emergency responders to detect and interdict nuclear and radioactive materials. It also provides dose measurement and alarming capabilities for event response.
- Page 4 Exceptional Radiological Performance The AccuRad PRD features accurate and wide dose rate measurement from background to 1000 Rem/h; mitigation of false alarms with Varying Background Suppression (VBS). Cumulative dose measurements are in compliance with industry dosimetry standards. Smooth User Experience Dual display screens and large buttons optimize operation for belt-worn or handheld applications;...
- Page 5 Robust Protection The AccuRad PRD is resistant to dust, sand and moisture, drop tested at 1.5 m, and rated IP-67. The PRD body has superior protection providing shock resistance and easy handling. The AccuRad PRD can be used in temperatures from -4 °F (-20 °C) to 140 °F (60 °C).
- Page 6 ACCURAD PRD OVERVIEW A. Front Display B. Back Button C. Enter Button D. Arrow Up E. Arrow Down...
- Page 7 F. Battery Cover Tab G. Battery Compartment Cover H. Belt Clip I. Power Button J. USB-C Port K. USB LED Indicator L. Alarm LED Indicator M. Top Display...
- Page 8 GETTING STARTED Installing Batteries STEP 1 1. Lift and left quarter turn of battery cover 2. Remove battery cover STEP 2 1. Replace the two (2) AA alkaline batteries and install in correct orientation STEP 3 1. Install battery cover 2.
- Page 9 Power ON The AccuRad PRD 1. Press the 2. Start-up with 3. Background 4. Measurement power button AccuRad PRD update data is details and self sequence displayed and test sequence ready to go! Power OFF The AccuRad PRD 1. HOLD the 2.
- Page 10 PRD is carried. The reference direction of the measurement and the distance measurement have an impact of the quality measurement. Correct position to wear the AccuRad PRD: Using the PRD in Discreet Mode The Discreet mode can be used when the operator does not want the PRD alarms to be visible to others.
- Page 11 Using the PRD in Detection Mode STEP 1 Wearing the PRD in Detection Mode Dose rate is automatically provided on both displays STEP 2 PRD alarms when it detects a source The PRD activates the audible buzzer and vibration LOW ALARM HIGH ALARM DANGER STEP 3...
- Page 12 Enabling Search Mode Search Mode via Menu STEP 2 STEP 3 Press the enter AccuRad PRD STEP 1 (O) button again to assists with locating Press enter (O) button begin Search mode the source to access the menu (See next page)
- Page 13 Using the Radar in Search Mode STEP 1 STEP 2 Turn Left or Right Sectors indicate source intensity versus direction. to build the radar sectors. Black sectors/arrows indicate the direction. STEP 3 Go in the direction of the black sectors and arrows to localize the source.
- Page 14 Exceptional NFC & BLE Radiological Data Performance Transmission Robust Smooth User Protection Experience Directional >900 Hour Source Continuous Localization Operation Discreet Mode for Covert Operations...
- Page 15 “I keep this thing on me 24/7 when I’m working...It’s like carrying the gun; you know it’s there, but you don’t have to think about it.” SGT. TIM PRICE COBB COUNTY BOMB SQUAD...
- Page 16 TECHNICAL Nuclear Dose Equivalent • Hp(10) – Personal dose equivalent rate Quantity Units • Sv, rem, unit-less (0-9), cps (search mode) • CsI(Tl) scintillation detector with temperature compen sated SiPM Detectors • Sensitive volume: 10 mm (0.4 in.) diameter by 35 mm (1.4 in.) long •...
- Page 17 • NiMH 1.2 V batteries (rechargeable) • USB-C (recharges NiMH) Power Supply Please inquire on accurad.mirion.com for test reports and certificates of conformity (ANSI N42.32, IEC 62401, CE). Certificate provided with purchase of the AccuRad PRD. Find more information at: ACCURAD.MIRION.COM...
- Page 18 Abandonment or destruction of equipment containing a radioactive source is forbidden. If no longer required, the user must inform Mirion Technologies who will arrange to take the source back (according to the contract) and establish a certificate stating that the source has been taken back. In the event that the source is lost or stolen, the user must inform the appropriate authorities as soon as possible.
- Page 19 Mirion products listed herein are registered trademarks or trademarks of Mirion Technologies, Inc. or its affiliates in the United States and other countries. Third party trademarks mentioned are the property of their respective owners.
- Page 20 Learn More: ACCURAD.MIRION.COM...
