Summary of Contents for VSV VUB15
- Page 1 INSTALLATION MANUAL USER’S GUIDE UNIVERSAL FILTRATION BLOCKS 15, VUB25 and VUB20/50...
-
Page 2: Table Of Contents
2.1/d Block VUВ15 + heat exchanger ………..…………………………………………………………………………..… 2.1/e Block VUВ25 + heat exchanger ………..…………………………………………………………………………..… 2.1/f Block VUВ20/50 + heat exchanger ………..………………………………………………………………………… 2.1/g Block VUB15 + electric heater …..……………..……………………………………………………………………. 2.1/h Block VUB25 + electric heater …..……………..……………………………………………………………………. 2.1/i Block VUB25 + electric heater …..……………..…………………………………………………………………….. - Page 3 13 – SYSTEM DISINFECTION ……………………………………………………………………………………… Ideal chlorine level …………………………………………………………………………………………………………………….. Dosage table ……………………………………………………………………………………………………………………………… 14 – PRODUCT MAINTENANCE …………………………………………………………………………………… 15 – HOW TO ELIMINATE SMALL MALFUNCTIONS ………………………………………………………….. 16 – CENTER OF TECHNICAL SUPPORT …..……………………………………………………………………. CERTIFICATE OF WARRANTY ………………………………………………………………………………. Warranty conditions …………………………………………………………………………………………………………………..
-
Page 4: General Information
VSV Aqua Group products will enjoy you for a long time. COPYRIGHTS Corporation VSV Aqua Group reserves its right to introduce into present guide without any additional notification the corrections, connected with the improvement of equipment, and also in the case of inaccuracies and misprints. -
Page 5: Principal Scheme Of Universal Blocks Vuв
* VUB15 and VUB25 are supplied with pneumatic button to make possible connection of counter-swimming function at the replacement of one-speed pump by two-speeds pump;... -
Page 6: Block Vuв15
- total dynamic head H max. 19 m; • Technical compartment includes: one-speed pump 220V (in models VUB15 and VUB25) or two-speeds pump 220V with control box (in model VUB20/50), spotlights transformer, drain outlet, multiconductor connection box, connecting pipes with stop valve, grounding bolt. -
Page 7: Block Vuв15 + Heat Exchanger
• Technical compartment includes: heat exchanger with electronic thermostat (minimum heat transfer is 15 kW, maximum - 59 kW), one-speed pump 220V (in models VUB15 and VUB25) or two-speeds pump 220V with control box (in model VUB20/50), spotlights transformer, drain outlet, multiconductor connection box, connecting pipes with stop valve, grounding bolt. -
Page 8: Block Vub15 + Electric Heater
• Technical compartment includes: electric heater of laser type with control box, one- speed pump 220V (in models VUB15 and VUB25) or two-speeds pump 220V with control box (in model VUB20/50), spotlights transformer, drain outlet, multiconductor connection box, connecting pipes with stop valve, grounding bolt. Technical compartment can be installed at distance 7 meters maximum from the pool. -

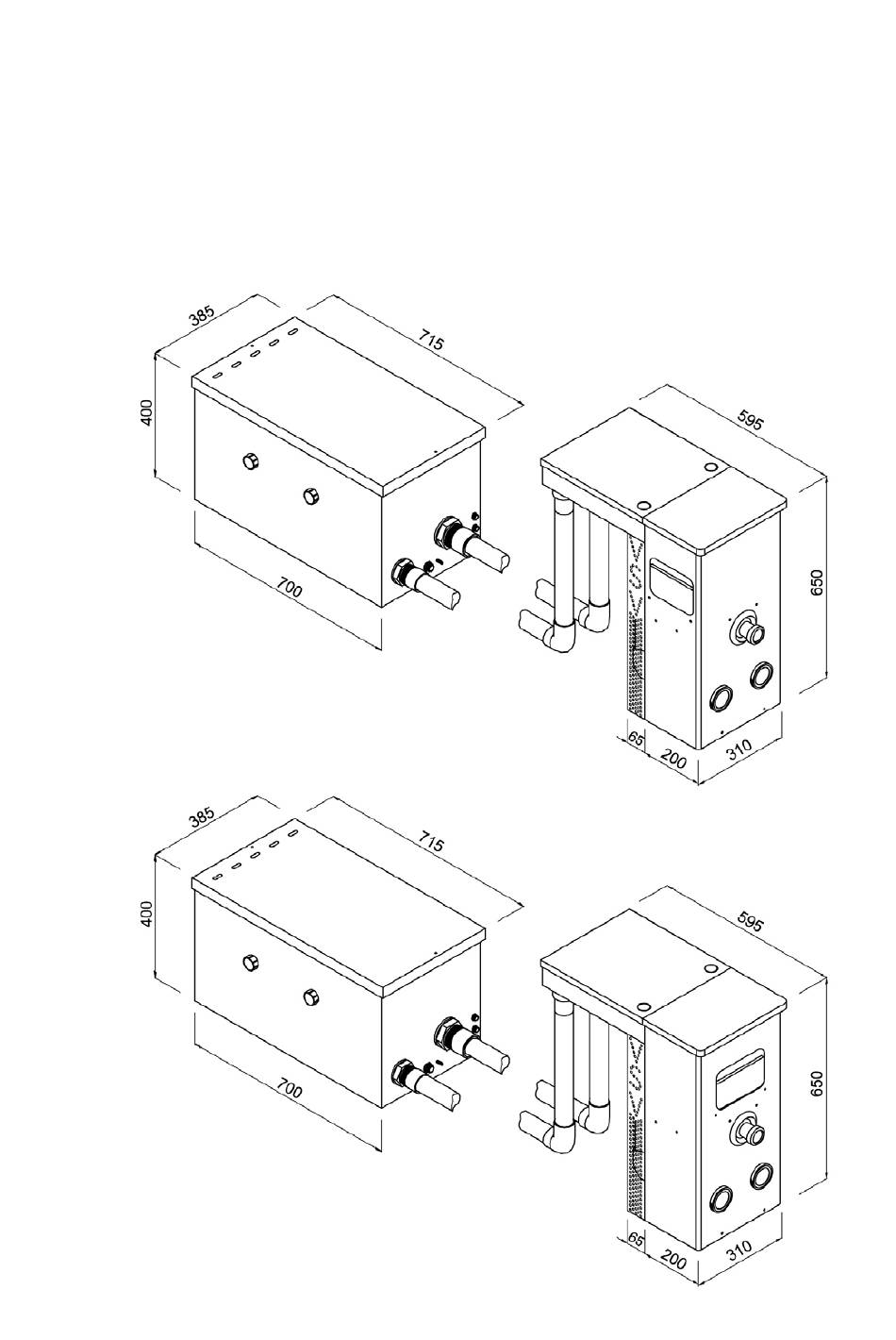

Page 9: Total View And Dimensions Of Equipment
3 –TOTAL VIEW AND DIMENSIONS OF EQUIPMENT 3.1. Total view and dimensions of universal blocks VU15, VUB25 and VUB20/50 filtration unit holder skimmer discharge nozzle spotlights 2x75W filtration unit body adjustable support decorative side plate... - Page 10 Filtration unit cover discharge nozzle spotlights 2x75W filtration unit body filtration unit cover filtration unit holder decorative grate discharge pipe spotlight power supply cable suction pipe adjustable support...
-
Page 11: Installation Of Equipment
4 – INSTALLATION OF EQUIPMENT 4.1. Installation of universal filtration blocks VUВ15, VUВ25 and VUB20/50 Install filtration block carefully not to damage a waterproofing covering (liner). Submerge the block into water, regulate adjustable support, after that fix it with fixing bolts on pool’s wall in the specially foreseen for that places (see the drawing “... -
Page 12: Installation Of Technical Compartment Of Universal Blocks
technical compartment playground stone max.7m. coping stone back filling filtration block liner lock mount profile swimming pool wall down reinforcement swimming pool concrete shell 4.2. Installation of universal blocks’ technical compartment Preparation of the base for technical compartment Technical compartment should be installed in the location zone 2 (VDE 0100-702) For installation of the technical compartment create a basis from sand and rubble. -
Page 13: General Safety Rules
5 - GENERAL SAFETY RULES The filtration unit can be heated up under exposure of direct sunbeams. Don’t touch the heated parts of filtration unit during the time of usage. Do not allow the usage of filtration equipment by people (including children) with depressed psychophysical capabilities or with insufficient experience and knowledge, with exception of cases, when they are watched closely, or they were instructed by responsible for their safety person. -
Page 14: Equipment Mounting
6 – EQUIPMENT MOUNTING 6.1. Universal blocks mounting WATER TOPPING-UP Lead a pipe of the water pipeline to filtration block and connect it to the ingoing bushing (a thread of 3/8”). Ensure leak resistance of the joint. ATTENTION! The system of automatic water filling is designed for water pressure of 4.5 Bars maximum. -
Page 15: Electrical Connections
7 – ELECTRICAL CONNECTIONS ELECTRIC CONTROL PANEL fuse 16A fuse 6A differencial switch (pump's second speed) (spotlight and pump) programmable timer spotlight switch filtration unit Manual 16A 6A operational mode switch 3 positions Auto Electrical control panel case 240x190x98mm main power supply cable main power supply 7x2,5mm to pump and... -
Page 16: Electrical Control Panel Connection Scheme
CONNECTION SCHEME OF ELECTRICAL CONTROL PANEL in universal blocks Connection of power supplies is made to the top terminals of the differential switch, observing polarity. Main power supply cable of pump and spotlight transformer is connected to terminals according marking on the cable wires and enclosed scheme. -
Page 17: Multiconductor Connection Boxes Of Universal Blocks
MULTICONDUCTOR CONNECTION BOXES of universal blocks Lead pump and transformer main power supply cable into technical compartment through intended for it tightening gland. Tighten a nut of a gland to avoid water leakage into technical compartment. Lead a cable into connecting box and connect wires according enclosed diagram. -
Page 18: Heat Exchanger Electrical Connection Scheme In The Universal Blocks
MULTICONDUCTOR CONNECTION BOX OF FILTRATION UNITS (with electric heater) cable 2x1,0mm wire 2,5mm to spotlight to ground transformer spotlight pneumatic switch yellow-green brown blue black (only for VUB20/50) blue brown yellow-green cable 2x1,0mm to electric heater cable 4x2,5mm to pump 20/50m cable 7x2,5mm (cable 3x1,5mm to pump 15, 25m... -
Page 19: Heat Exchanger Hydraulic Connection Scheme In The Universal Blocks
HYDRAULIC CONNECTION SCHEME OF HEAT EXCHANGER in universal blocks VUВ15, VUВ25 and VUB20/50 Connect heat exchanger with gas boiler according enclosed scheme. circulation pump of heating circulation pump of heat exchanger thermal protection switch 3-position valve valves pipe 26/34 technical compartment of filtration unit heat exchanger non-return valve... -
Page 20: Electric Heater Connection Scheme In The Universal Blocks
CONNECTION SCHEME OF ELECTRIC HEATER in universal blocks VUВ15, VUВ25 and VUB20/50 Power supply connection is made on the top terminals of the differential switch, observing alternation of phases. Pay attention that the cross-section and quantity of cable wires should correspond to your electric heater model Power supply Power supply... -
Page 21: Ground Connection Mounting
8 - GROUND CONNECTION MOUNTING Make the grounding of the filtration equipment following norms of your country. Connect technical and filtration compartments to the ground with flexible copper wire with cross-section 10 mm ATTENTION! Absence of grounding is dangerous for life. If your filtration equipment is not grounded or grounding is done incorrectly, there is a risk of corrosion for filtration unit’s metal parts because of a difference of potentials. -
Page 22: Putting Into Operation
9 – PUTTING EQUIPMENT INTO OPERATION 9.1. UNIVERSAL BLOCK’S START-UP AND OPERATION 1.Remove cover of filtration compartment INITIAL START-UP Check up again all pipes connections (see section “Universal filtration block mounting”). Finish swimming 3. Take out console pool water filling. Make sure, that the water level in the swimming pool coincides with upper edge of the 2.Unscrew 2 screws skimmer shutter. -
Page 23: Filtration Membrane And Its Installation
10 - FILTRATION MEMBRANE AND ITS INSTALLATION ATTENTION! It is forbidden to operate filtration unit without filtration membrane, because it can result in pump’s breakage. In universal filtration blocks VUB water is sucked in by the skimmer and is filtrated through the filtration membrane. -
Page 24: Vacuum-Cleaner Connection And Operation
VACUUM CLEANER CONNECTION AND OPERATION Fill a vacuum cleaner hose with Assemble water vacuum cleaner and put it down in the swimming pool. water using the water discharge nozzle. Take out prefilter baskets and insert vacuum-cleaner cups on their places. Connect a vacuum cleaner hose to the cup with hole and start swimming pool vacuum cleaning. -
Page 25: Replacement Of Spotlight Bulb
11 - SPOTLIGHT BULB REPLACEMENT in universal blocks Turn off power supply of filtration unit. Turn spotlight clockwise untill spotlight’s holders will not get in the slots on the front part of filtration unit. Take out the spotlight from water carefully extending a reserve of cable. Take a spotlight’s cup and unscrew counterclockwise decorative nut of spotlight. -
Page 26: System Disinfection
13 - SYSTEM DISINFECTION ATTENTION! Exceeding of chlorine level can cause the corrosion of the system. • Put chlorine tablets into plastic prefilter baskets or chlorinator (floating container for chlorine). • Always store your treatment products out of direct sunlight and away from children, in a well-aired or well-ventilated area •... -
Page 27: Product Maintenance
14 - PRODUCT MAINTENANCE ATTENTION! It is forbidden to use abrasive cleaning means. Filtration units for swimming pools are made from high-alloyed stainless steel. Nevertheless, with time, depending on water quality and climate conditions, on the surface of a product could appear pollutions like limy sediments or fatty deposits. -
Page 28: Center Of Technical Support
For additional information apply to the centre of technical support to the address: e-mail: info@vsv-group.com If you have any questions and proposals or if you want to get information about other VSV Aqua Group products, manual and installation instructions, you are welcomed to visit us in Internet: www.vsv-group.com. -
Page 30: Warranty Conditions
Guarantee is given only at presence of an authentic guarantee coupon, in which there were indicated the serial number of Equipment and the date of its purchase. Company VSV Group reserves its right to refuse in guaranteed after-sales service, if after the primary purchase of equipment this information was lost or changed.
