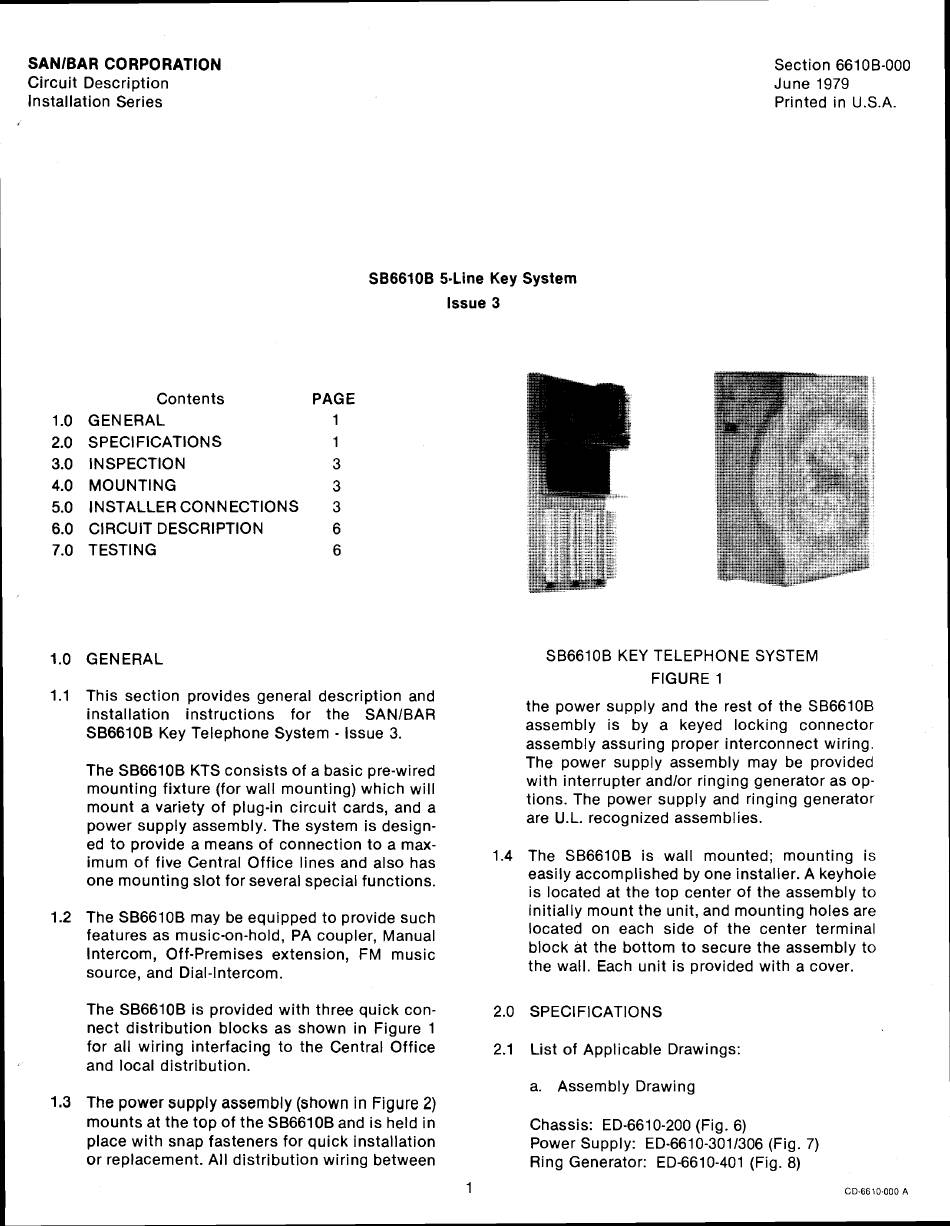

SAN/BAR SB6610B Manual

SANlBAR CORPORATION
Circuit Description
Installation Series
Section 6610B-000
June 1979
Printed in U.S.A.
SB6610B 5-Line Key System
lssue 3
Contents PAGE
1.0 GENERAL 1
2.0 SPECIFICATIONS 1
3.0 INSPECTION 3
4.0 MOUNTING 3
5.0 INSTALLER CONNECTIONS 3
6.0 CIRCUIT DESCRIPTION 6
7.0 TESTING 6
1.0 GENERAL
1.1 This section provides general description and
installation instructions for the SANlBAR
SB6610B Key Telephone System
-
lssue 3.
The SB6610B KTS consists of a basic pre-wired
mounting fixture (for wall mounting) which will
mount a variety of plug-in circuit cards, and a
power supply assembly. The system is design-
ed to provide a means of connection to a max-
imum of five Central Office lines and also has
one mounting slot for several special functions.
1.2 The SB6610B may be equipped to provide such
features as music-on-hold, PA coupler, Manual
Intercom, Off-Premises extension, FM music
source, and Dial-Intercom.
The SB6610B is provided with three quick con-
nect distribution blocks as shown in Figure 1
for all wiring interfacing to the Central Office
and local distribution.
1.3 The power supply assembly (shown in Figure
2)
mounts at the top of the SB6610B and is held in
place with snap fasteners for quick installation
or replacement. All distribution wiring between
SB6610B KEY TELEPHONE SYSTEM
FIGURE 1
the power supply and the rest of the SB6610B
assembly is by a keyed locking connector
assembly assuring proper interconnect wiring.
The power supply assembly may be provided
with interrupter andlor ringing generator as op-
tions. The power supply and ringing generator
are U.L. recognized assemblies.
1.4 The SB6610B is wall mounted; mounting is
easily accomplished by one installer. A keyhole
is located at the top center of the assembly to
initially mount the unit, and mounting holes are
located on each side of the center terminal
block at the bottom to secure the assembly to
the wall. Each unit is provided with a cover.
2.0 SPECIFICATIONS
2.1 List of Applicable Drawings:
a. Assembly Drawing
Chassis: ED-6610-200 (Fig. 6)
Power Supply: ED-6610-3011306 (Fig. 7)
Ring Generator: ED-6610-401 (Fig. 8)
