The Versatile Outlet Box for New or Old Work
™
Non-Metallic Outlet Boxes

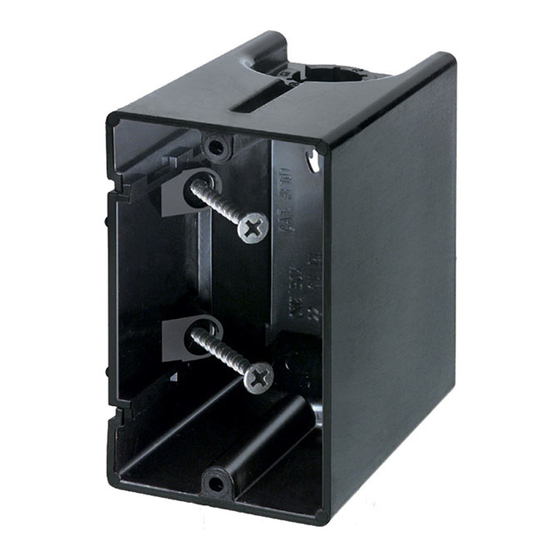

F101
The Versatile
Outlet Box
F102
F104
2-gang
4-gang
Patents pending.
Fast and easy to install, Arlington's versatile
outlet box is the ONE BOX™ for new or
old work.
It mounts directly to a wood or steel stud
for a super secure installation.
Angled screws inside the ONE-BOX affix it
firmly to the stud. It has no wings so
there's no wobble.
NEW WORK
ONE-BOX set too far forward or back? No
problem. Back the screws out and adjust
it.
OLD WORK
ONE-BOX
provides
a secure
installation.
It mounts
directly to the
stud, not just
the drywall.
•
Extra-large cubic inch capacity
•
cULus Listed
•
Single gang (horizontal and vertical)
and multiple gang styles
•
For power and low voltaqge
applications with the F102D voltage
separator installed
•
Installed NM cable connector
R
rlington
1 Stauffer Industrial Park
Scranton, PA 18517
800/233.4717
Fax 570/562.0646
www.aifittings.com
