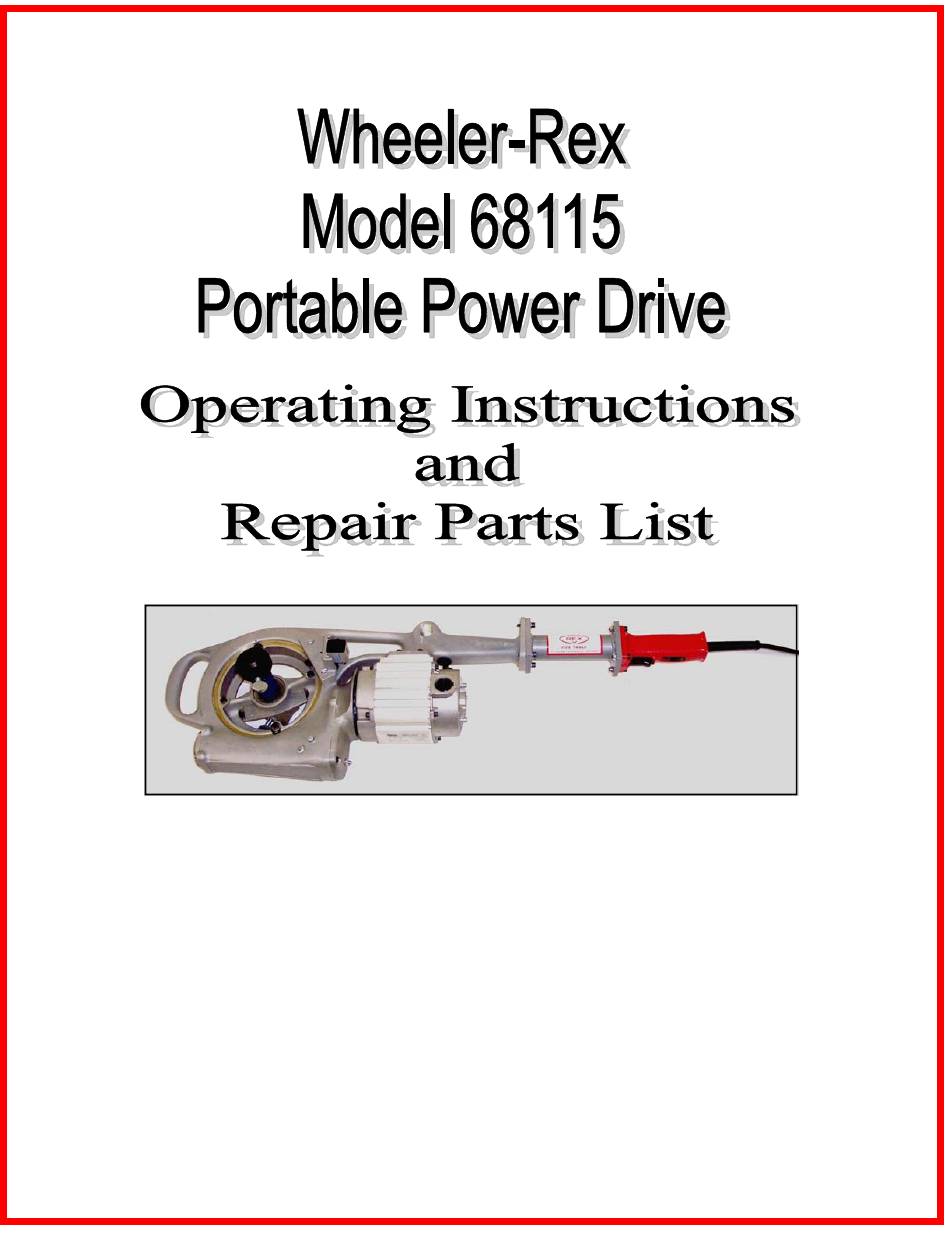

- Page 1 Wheeler Mfg. Div Rex Intl USA Inc. 3744 Jefferson Road Ashtabula, OH 44004 Tel: 800-321-7950 Fax: 440-992-2925 wheeler@wheelerrex.com www.wheelerrex.com...
- Page 2 Other adapters available to use with the 68115 power drive. 10696 Adapter for 12R Drop Head Dies 10709 1” Square Female Adapter Telescoping Valve Keys Quick disconnect pull pins make adjustments fast and easy. Both a manual handle and a 1” square power adapter are included.
- Page 4 ITEM PART DESCRIPTION NUMBER 19711 FRAME - POWER DRIVE (MACHINING) 10361 GEAR COVER (MACHINING) 10360 BEARING CAP 10424 GASKET 10354 MOTOR PINION 10356 PINION SHAFT 10358 WORM 10364 WEAR RING 10365 SPACER 10391 BEARING 11106 RETAINING RING 10385 WOODRUFF KEY NO. 3, USA STD 404 10384 WOODRUFF KEY NO.
- Page 6 68115 / 681150 Power Drive - Counter Adding electronic counter assembly Remove set screws 2. Replace with digital counter assembly and the two socket head cap screws. 3. Magnet bracket should be positioned with approximately 3/16” gap between its self and the sensor that is fastened to the digital counter bracket.

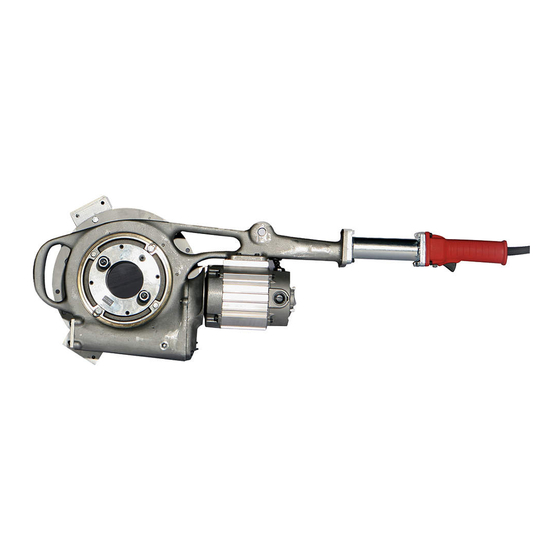

- Page 11 68115 / 681150 Portable Power Drive Beefed-Up Worm, Heavy-Duty On-Off and Reversing Switches and add extra reliability!! Lightweight and powerful!! Threads pipe and conduit 1/8” through 8”, drives geared cutters and groovers through 8”, operates valves, powers many applications. threads bolts, drives tie-down anchors too.
- Page 12 Threading Pipe Grasp the handle in the right hand and the end handgrip in the left hand. The face of the die stock should be toward the operator. Place the drive on the pipe as you would in handling a hand operated die stock.
- Page 13 Right hand should be firm on the handle and the power switch of the tool. Press power switch ON and cut threads applying oil as needed. Because the 68115 cuts and threads faster continuously, less oil is required. Finishing the Thread Approaching the end of the thread, be careful that the thread is not run onto the pipe far enough to lock the head of the die stock.
- Page 14 Care in Servicing ..The 68115 power drive is and “on the job” tool. It is designed for everyday use and for trouble- free operation. The frame is made of high strength cast aluminum alloy.
- Page 15 (2) or more times this amount. This amount of torque may be damaging to many devices upon which the 68115 power drive may be used. Using the safety adapter, the operator can predetermine a safe torque limit and set the adapter to release at this point.
- Page 16 Wheeler Mfg. Div Rex Intl USA Inc. 3744 Jefferson Road Ashtabula, OH 44004 Tel: 800-321-7950 * Fax: 440-992-2925 wheeler@wheelerrex.com www.wheelerrex.com...
