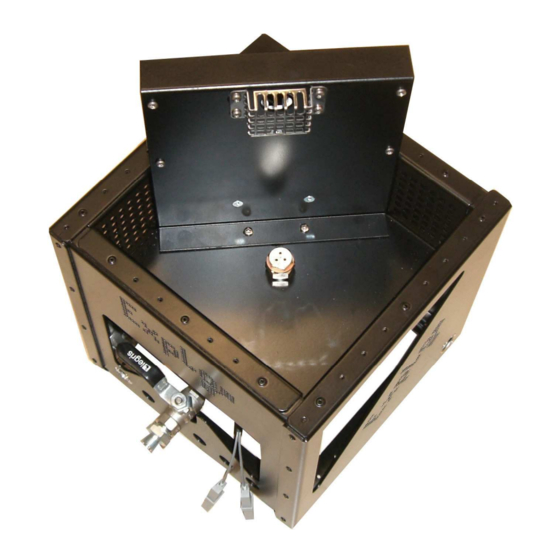

- Page 1 Explo Zündtechnik Gasprojector GX1 / GX2 from Version 2.0 Manual Safety and Health Documents Explo Zündtechnik Harald Kulterer Völkermarkterstrasse 240 A-9020 Klagenfurt Tel: +43 (0) 463 / 32 2 45 Fax: +43 (0) 463 / 32 2 45 75 Mobil: +43 (0) 664 / 51 007 51 www.explo.at...
- Page 2 Manual Gasprojector Textversion 2.0 Manual for Explo Gasprojector (from Version 2.0)
- Page 3 Manual Gasprojector Textversion 2.0 Contents Foreword ..............Fehler! Textmarke nicht definiert. Overview..............Fehler! Textmarke nicht definiert. Usage ..............Fehler! Textmarke nicht definiert. Technical Specifications ..................... 11 Safety regulations ........... Fehler! Textmarke nicht definiert. Safety checklist ......................13 Certificates of Examination ........Fehler! Textmarke nicht definiert. Functions ........................
-
Page 4: General Overview
Outdoor-Use. The system consists of a Gasprojector and a RX-Mastermodule, which can be activated by transmission signal with the right Explo Ignition systems. A manual Release without a Mastermodule is also possible. Safety Regulations that need to be followed can be read in the Attachment! - Page 5 Manual Gasprojector Textversion 2.0 Usage Before the use of the Gasprojector: To prevent accidents, the whole manual has to be read through before usage! General usage of Propane gas • When using gas, it is extremely important to follow all Safety regulations! Important: Since propane gas is heavier than air, it should never be used in unventilated or closed rooms, in Earth moulds (>30cm) or near drains.
- Page 6 Manual Gasprojector Textversion 2.0 Pic 3 – Burn nozzle for normal gas Pic 4 – Attachment of the nozzle on the top. 3. Connecting the Mastermodule with a Gasprojector, and maybe connection up to 16 more Gasprojectors. The LED sitting on the electronic of the Gasprojector should flash three times, after the battery has been fully charged and the device is switched on.
- Page 7 Manual Gasprojector Textversion 2.0 Pic – Sending an Ignitionsignal to the receiver 5. The Gasbottles must be placed on firm ground, and be kept from falling over. 6. Before connecting the Gas tanks, the safety valve must be turned closed. 7.
- Page 8 Manual Gasprojector Textversion 2.0 Pic – 3 Gasprojectors on one Gas tank If more than 3 Gasprojectors are being used, more propane gas bottles must be used. Because of synchronicity, we recommend using an odd number of Gasprojectors. 8. Controlling the whole system with a Leakage spray. Pic –...
- Page 9 Manual Gasprojector Textversion 2.0 In no case, you should use figure lights, or pyrotechnical igniters! This leads to damage by slag development in the nozzle head. Pic – Piezo igniter Attention: If no recommended Gas igniter is being used, burnings can occur through the pilot flame.
- Page 10 Manual Gasprojector Textversion 2.0 Disassembling the System After the use of the Gasprojector the valve on the Gas tank must be closed. The connecting-tubes of the Gaqsprojectors are to be ventilated by repeated activation of the magnetic valve. Attention: This leads to flame pillars from the Gasprojectors. Only after the pilot flame has ceased, the tubes may be disconnected.
-
Page 11: Technical Data
Manual Gasprojector Textversion 2.0 Technical Data • Gasprojector GX1 /GX2 Dimensions: Width: 260 mm Depth: 260 mm Height: 270 mm Weight: 5.4 kg Power source: 12V, 2.3 Ah, Lead-gel-Akku Flame height: Normal Gas phase: 2.5 Meters Liquid Gas phase: 6 Meters Used Gas: Propane gas, Bottle with 5,5kg or 11kg Gas-Connector: Euro-Norm, 30mm Wrench width. -
Page 12: Safety Instructions
Manual Gasprojector Textversion 2.0 Safety Instructions 1. The Device may only be activated when in good and proofed condition. Defunctional Devices must be repaired by an acknowledged Service, or by the manufacturer, and until then may not be used. After each repair, the Device must be tested for its functionality by the manufacturer, who has to acknowledge this with a certificate of proof. -
Page 13: Safety Checklist
Manual Gasprojector Textversion 2.0 Safety Checklist Preparation: • 1. Show must be permitted by the administration in charge. 2. Fire Department/ Fire safety engineers must be informed. Set up: • 1. Check type of nozzle, and gas type. 2. Check leak tightness of the tube connections. 3. -
Page 14: Test Certificates
Manual Gasprojector Textversion 2.0 Test Certificates All relevant system pieces (Pilot Flame, pressure gauge and magnetic valve) are TÜV- and GS-proofed by the Distributor. Declaration of Conformity in the Attachment. The finished device, with internal connections, as well as tubings are tested according to the liquid gas-VO by a certified company. -
Page 15: Eg-Conformity Declaration
Textversion 2.0 EG-Conformity Declaration For the Gasprojector GX1 / GX2 it is hereby approved that it is in accordance with the main safety necessities of the ÖNORM M 7443 Part 3 (Gas devices with atmospheric burners; Specifications; Labels; Tests; Look-up tables; and inspection pressure), and... -
Page 16: Conformity Declarations
Textversion 2.0 Conformity Declarations For the Gasprojector GX1 /GX2 wit is hereby approved that it is in accordance with the main necessities of the ÖNORM M 7443 Part 3: 1989-05. The device has been tested for it's electromagnetic compatibility and is in accordance with the CE-Norms. - Page 17 Gasprojector – EXPLO IGN Systems Fa. EXPLO, Völkermarkter Strasse 240 A – 9020 Klagenfurt 2011 - every 2 years Function description - Manual - Fa EXPLO, mobile use BGBl Liquid gas 2002 FGV, idgF BGBl 450/1994 DIN-DVGW, CE Certification. Tubings, Magnetic Valve, pressure gauge, burner.
