MicroPace MP3393 Instructions For Use Manual

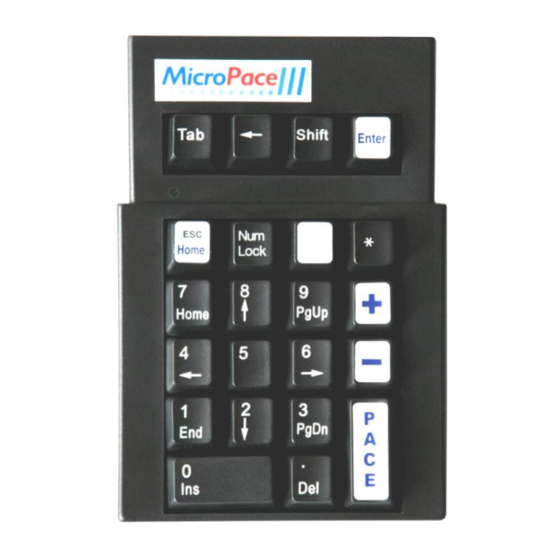

Compact numeric keypad
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

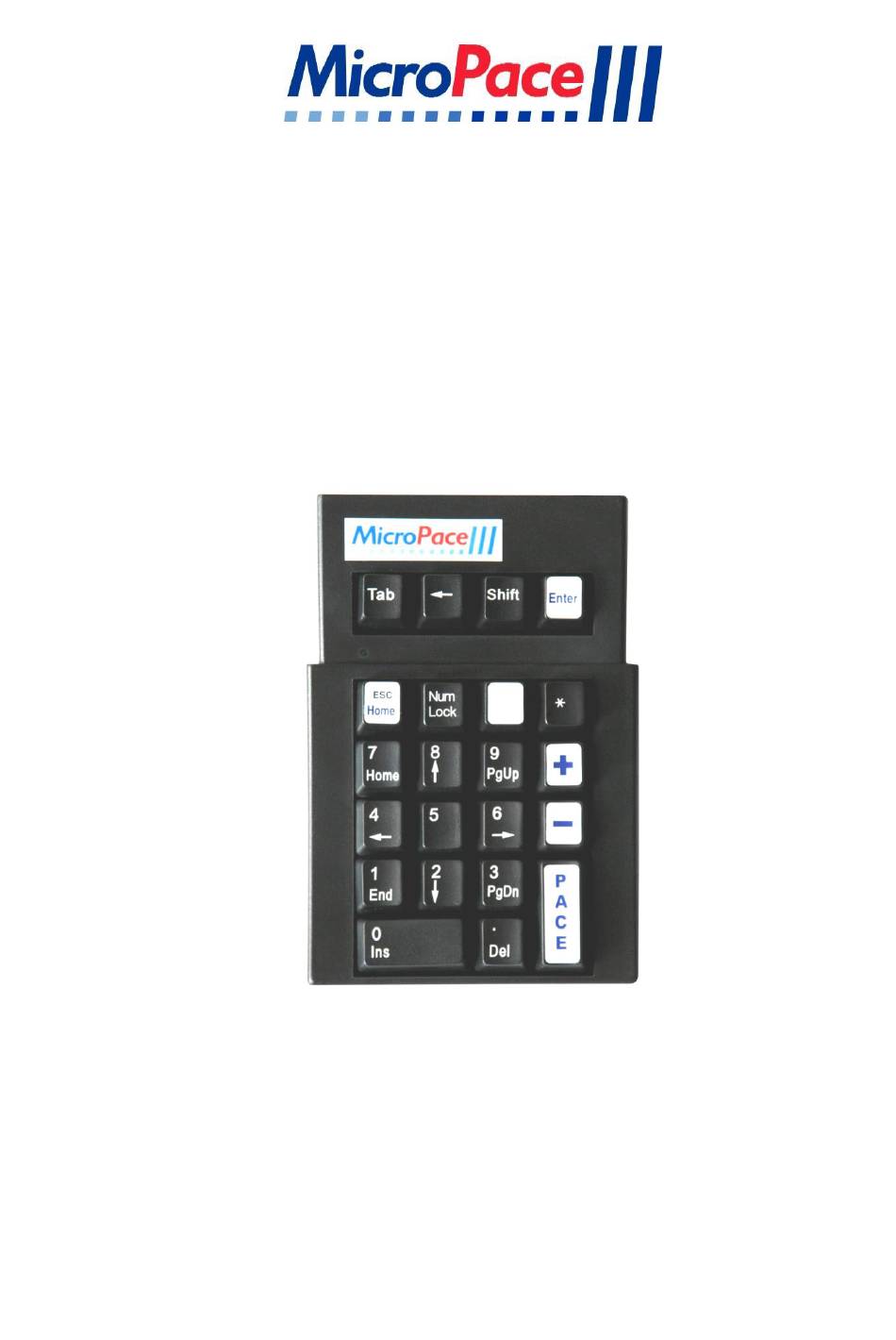

Compact Numeric Keypad
MP3393 Kit
Contents and Instructions for Use
with the Micropace EPS320
Series of Cardiac Stimulators
Micropace Pty Ltd
41/159 Arthur Street
Homebush West, NSW 2140, Australia
www.micropace.com.au
Document: MP3406, Ver 1.3, April 2017,
R_MP3393-Compact Numeric Keypad Leaflet_V1.3.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP3393 and is the answer not in the manual?

Questions and answers

Summary of Contents for MicroPace MP3393

  • Page 1 Compact Numeric Keypad MP3393 Kit Contents and Instructions for Use with the Micropace EPS320 Series of Cardiac Stimulators Micropace Pty Ltd 41/159 Arthur Street Homebush West, NSW 2140, Australia www.micropace.com.au Document: MP3406, Ver 1.3, April 2017, R_MP3393-Compact Numeric Keypad Leaflet_V1.3.doc...

  • Page 2: Features And Specifications

    Cautions 1. In order to prevent unreliable and unpredictable key operation: a) Use only with Micropace EPS320 software 3.21 or higher. b) Use only in combination with Touch Screen (MP3114) that is enabled in software. c) Do not use concurrently with keyboard (either with ‘Y’ splitter or by simultaneous use of PS2 and USB ports).
  • Page 3 Compact Numeric Keypad - MP3393 Do not use with computer other than the Bona Light PC (MP3093). g) Do not remove keypad labels or replace with custom labeling. If labels detach, discontinue use and obtain replacement label(s). h) In order to comply with FCC regulations regarding electromagnetic interference, only use cables supplied by Micropace.

  • Page 4: Using The Numeric Keypad

    The MP3415 Numeric Keypad is a great way to reduce your desktop footprint and streamline the usage of your Micropace Cardiac Stimulator. The keypad is designed to behave almost identically to your Micropace Standard Keyboard and has the following features: 1.
  • Page 5 Compact Numeric Keypad - MP3393 Numlock: toggles Completes numeric numbers vs arrows entry Exits menus Increments parameters Decrements parameters Toggles Pace On/Off Figure 5: The Keypad Labels Page 5 of 9 T_MP3393-Compact Numeric Keypad Leaflet_V1.3...

  • Page 6: Troubleshooting

    Compact Numeric Keypad - MP3393 Summary of Key function description Key: ....Name: .... Operation: 1-9 ........Digit entry for S1-S7 and other parameters. ←/ → ....Move focus ..With NumLock off, move focused (red) zone left/right. ↑ / ↓ ....Move focus ..With NumLock off, move focused (red) zone up/down.

  • Page 7: Maintenance

    Compact Numeric Keypad - MP3393 Symptom Potential Cause Remedy Use only the PS2 port – i.e. Numeric Keypad keys behave Using Numeric Keypad unexpectedly – wrong digits, connected to USB port may using the supplied USB to PS2 NumLock unresponsive, etc.
  • Page 8 Compact Numeric Keypad - MP3393 Page 8 of 9 T_MP3393-Compact Numeric Keypad Leaflet_V1.3...
  • Page 9 MicropaceEP on 714 258 7280) Serial Number of Micropace StimCor, StimLab, or EPS320: _________________________________ Serial Number of Micropace MP3415 Keypad (located on rear): _____________________________ Facility Name: __________________________ Address: ___________________________________ Installed by: ________________________________________________ Date: __________________ Verify Compatibility _____ Boot the system using a Standard Keyboard and clear any info messages by pressing ESC.
