Mini LED controller
warranty
5 years

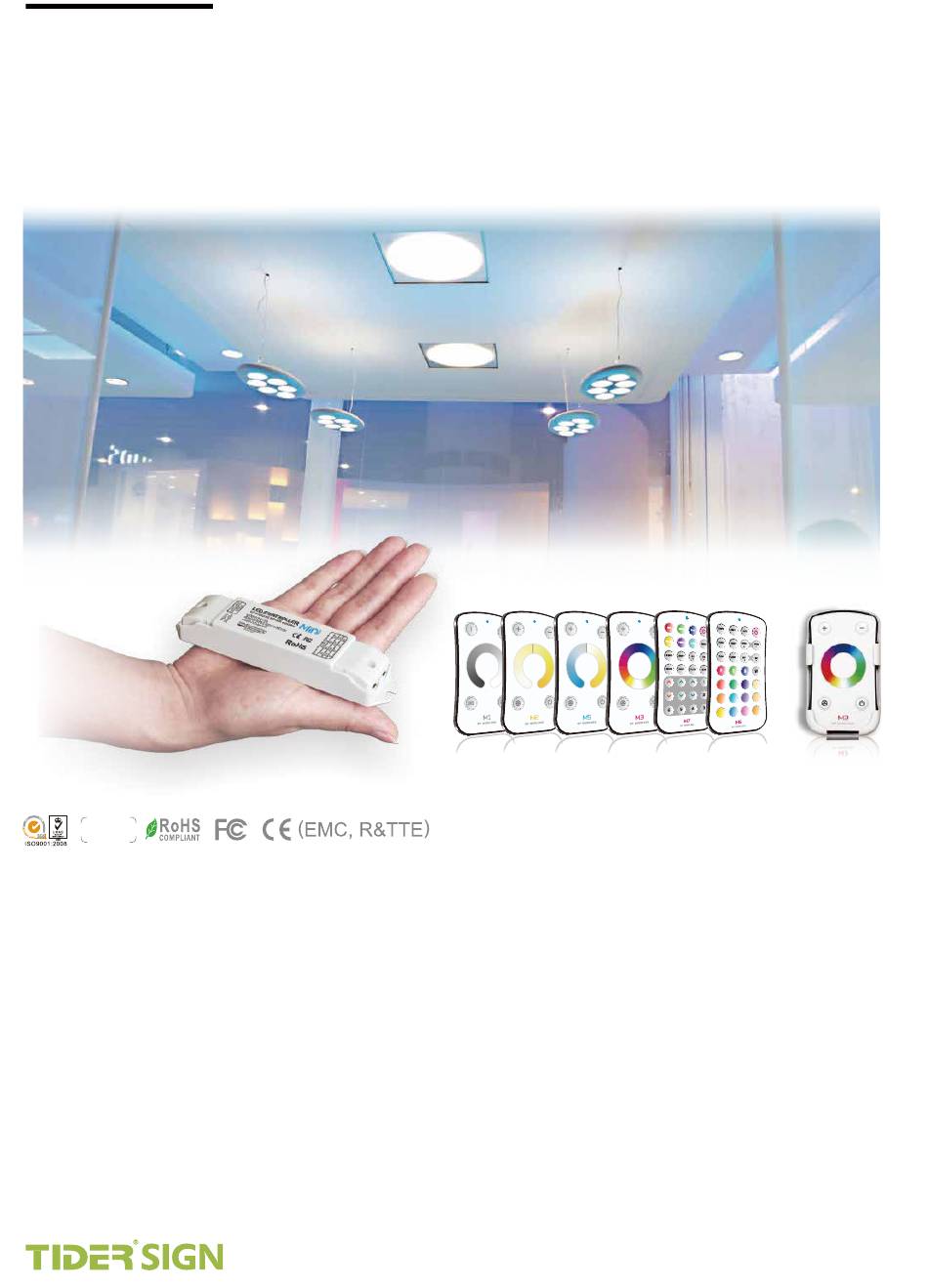

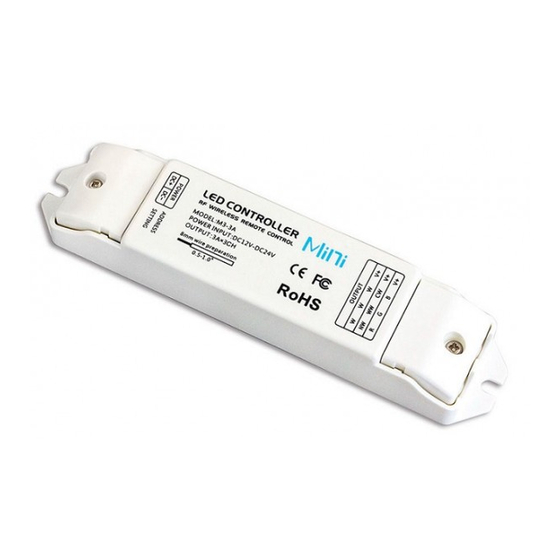

M series mini LED controller reflected LTECH 12 years' powerful independent R&D ability in LED field, Its
volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color
temperature control. Its high cost performance and creative design, allowing users to enjoy the benefits and
convenience.
TIDER
S
G I
N
Spectrumlaan 47-49
2665NM Bleiswijk The Netherlands.
Tel: 0031-79-3411152, 0031-79-3318921
Fax: 0031-79-3318919
TIDER, YOUR BEST SUPPLIER...
Wall-mounted
E-mail: info@tidersign.com
tidersign.com
Advertisement
Table of Contents
Summary of Contents for Tider Sign M Series
- Page 1 5 years M series mini LED controller reflected LTECH 12 years’ powerful independent R&D ability in LED field, Its volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control. Its high cost performance and creative design, allowing users to enjoy the benefits and convenience.
- Page 2 TIDER TIDER, YOUR BEST SUPPLIER... Receiver: Remote: Compatible Remote: M1/M2/M3/M5/M6/M7 Working Voltage: 3V (battery CR2032) Power Input: DC12V~DC24V Working Frequency: 433.92MHz Max Current Load: Max 3Ax3CH Remote Distance: 40m~50m Max Output Power: 108W(12V)/216W(24V) Working Temp.: -20°C~55°C Gray Scale Level: Max 4096×4096×4096 Dimensions: L104×W58×H9(mm) Working Temp.: -30°C~55°C Weight(N.W.): 42g...
- Page 3 TIDER TIDER, YOUR BEST SUPPLIER... Product Size: 135mm 60mm 128mm RF remote Remote holder Receiver The Learning ID Method of Remote Control: Remote control has been matched to the receiver before leave factory, if deleted accidentally, you can learn ID as follow. Learning ID: Short press ID learning button on the receiver, the running light is on, then press any key on the remote control, the running light flashes several times, activated.
- Page 4 TIDER TIDER, YOUR BEST SUPPLIER... Operating Instruction for Remote Control : M1/M2/M3/M5 sleep mode: when the touch remote unattended operation over 30s, it can automatically enter standby mode to extend battery life. press any of these four keys to continue. Scene-mode I Speed/Brightness+ Scene-mode...
- Page 5 TIDER TIDER, YOUR BEST SUPPLIER... Wiring Diagram: Dimming Single LED Strip Power Adapter M3-3A Figure A Power Adapter Single LED Strip M3-3A Single LED Strip Single LED Strip Figure B Tel: 0031-79-3411152, 0031-79-3318921 E-mail: info@tidersign.com Spectrumlaan 47-49 2665NM Bleiswijk The Netherlands. Fax: 0031-79-3318919 tidersign.com...
- Page 6 TIDER TIDER, YOUR BEST SUPPLIER... Color temperature( neutral white-warm white) White/Warm white LED strip Power Adapter M3-3A Color temperature( cold white-neutral white-warm white) Cold white/white/Warm white LED strip Power Adapter M3-3A RGB control RGB strip Power Adapter M3-3A Tel: 0031-79-3411152, 0031-79-3318921 E-mail: info@tidersign.com Spectrumlaan 47-49 2665NM Bleiswijk The Netherlands.
- Page 7 TIDER TIDER, YOUR BEST SUPPLIER... Attention: The product shall be installed and serviced by a qualified person. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. Good heat dissipation will prolong the working life of the controller.
- Page 8 TIDER TIDER, YOUR BEST SUPPLIER... Repair or replacement as provided under this warranty is the exclusive remedy to the customer. LTECH shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty. Any amendment or adjustment to this warranty must be approved in writing by LTECH only. This manual only applies to this model.
