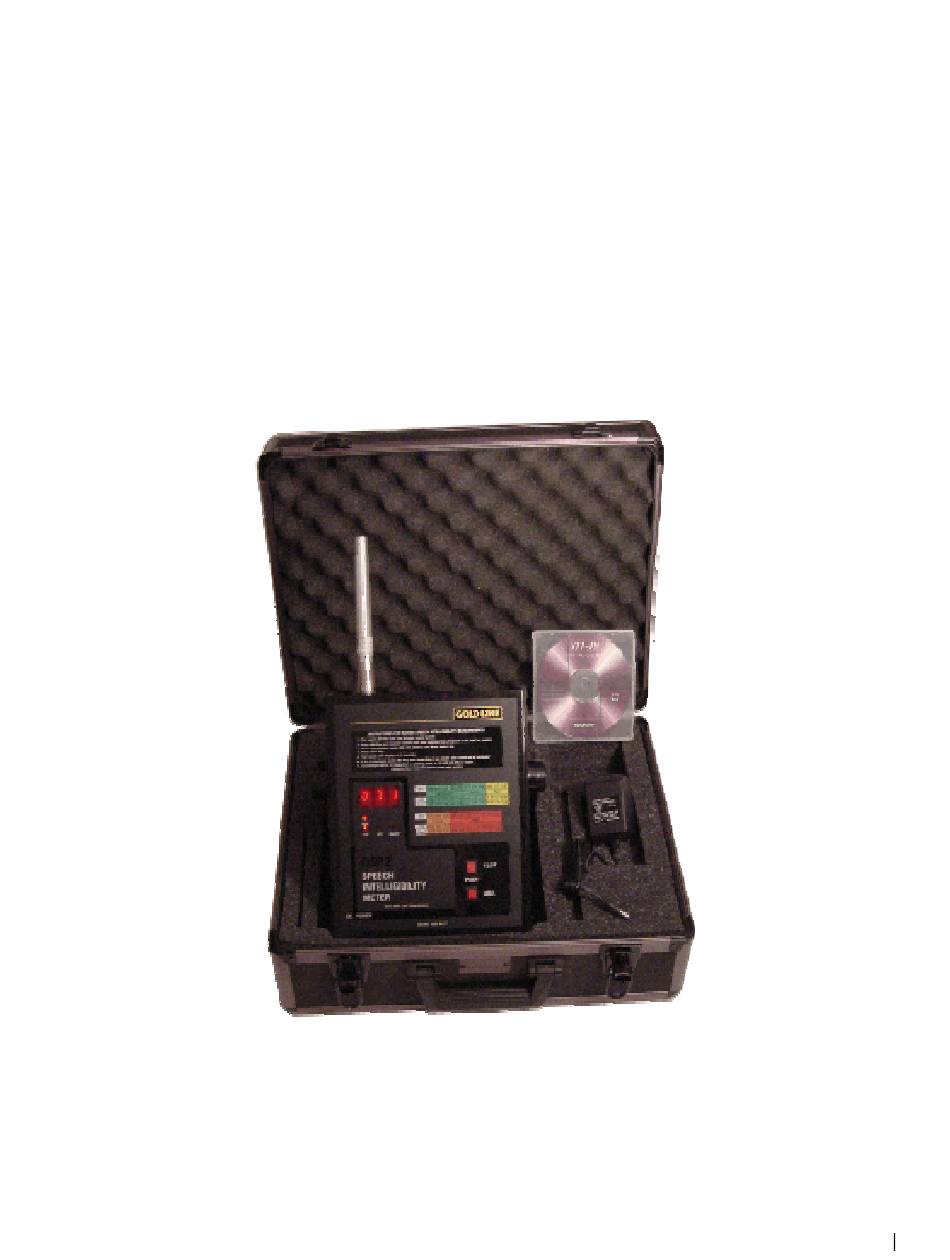

- Page 1 GOLD LINE CONNECTOR 203-938-2588 WWW.GOLD-LINE.COM MODEL DSP2B- INTELLIGIBILITY METER MODEL DSP2BP- INTELLIGIBILITY/PRIVACY METER OPTCVOW PLATINUM SOFTWARE USER'S MANUAL Revision date: M_DSP2 11K3...
- Page 2 Instructions to measure intelligibility using Fire Control Panel with built in CD player without computer DSP2B/BP Analyzer an OPTCVOW Platinum software overview Directions for installing OPTCVOW Platinum software on computer Directions for connecting DSP2B/BP to the computer...
- Page 3 Gold Line DSP2B/BP USER'S MANUAL INDEX CONTINUED Saving Empty Room measurements with CVOW PLATINUM software Saving Occupied Room measurements with CVOW PLATINUM software Creating detailed reports using CVOW PLATINUM software Creating combined reports using CVOW PLATINUM software Editing file manager information...
- Page 4 The Speech Transmission Index (STI) is a quantitative method of measurement covered in the International Electrotechnical Commission (IEC) standard 60268-16. These Gold Line meters require the use of a STI-PA test signal which was developed by TNO Human Factors Research Laboratories in the Netherlands, in conjunction with Bose and Gold Line.
- Page 5 STI measurements can be made without significant training. Once the STI-PA signal has been input to the system under test, a single button push on the DSP2B/BP will produce the STI, which can be converted CIS as specified in IEC standard 60849. The test only requires about 15 seconds.
- Page 6 DSPCIW. UTILITY TO ADD NOISE Both the DSP2B/BP and the DSP30B/BP have a utility to allow you to correct an STI score measured in an empty room, to that which would be obtained with the room occupied. The noise correction calculation requires three pieces of information: 1.
- Page 7 4. Insert analyzer microphone into the meter and turn on (will display the SPL dBA). Place the tip of the DSP2B/BP microphone 1 meter or approximately 39 inches from the Talkbox, facing directly at the loudspeaker and adjust the Talkbox level to 65dBA.SPL 5.
- Page 8 1. Choose an initial room to check the SPL dBA level of your emergency voice evacuation system. 2. Play the system's pre-recorded emergency Tone alert and take the DSP2B/BP to the room that you previously chose. 3. Insert the microphone into the top of the analyzer and turn on the power switch at the bottom of the analyzer.
- Page 9 OPTCVOW PLATINUM software. When the DSP2B is used alone, intelligibility can be tested with the use of the supplied Gold Line STI-PA Test Tone CD and the push of 1 button while walking around the location that is being tested.
- Page 10 1. Connect the serial cable to the USB serial cable adapter and lightly screw together finger tight. 2. Attach male end of the serial cable to the serial port on top of the DSP2B/BP. 3. Attach the USB end of the adapter to the USB port on the computer. (preferably not through a USB hub.)
- Page 11 5. Insert analyzer microphone into the meter and turn on (will display the SPL dBa). Place the tip of the DSP2B/BP microphone 1 meter or approximately 39 inches from the Talkbox, facing directly at the loudspeaker and adjust the Talkbox level to 65dBa.SPL 6.
- Page 12 1. Choose an initial room to check the SPL dBA level of your emergency voice communication system. 2. Play the system's pre-recorded emergency message and take the DSP2B/BP to the room that you previously chose. 3. Insert the microphone into the top of the analyzer and turn on the power switch at the bottom of the analyzer.
- Page 13 1. Choose an initial room to check the SPL dBA level of your emergency voice evacuation system. 2. Play the system's pre-recorded emergency message and take the DSP2B/BP to the room that you previously chose. 3. Insert the microphone into the top of the analyzer and turn on the power switch at the...
- Page 14 NOTE: The DSP2B/BP will automatically start-up and read the SPL dBA measurement on the screen. 4. Check the SPL reading and measure the SPL to confirm that it meets the design requirements Turn off your emergency message on your system.
- Page 15 NOTE: The first step is to verify that your systems CD player is capable of producing the STI-PA test tone accurately. 1. Insert the GOLD LINE STI-PA test tone CD into your systems CD PLAYER. 2. Play the STI-PA CD.
- Page 16 8. The screen will now read a STI score. As long as your score is at least .93 STI your systems CD player is accurate enough for speech intelligibility testing. NOTE: If not already connected, connect the DSP2B/BP to the computer. 9. To make an intelligibility test, place the analyzer microphone in the location to be tested.
- Page 17 ON COMPUTER. OCCUPIED ROOM NOTE: Make sure analyzer is set for STI or CIS depending on your job specs. 1. Open OPTCVOW PLATINUM software and connect DSP2B 2. Click FILE on top left side of computer. 3. Click OPEN. 4. Change “FILES OF TYPE” from CVO FILES to STI FILES.
- Page 18 10. Click SAVE 11. Fill out information in blocks. (Everything will be the same as empty room file.) 12. Click OK. 13. Change file name to match location information adding the word OCCUPIED. 14. Click SAVE. 15. Computer shows MEASURED AND CORRECTED STI SCORE for occupied room. CREATING DETAILED AND COMBINED REPORTS USING OPTCVOW PLATINUM CREATING DETAILED REPORTS...
- Page 19 11. Press the PRINT button on the COMBINED REPORT screen. Evaluating the results - INTELLIGIBILITY The front label of the DSP2B has the basic instructions and the following tables To evaluate the results of the test According to NFPA 72 (appendix), a passing score is .70 CIS / .50 STI or higher.
- Page 20 PRIVACY INDEX MEASUREMENTS REQUIRED EQUIPMENT: TALKBOX (requires 110vac or 8 AA Alkaline or Ni cad batteries) DSP2BP (requires 110vac or 8 AA Alkaline or Ni cad batteries) STI-PA CD test tones (included with DSP2BP & DSP30BP) INSTRUCTIONS TO MEASURE PRIVACY (OPT PI) PI measurements are made in occupied areas, typically with the sound masking system turned on, and set to its normal levels.
- Page 21 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
