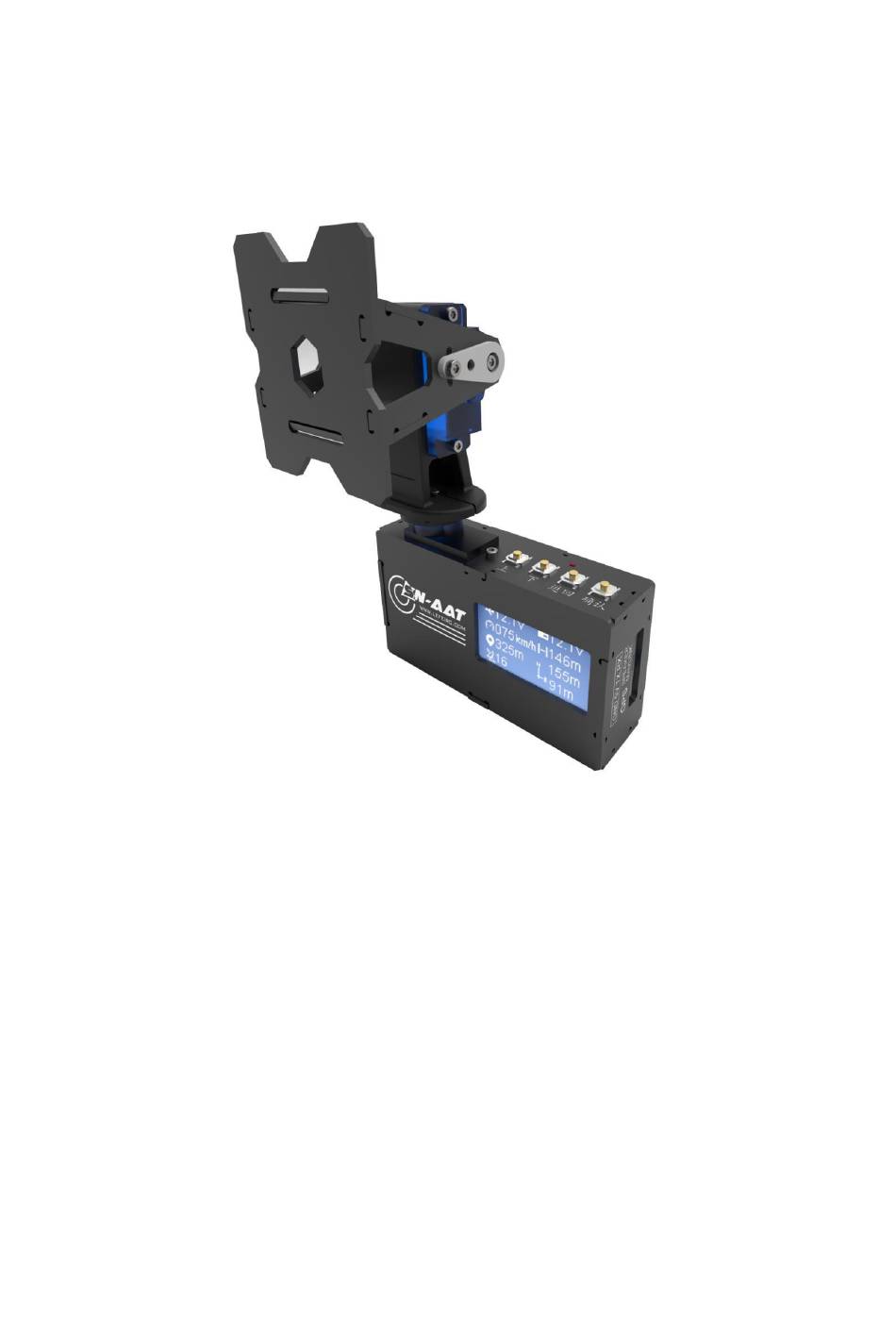

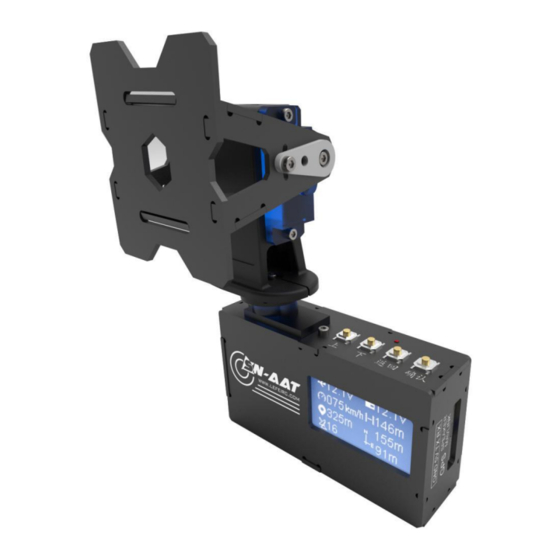

SN-AAT
AAT - Auto Antenna Tracker.
SN-AAT uses an efficient video signal superposition algorithm,SN-L(Airborne
module) superimposes information such as GPS onto video,then transmits the
video to AAT through the video transmitter,completes information
encoding-transmission-decoding;AAT aligns the antenna with the aircraft in
real time based on the acquired aircraft position information,and outputs its
information according to mavlink protocol or screen output.
Advertisement
Table of Contents
Related Manuals for AFPV SN-AAT
Summary of Contents for AFPV SN-AAT
- Page 1 SN-AAT AAT - Auto Antenna Tracker. SN-AAT uses an efficient video signal superposition algorithm,SN-L(Airborne module) superimposes information such as GPS onto video,then transmits the video to AAT through the video transmitter,completes information encoding-transmission-decoding;AAT aligns the antenna with the aircraft in real time based on the acquired aircraft position information,and outputs its information according to mavlink protocol or screen output.
- Page 2 GPS and Bluetooth are optional ！ Features Compact design,easy to use,easy to carry. Standard video transmission channel. Support MAVLINK protocol,real-time path display with GCS such as QGC. Support compass and gyroscope. Support GPS,dynamic positioning. Automatically select and save the takeoff position. ...
- Page 3 Precautions 1. Operating Voltage:2S-4S(7-16v). 2. Vedio Input:Must be connected during normal work. 3. GPS:Plug and play. Compass:Try to avoid disturbing the compass. Upgrade Wiring Conditioning Moudle...
- Page 4 KEY OPERATION Switch menu;Select menu;Hold for 3 seconds to release,switch offline/tracking mode. DOWN Switch menu;Select menu. ENTER Enter menu;Hold for 3 seconds to release,compass calibration. BACK Back to previous. MENU 1.Parameter menu:includes two pages switch by UP and DOWN. 2.Setting menu:as follows. Item Meaning PORT...
- Page 5 SERVO AND BIAS servo mode 1. Tracking：AAT real-time automatic control servo. 2. Offline：Keep the last moment;If the signal is lost or the AAT tilt angle is too large,it will automatically enter offline mode. *Please try to ensure that the device is stationary when powering up. servo bais 1.
- Page 6 PRE-FLIGHT CHECK GPS connected GPS not connected FC positioned and AAT connected Place the aircraft near the AAT (within 3m) and take off normally can take off. when the FC is positioned. FIRMWARE Tools required for upgrading include software consistent with SN_L,use the upgrade wire that comes with AAT.
