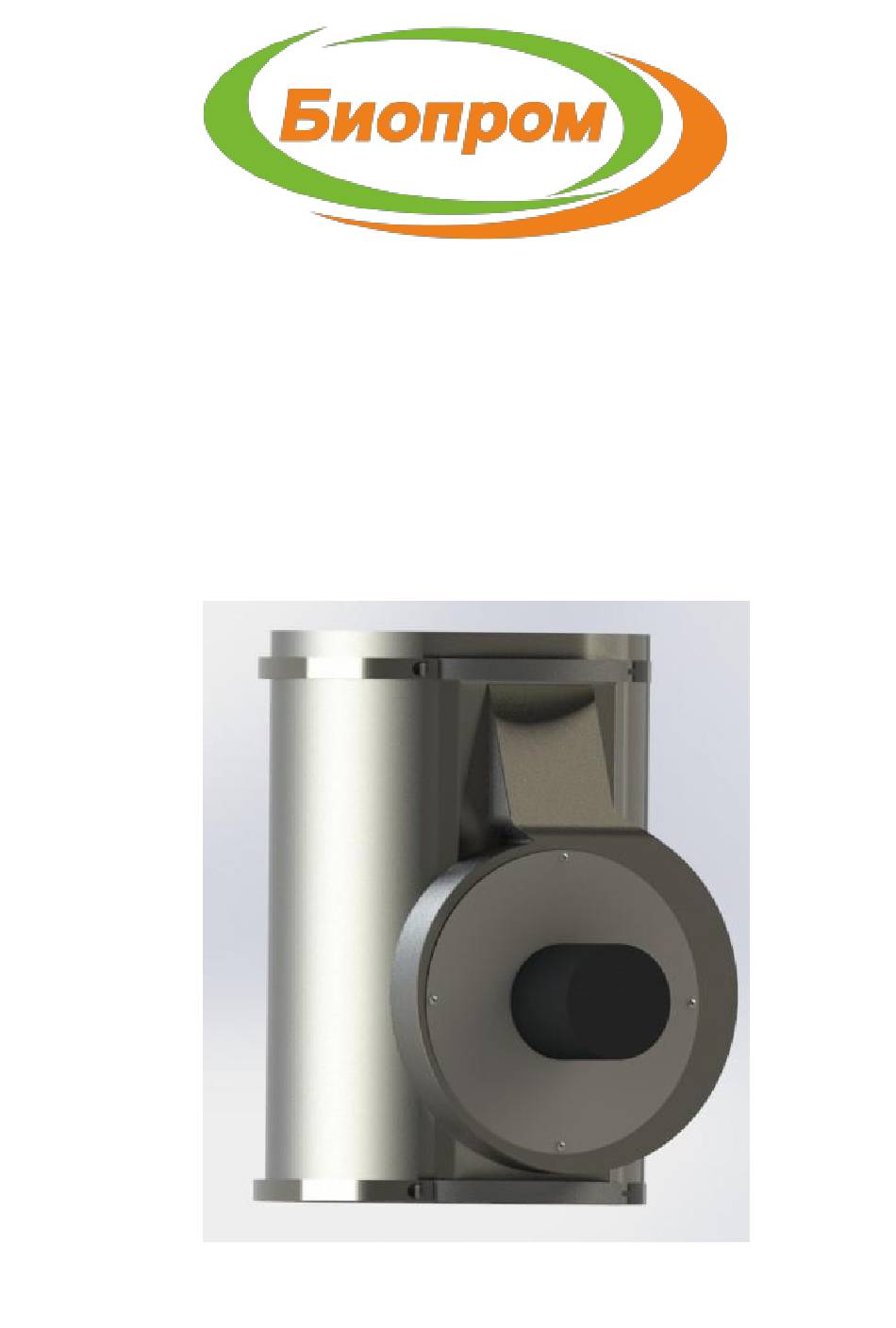

- Page 1 Smoke Exhauster H-0220 For Chimney Flues with Diameter of 220 mm Operation Manual КБХ EX001.0220.00.00 РЭ...
-
Page 2: Table Of Contents
Contents INTRODUCTION ................................3 1 PRODUCT DESCRIPTION ................................….3 1.1 Purpose ................................3 1.2 Technical Characteristics .........................……………………………… 5 2 DELIVERY SET .................................6 3 OPERATION CONCEPT .................................6 4 SAFETY MEASURES .................................6 5 INSTALLATION .................................6 6 TECHNICAL MAINTENANCE ................................7 6.1 Technical maintenance procedure ................................ -
Page 3: Introduction
Introduction The present Operation Manual EX0220.00.00 is intended for familiarizing consumers with the technical data for Exhauster H-0220 Smoke Exhauster as well as with instructions on installation, preparation for work, and technical maintenance. Prior to start of work and use of the Smoke Exhauster it is necessary to follow the operating procedures issued by the manufacturing plants for the supplied equipment in addition to this Operation Manual. - Page 4 Picture 1 1 - Fan R2e160-BG34-01. 2 – Smoke Exhauster H-0220. 3 – chimney flue 4 – tie rods.
-
Page 5: Technical Characteristics
Picture 2 Smoke Exhauster Overall Dimensions 1.2 Technical Characteristics Basic parameters of Smoke Exhauster H-0220 are shown in Table 1: Table 1- Smoke Exhauster Performance Data Parameter Value Productivity rate Power intake 57 Watt Weight 3 kg (5 kg*) Fan rpm adjustment Yes (10-100%) (_*) –... -
Page 6: Delivery Set
-1 ea. 3 Operation Concept The Smoke Exhauster H-0220 is connected to the control unit, and this control unit controls the smoke exhauster operation process. The Smoke Exhauster is equipped with a blower of hot air circulation of R2e160-BG34-01AC current what allows operating the unit easily. -
Page 7: Technical Maintenance
Picture 3 Smoke Exhauster as a set Further, the fan is connected to the automatic equipment and the Smoke Exhauster is adjusted for proper operation. 6 Technical Maintenance 6.1 Technical maintenance procedure Switch off the smoke exhauster and let it cool down. Disconnect the power cable. -
Page 8: Storage Instructions
a sealant heat-resistant cardboard between the fan and the smoke exhauster. It is required to verify unhindered rotation of fan blades and then complete items mentioned in Part 5 Installation. As well as replacement of sealant material shall be carried out per recommendations of the manufacturing plant. Technical maintenance shall be performed from time to time as dirt is accumulated, once per two months is average normal period for the technical maintenance. -
Page 9: Warranty Obligations
(lightning strike, fire, flood, submergence, etc.). The list of authorized representatives of the manufacturing plant can be found on website of LTD «Bioprom Company Kharkov» bioprom.ua. The manufacturer reserves the right to incorporate changes into the construction (smoke exhauster configuration) that do not worsen performance data. -
Page 10: Warranty Ticket
WARRANTY TICKET Smoke Exhauster Model Exhauster H-0220 Product Number _____________________ Date of Sale _____________________ Name of Company-Seller _____________________ Date of installation/putting into operation _____________________ Owner details Installer name and signature Name _____________________ _____________________ Tel._______________________ _____________________ City ______________________ _____________________ Street/House _______________... - Page 11 Record on warranty repair Defect description : _______________________________________________________________ Reason for failure : _______________________________________________________________ _______________________________________________________________________________ Repair work performed : __________________________________________________________ _______________________________________________________________________________ Name of repair company : __________________________________________________ License # ____________ Expert ________________ Repair Date __________________ stamp Record on warranty repair Defect description : _______________________________________________________________ Reason for failure : _______________________________________________________________ _______________________________________________________________________________ Repair work performed : __________________________________________________________...
-
Page 12: Records On Technical Maintenance Performed
RECORDS ON TECHNICAL MAINTENANCE PERFORMED... -
Page 13: Ticket On Putting Into Operation
TICKET OF PUTTING INTO OPERATION Smoke Exhauster Model Exhauster H-0220 Inv. # _________________ Date of Purchase _________________ Date of Installation _________________ User Details __________________________________________________________________ __________________________________________________________________ ____________ (Name, tel., e-mail) __________________________________________________________________ __________________________________________________________________ ____________ Detailed info of the company that performed installation... -
Page 14: For Notes
FOR NOTES...
